Lindy 50m Cat.6 HDMI 4K60 and IR Extender with PoC and Loop Out
GTIN: 4002888382052
50m Cat.6 HDMI 4K60 and IR Extender with PoC and Loop Out
The Lindy Cat.6 HDMI 4K60 and IR Extender with PoC is an effective, reliable solution for extending high quality 4K HDMI signals over distances up to 50m (164.04ft) with standard Cat.5e/6 network cable. Support for the HDMI 2.0 18G specification allows the transmission of highly detailed 4K Ultra HD resolutions. With support for High-Dynamic Range, video content can be seen with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut, perfect for a true home cinema experience or eye-catching digital signage in retail settings. HDCP 2.2 compliance allows 4K video content from copy protected sources such as Blu-Ray movies, media players and streaming services to be viewed without compatibility issues. Support for lossless audio formats including DolbyTrueHD and DTS-HD adds powerful multi-channel sound to video content, providing an enhanced experience and sense of realism for the viewer.

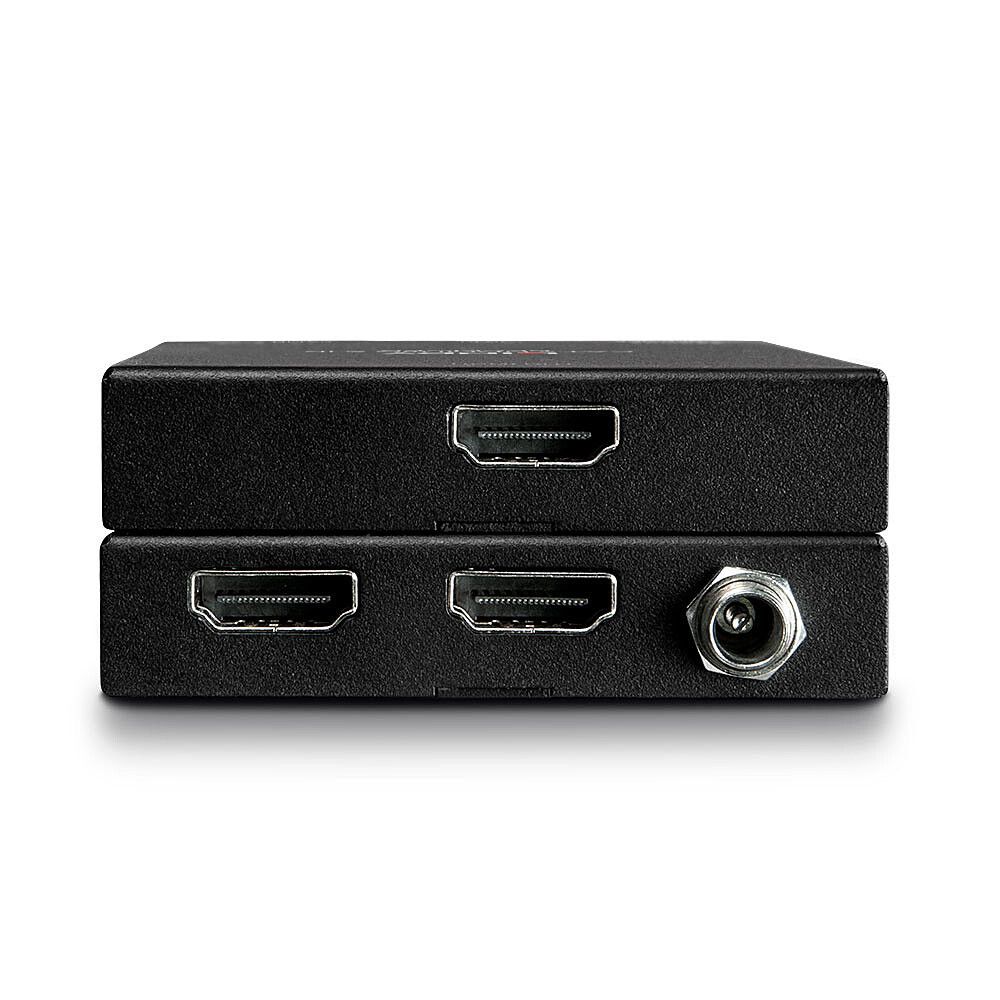

The extender features an HDMI loop-through output on the transmitter which allows for simultaneous viewing using local and remote displays. This versatility provides a suitable solution for use in various scenarios such as educational presentation systems, home cinema, entertainment systems, or trade shows. The built in EDID dip switch enables the user to control which EDID is taken from either display, making installation and configuration simple ensuring maximum compatibility with HDMI displays and projectors. PoC allows both power and data signals over a Cat.6 cable in a point to point configuration, adding flexibility as only one power supply is required for both the transmitter and receiver units. Ideal when power outlets are limited.
Featuring IR Pass-through, the source equipment can be seamlessly controlled from the remote displays side of the installation using compatible infrared remote controls. This provides simple and complete control for the user.
Please note: This product is not designed to be used in conjunction with active network equipment and must only be used in a point to point connection.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 38205 |
| Ean | 4002888382052 |
| Modified on | 19-10-2019 |
| Product title | Lindy 50m Cat.6 HDMI 4K60 and IR Extender with PoC and Loop Out |
| Long Product Name | 50m Cat.6 HDMI 4K60 and IR Extender with PoC and Loop Out |
| Product specifications | FeaturesType* AV transmitter & receiver Maximum resolution* 3840 x 2160 pixels Cable types supported Cat5e, Cat6 Maximum transfer distance 50 m Chipset SIL9396, SIL9630 Maximum refresh rate 60 Hz Extended display identification data (EDID) Yes IR pass-through Yes HDCP pass-through Yes Bandwidth 18 Gbit/s HDCP Yes Material Metal Product colour Black Certification CE, FCC, REACH & California Proposition 65 Ports & interfacesConnectivity technology* Wired RJ-45 input ports 1 RJ-45 output ports 1 HDMI in 1 Number of HDMI outputs 2 HDMI version 2.0 USB ports quantity 2 USB connector type Micro-USB Remote (IR) input 1 Remote (IR) output 1 DC-in jack Yes PowerOperating voltage 24 V Input current 1 A Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 20 - 90% Weight & dimensionsReceiver dimensions (WxDxH) 70 x 15 x 97 mm Receiver weight 151 g Transmitter dimensions (WxDxH) 70 x 15 x 97 mm Transmitter weight 156 g Packaging dataPackage width 220 mm Package depth 70 mm Package height 130 mm Package weight 605 g Package type Box Packaging contentCables included IR Manual Yes Technical detailsSustainability certificates RoHS Compliance certificates RoHS |
| Essential qualities |
|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Connectivity technology | Wired |
