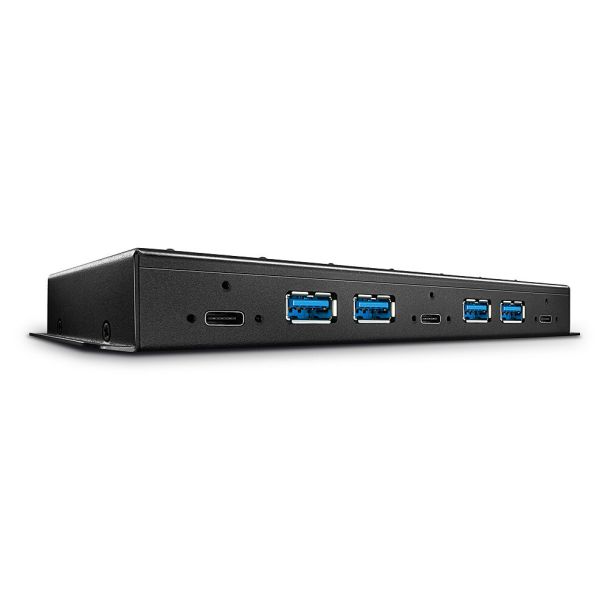

The Lindy 7 Port USB 3.2 Gen 2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.2 Gen 2 speeds up to 10 Gbps. This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection. With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.
Each port features individual short circuit protection - and all 7 USB ports support the Battery Charging specification 1.2 with a total charging power of 40 Watts for all 7 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 43275 |
| Ean | 4002888432757 |
| Modified on | 19-10-2019 |
| Product title | Lindy 7 Port USB 3.2 Gen 2 Metal Hub |
| Long Product Name | 7 Port USB 3.2 Gen 2 Metal Hub |
| Product specifications | Ports & interfacesHost interface* USB 3.2 Gen 2 (3.1 Gen 2) Type-A Hub interfaces* USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 3 Ports quantity* 7 DC-in jack Yes FeaturesData transfer rate* 10000 Mbit/s Product colour Black Housing material Metal Certification CE, FCC, RoHS, REACH, California Proposition 65 PowerInput voltage 16 V Input current 3 A Weight & dimensionsWidth 184.5 mm Depth 64.3 mm Height 20 mm Weight 700 g Packaging dataQuantity per pack 1 pc(s) Package width 260 mm Package depth 180 mm Package height 70 mm Package type Carton Operational conditionsOperating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C |
| Essential qualities |
|
| Ports quantity | 7 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-A |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Data transfer rate | 10000 Mbit/s |
