Lindy 70m C6 HDBaseT HDMI 18G & IR Extender Receiver
GTIN: 4002888382144
70m Cat.6 HDMI 4K60, IR & RS-232 HDBaseT Receiver with PoC, Receiver
Distributes HDMI resolutions up to 70m over Cat.6 network cable via HDBaseT technology
Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
RS-232 and CEC pass-through and bi-directional IR for simple control
Supports PoC (Power over Cable), requiring a power supply connection from only one side of the installation
2 year warranty
The Lindy C6 HDBaseT HDMI 4K60 & IR Extender, Receiver is one part of a high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.
By combining this receiver unit with a compatible Lindy HDBaseT transmitter, this solution ensures reliable transmission up to 70m.
The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:
70m: 1920x1080@60Hz 4:4:4 8bit
40m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.

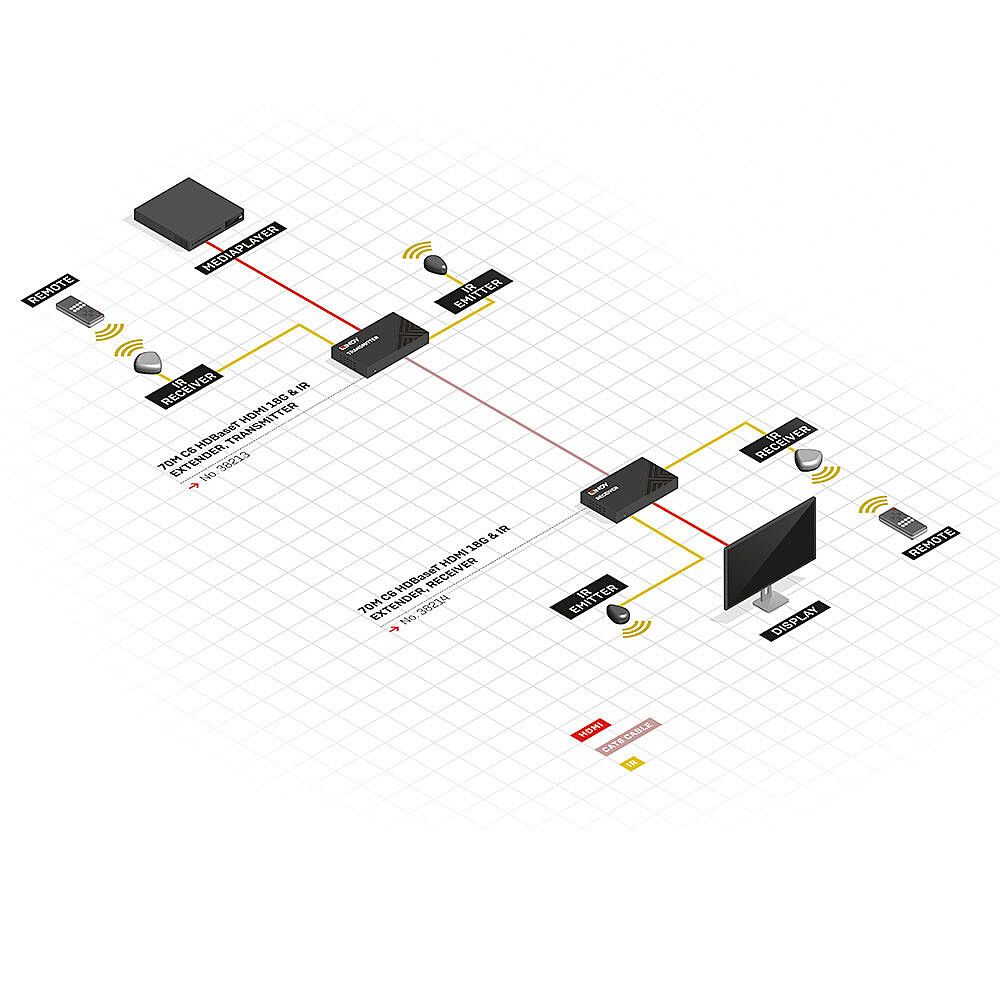

Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user.
HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 38214 |
| Ean | 4002888382144 |
| Modified on | 14-03-2020 |
| Warranty | 2 years |
| Product title | Lindy 70m C6 HDBaseT HDMI 18G & IR Extender Receiver |
| Long Product Name | 70m Cat.6 HDMI 4K60, IR & RS-232 HDBaseT Receiver with PoC, Receiver |
| Product specifications | FeaturesType* AV receiver Maximum resolution* 3840 x 2160 pixels Cable types supported Cat6 Maximum transfer distance 70 m Chipset VS010 Extended display identification data (EDID) Yes CEC pass-through Yes LED indicators Yes Bandwidth 18 Gbit/s HDCP Yes Material Metal HDCP version 2.2 Product colour Black Certification CE, FCC, REACH, California Proposition 65 Ports & interfacesRJ-45 input ports 1 Number of HDMI outputs 1 USB ports quantity 1 USB version 2.0 USB connector type Mini-USB B RS-232 input ports 1 Remote (IR) input 1 Remote (IR) output 1 DC-in jack Yes PowerOperating voltage 24 V Input current 1 A Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 20 - 90% Weight & dimensionsWidth 157 mm Depth 90 mm Height 20 mm Weight 345 g Packaging dataPackage width 220 mm Package depth 130 mm Package height 70 mm Package weight 847 g Package type Box Packaging contentCables included AC, IR Manual Yes Technical detailsSustainability certificates RoHS Compliance certificates RoHS |
| Essential qualities |
|
| Type | AV receiver |
| Maximum resolution | 3840 x 2160 pixels |
