Lindy 70m Cat.6 4 Port HDMI 4K30 and IR Splitter Extender with Loop Out
GTIN: 4002888381550
70m Cat.6 4 Port HDMI 4K30 and IR Splitter Extender with Loop Out
The Lindy 70m Cat.6 4 Port HDMI and IR Splitter Extender is a simple to use plug and play solution that allows users to extend an HDMI signal up to 70m and then distribute that signal to four displays using low cost Cat.6 UUTP cable (not included). For added convenience IR signals (20-60kHz) can also be extended using the supplied IR receiver and emitter cables.
Supporting resolutions up to 4K30, including 1080p 3D, the Splitter Extender is designed for use in AV and digital signage applications for a variety of settings such as home, education, business, retail and healthcare.

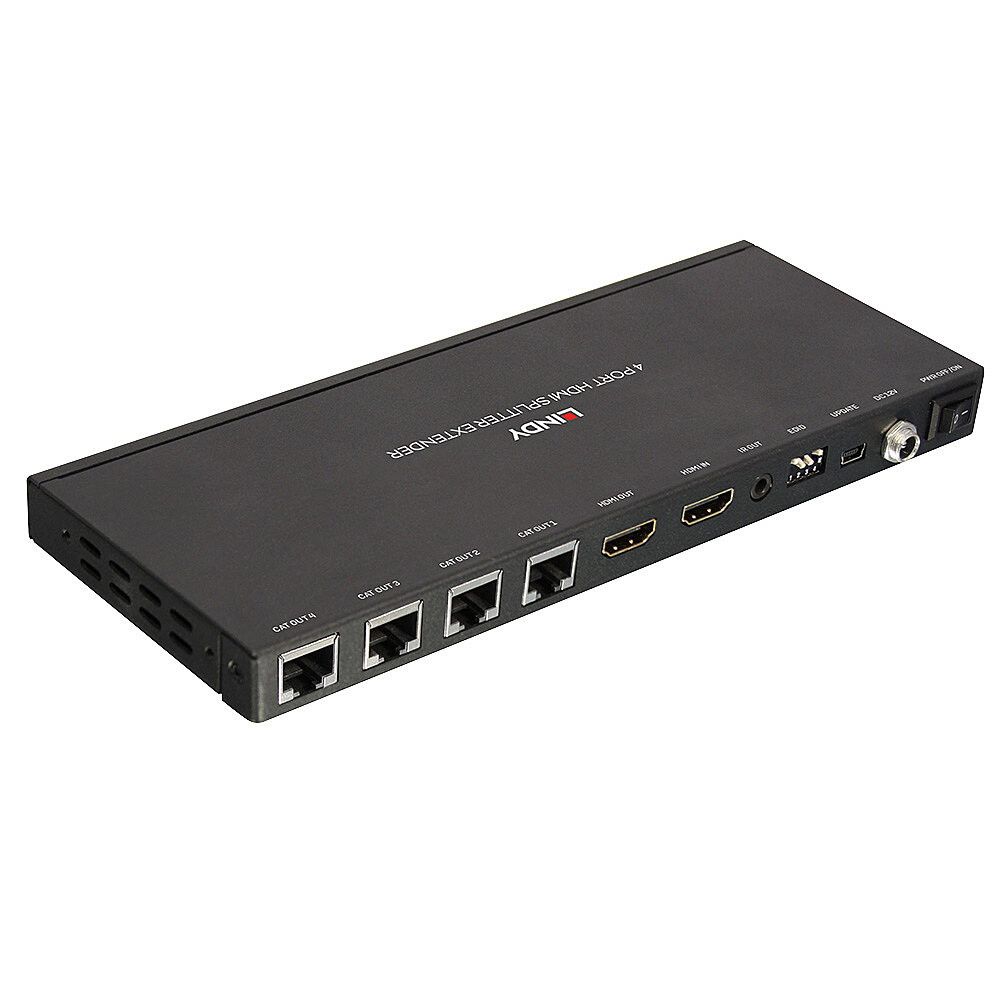

An integrated HDMI loop-through output on the transmitter unit enables simultaneous viewing so that a local display can be connected for monitoring, or to create an additional viewing zone. For larger installations, the HDMI loop-through port can also be used to cascade up to 3 transmitters allowing up to 12 displays to be connected to a single source.
The HDMI loop-through port also allows the Splitter Extender to clone the EDID of a connected display. An integrated EDID emulation system provides 9 EDID presets for ultimate compatibility with a variety of EDID enabled devices.
Power over Cable (PoC) functionality provides power for the complete installation using only a single power supply connected to the transmitter - a perfect solution for retro fit installations where receivers may be located away from a mains power supply. The power supply is connected via a screw type DC jack, providing a secure and reliable connection, ideal for installations where accidental disconnections could occur. For added convenience the Splitter Extender's slim design and integrated mounting brackets make it easy to install in limited spaces behind modern flat screen displays.
Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 38155 |
| Ean | 4002888381550 |
| Modified on | 18-02-2018 |
| Product title | Lindy 70m Cat.6 4 Port HDMI 4K30 and IR Splitter Extender with Loop Out |
| Long Product Name | 70m Cat.6 4 Port HDMI 4K30 and IR Splitter Extender with Loop Out |
| Product specifications | FeaturesType* Transmitter & receiver Connectivity technology* Wired Maximum transfer distance 50 m Cable types supported Cat6 Maximum digital resolution 1920 x 1080 pixels Product colour Black LED indicators Yes Certification CE, FCC, RoHS, REACH TransmitterTransmitter video port type HDMI Transmitter local video port Yes Transmitter local video port type HDMI Number of displays supported 4 RJ-45 ports quantity (transmitter) 4 ReceiverReceiver local video port type HDMI RJ-45 ports quantity (receiver) 1 PowerAC adapter output voltage 12 V AC adapter output current 2.5 A Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 20 - 90% Weight & dimensionsTransmitter width 11.8 cm Transmitter depth 25 cm Transmitter height 3.2 cm Transmitter weight 443 g Receiver width 4.9 cm Receiver depth 8.1 cm Receiver height 2.5 cm Receiver weight 131 g Packaging contentAC adapter included Yes Cables included IR Manual Yes Logistics dataHarmonized System (HS) code 84733080 |
| Essential qualities |
|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
