Lindy 70m Cat.6 HDMI 4K60, IR and RS-232 HDBaseT UK Wall Plate Extender, Transmitter
GTIN: 4002888383479
Lindy 70m Cat.6 HDMI 4K60, IR and RS-232 HDBaseT UK Wall Plate Extender, Transmitter, 3840 x 2160 pixels, AV transmitter, 70 m, Wired, Black, White, HDCP

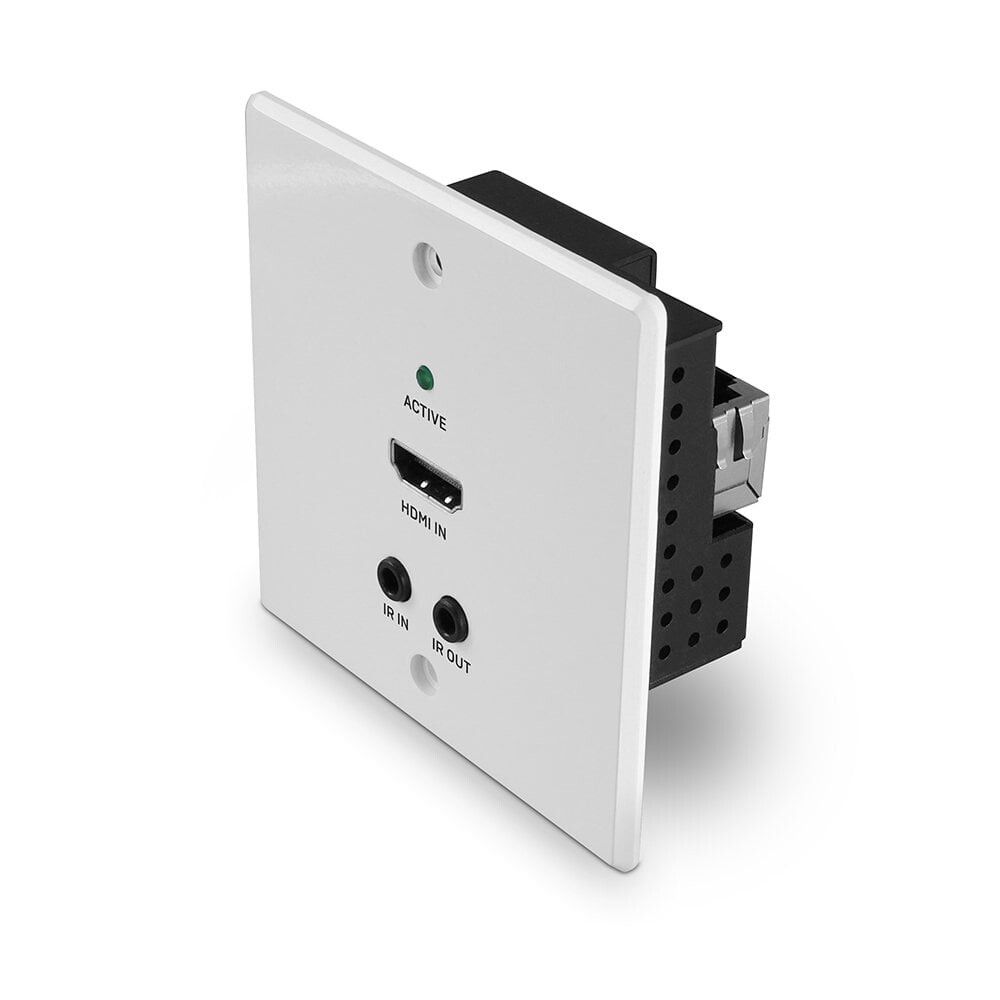

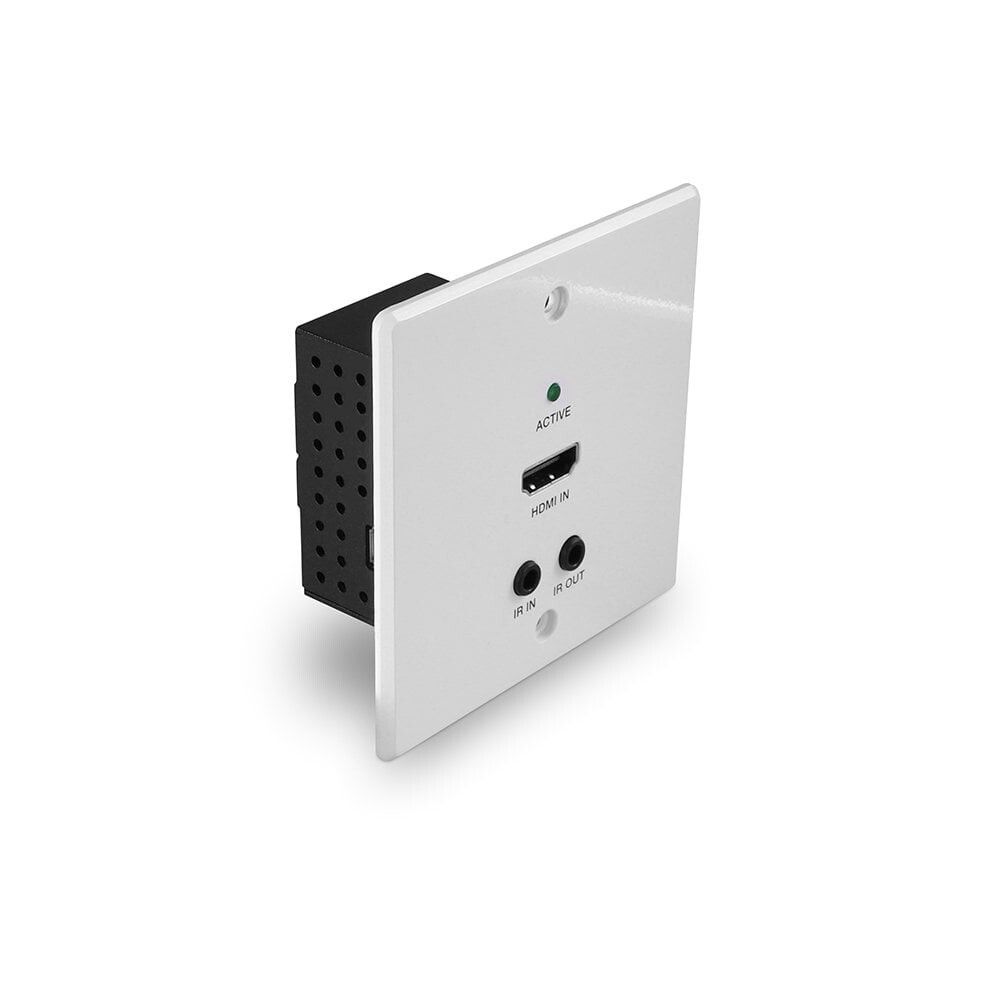

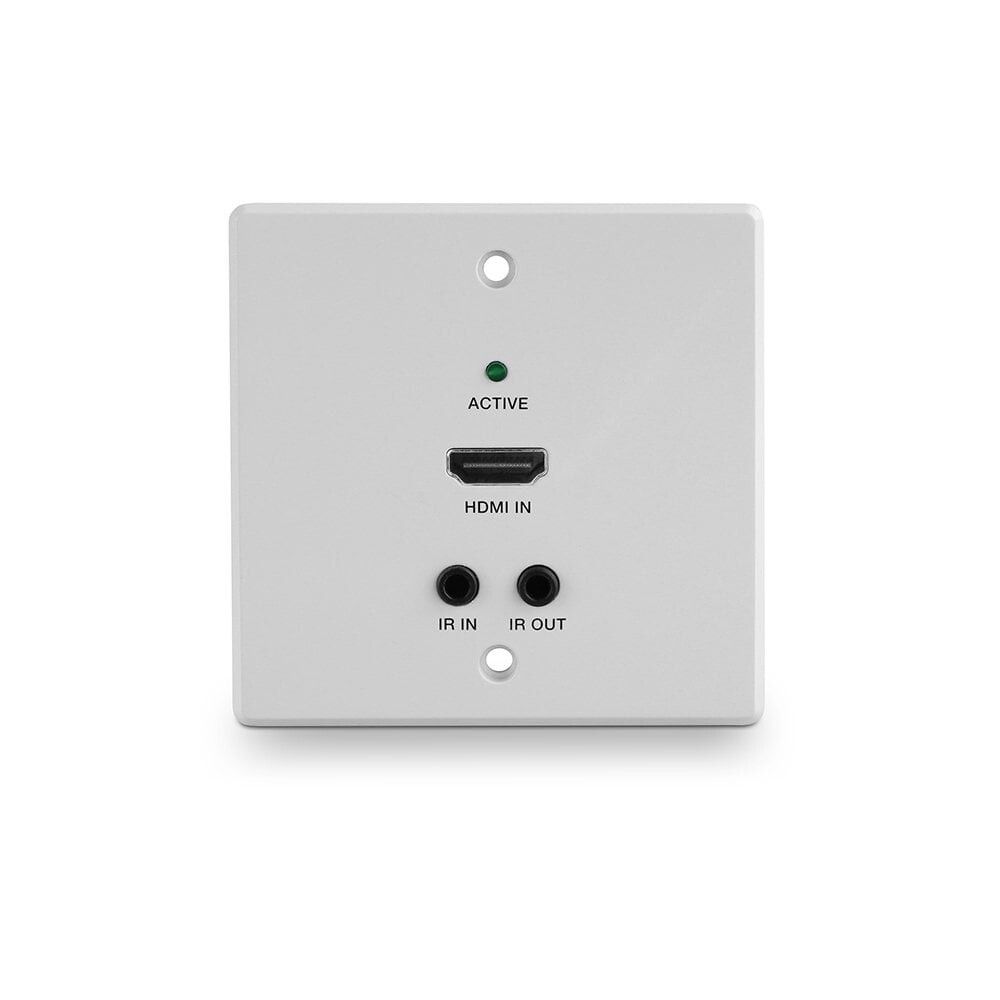

The Lindy Cat.6 HDBaseT HDMI 4K60 Wall Plate Transmitter is one part of a high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.
By combining this Transmitter unit with a compatible HDBaseT Receiver such as Lindy No. 38214 and 38342, this solution ensures reliable transmission up to 70m.
The following distance and resolution combinations are possible when using high quality Cat.6 or above U/UTP or F/UTP cable:
70m: 1920x1080@60Hz 4:4:4 8bit40m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
PoC (Power over Cable) functionality with On/Off switch provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at one side of the installation.

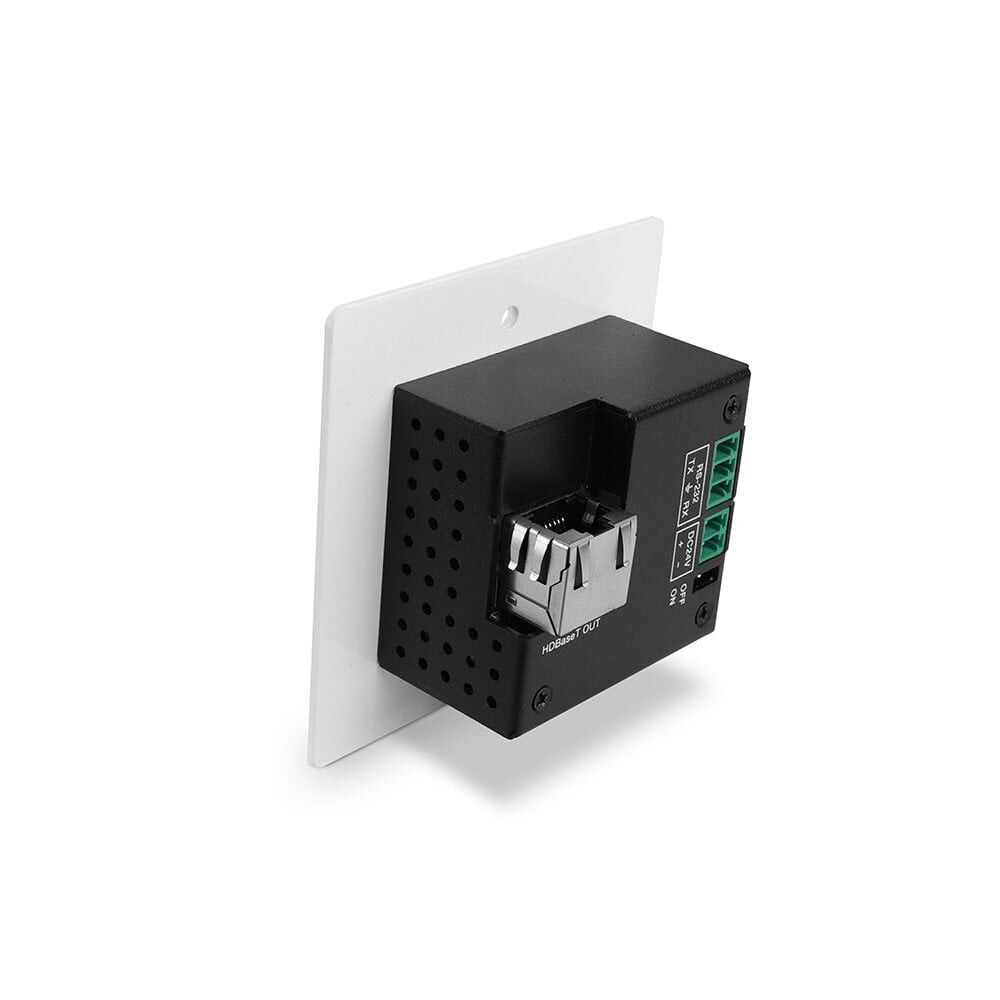

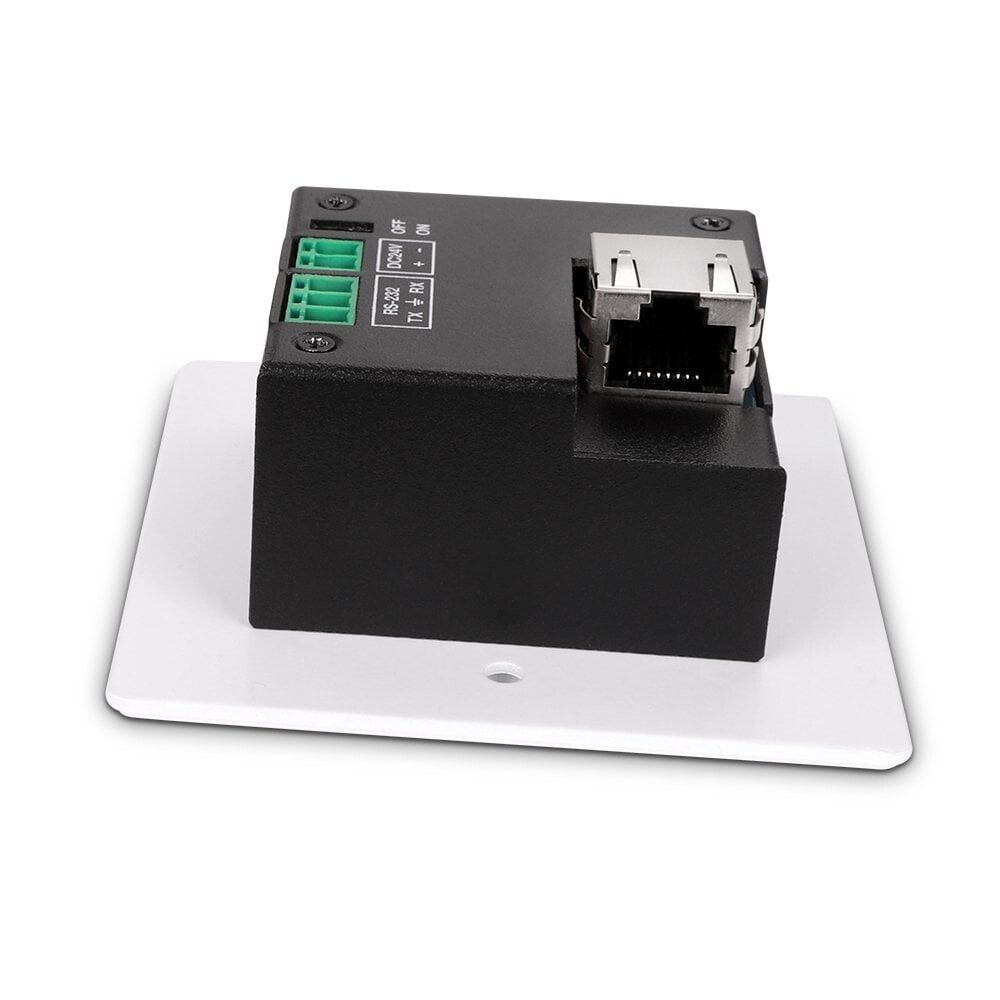

Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. This extension system allows for complete and simple control for the user providing also RS-232 port via terminal block on the rear side of the wall plate.
HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Please Note: the quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 or above cable. Using a different cable type, introducing couplers or patch panels may result in a reduction of possible distances.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 38347 |
| Ean | 4002888383479 |
| Modified on | 22-07-2023 |
| Product title | Lindy 70m Cat.6 HDMI 4K60, IR and RS-232 HDBaseT UK Wall Plate Extender, Transmitter |
| Long Product Name | 70m Cat.6 HDMI 4K60, IR and RS-232 HDBaseT UK Wall Plate Extender, Transmitter |
| Product specifications | FeaturesType* AV transmitter Maximum resolution* 3840 x 2160 pixels Cable types supported Cat6 Maximum transfer distance 70 m Chipset VS010 Maximum refresh rate 60 Hz Extended display identification data (EDID) Yes RS-232 pass-through Yes Bidirectional Yes Infrared (IR) frequency range 20 - 60 kHz Bandwidth 18 Gbit/s On/off switch Yes HDCP Yes Material Metal Wall mountable Yes HDCP version 2.2 Product colour Black, White Certification California Proposition 65 Ports & interfacesConnectivity technology* Wired RJ-45 output ports 1 HDBaseT port Yes HDMI in 1 HDMI version 2.0 RS-232 output ports 1 3.5 mm (1/8-inch) in Yes 3.5 mm (1/8-inch) out Yes PowerPower source type DC PowerOperating voltage (transmitter) 24 V Output current 1 A Power requirements 24VDC 1A Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 20 - 90% Weight & dimensionsWidth 86 mm Depth 38 mm Height 86 mm Weight 390 g Packaging dataQuantity per pack 1 pc(s) Package width 152 mm Package depth 95 mm Package height 133 mm Package weight 540 g Package type Box Packaging contentManual Yes Packaging content HDMI Transmitter
Multi-country Power Supply (UK, EU, US & AUS)
IR Emitter Cable, 1.5m
IR Receiver Cable, 1.5m
3-Pin Terminal Block
2-Pin Terminal Block
Lindy Manual Technical detailsSpecial features Bi-directional IR, PoC Sustainability compliance Yes Sustainability certificates CE, Federal Communications Commission (FCC), RoHS, UKCA Warranty period 2 year(s) Compliance certificates CE, Federal Communications Commission (FCC), RoHS, UKCA |
