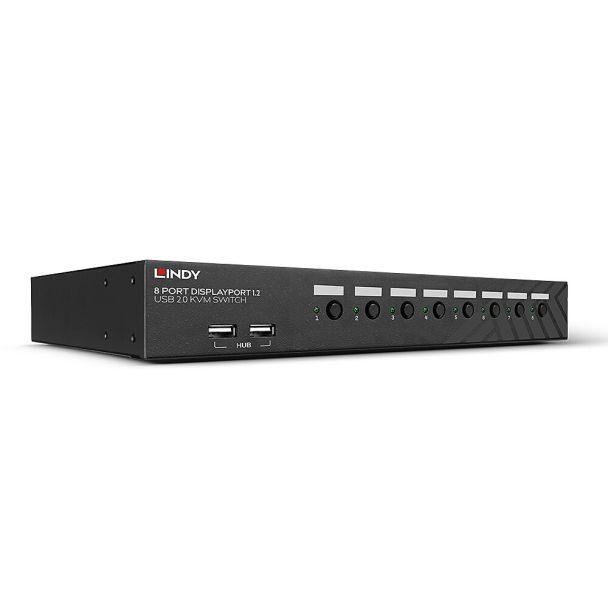

Lindy 8 Port DisplayPort 1.2, USB 2.0 and Audio KVM Switch
GTIN: 4002888395403
8 Port DisplayPort 1.2, USB 2.0 and Audio KVM Switch
A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.
This advanced KVM Switch has been designed for use with PCs and Macs. It features DisplayPort video ports and a two port USB 2.0 hub for connecting and sharing peripherals. With audio support, you can also connect speakers or headsets.
The switch occupies only a single 1U space in a 19andrdquo; rack and supports screen resolutions of up to 4K Ultra HD 60Hz, great for graphical content in gaming setups, video editing or controlling multiple workstations. It provides 2 simple switching modes, via keyboard hotkeys and front panel buttons.
A local console can be connected to the 2 USB and DP ports on the rear panel while the built-in 2 port USB 2.0 hub saves money on requiring additional devices by sharing peripherals between the connected computers. The unique switching arrangement allows the USB hub to be switched independently of the PCs for uninterrupted printing, scanning or external drive access. Options can be accessed only via keyboard hotkeys.
LED indicators show the status of the selected channel.
Please Note: connection cables are not included. DisplayPort, USB A to B, and 3.5mm audio cables are required for each connected computer. The maximum supported distance for USB, using standard cables, is 5m. For distances over 5m, use a Lindy USB Active Extension Cable. MST hubs are not supported.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 39540 |
| Ean | 4002888395403 |
| Product colour | Black |
| Rack mounting | Yes |
| Modified on | 14-10-2021 |
| Product title | Lindy 8 Port DisplayPort 1.2, USB 2.0 and Audio KVM Switch |
| Long Product Name | 8 Port DisplayPort 1.2, USB 2.0 and Audio KVM Switch |
| Product specifications | Ports & interfacesNumber of computers controlled* 8 Keyboard port type* USB Mouse port type* USB Video port type* DisplayPort DisplayPorts quantity 9 USB 2.0 Type-B ports quantity 8 Console ports* 3.5mm headphone, DisplayPort, USB A Console USB ports quantity 2 Audio connections Yes DC-in jack Yes PerformanceHD type* 4K Ultra HD Maximum resolution* 3840 x 2160 pixels Video bandwidth 60 Hz DesignRack mounting* Yes Rack capacity 1U DesignProduct colour* Black PowerOutput voltage 9 V Output current 2 A Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensionsWidth 300 mm Depth 164 mm Height 44 mm Weight 1.53 kg Logistics dataHarmonized System (HS) code 85176200 |
| Essential qualities |
|
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
