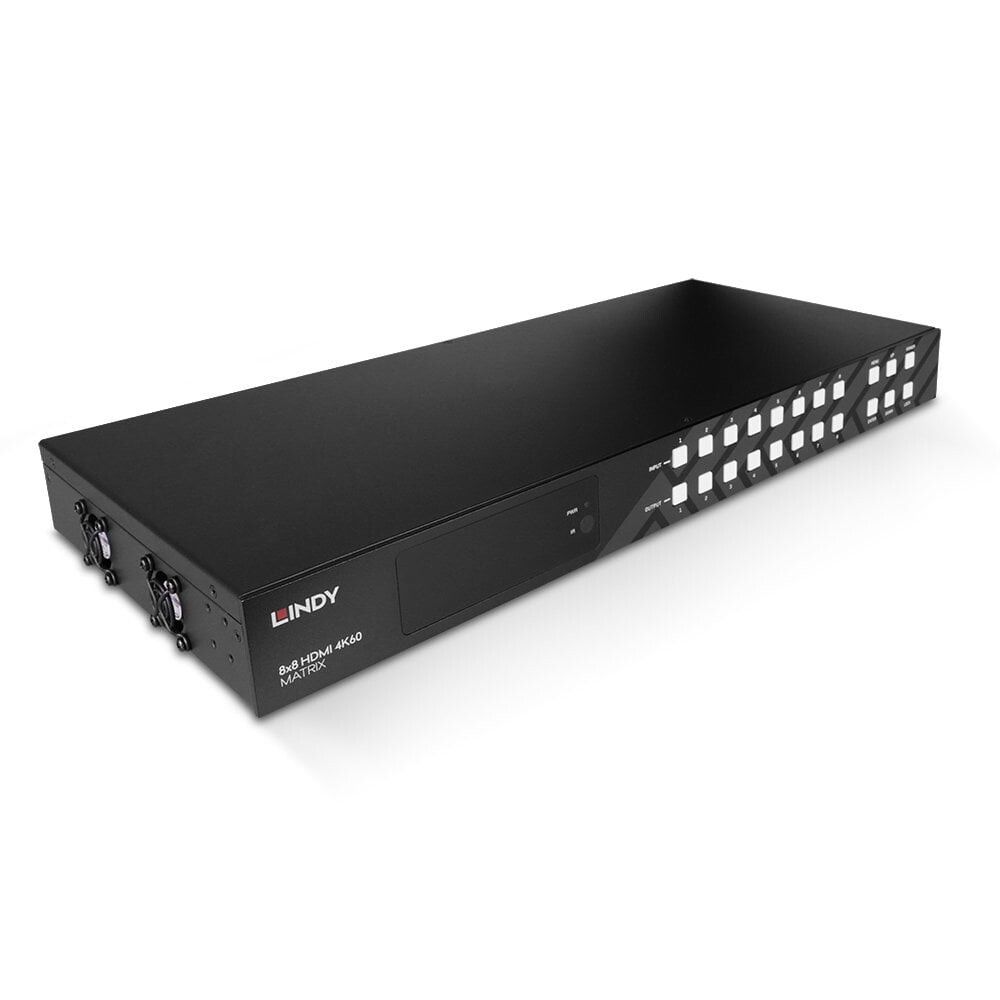

Lindy 8x8 HDMI 4K60 Matrix
GTIN: 4002888383349
8x8 HDMI 4K60 Matrix
Matrix Switches are premium solutions for distributing content from multiple source devices to multiple displays. The Lindy 8x8 HDMI 4K60 Matrix supports HDMI 2.0b 18G signals, allowing for the transmission of clear 4K Ultra HD 60Hz resolutions. Additional support for High Dynamic Range ensures video content is displayed with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for digital signage displays in retail, creating informational multi-display setups in education, or distributing content in commercial installations such as cinemas. HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players.

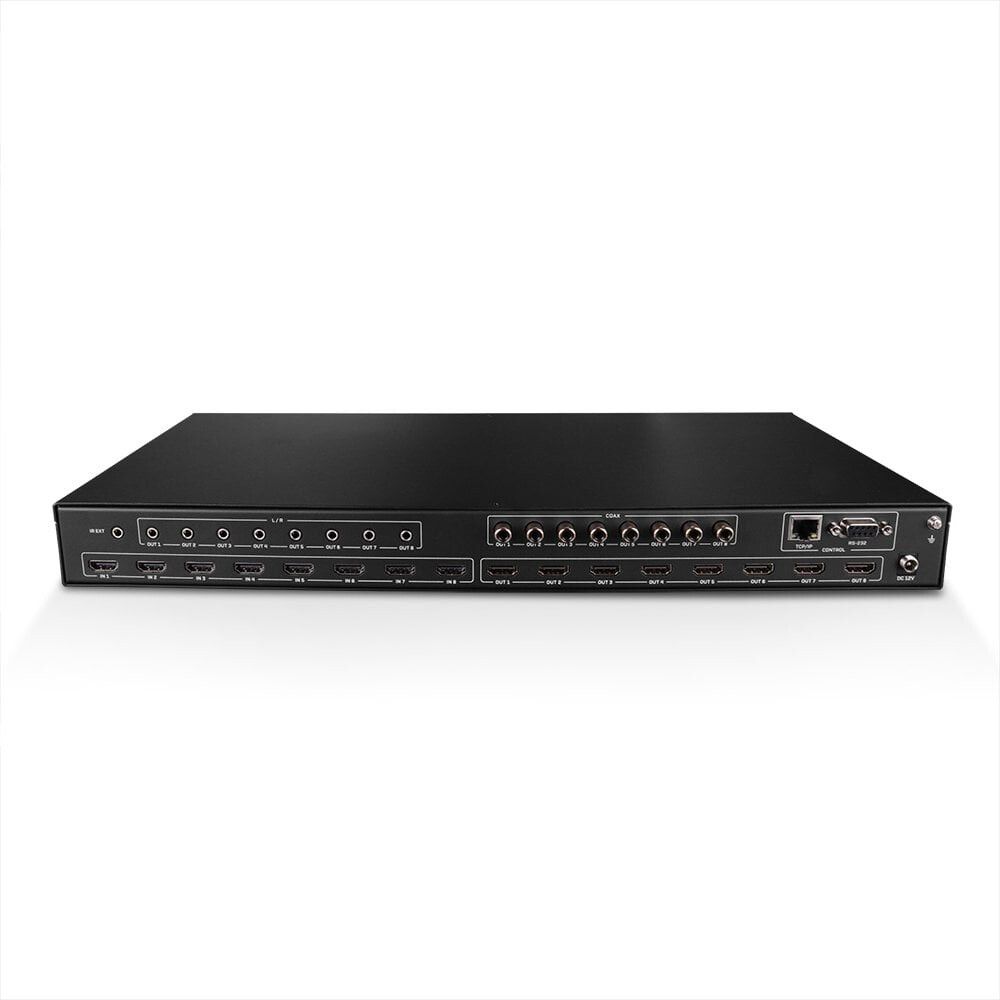

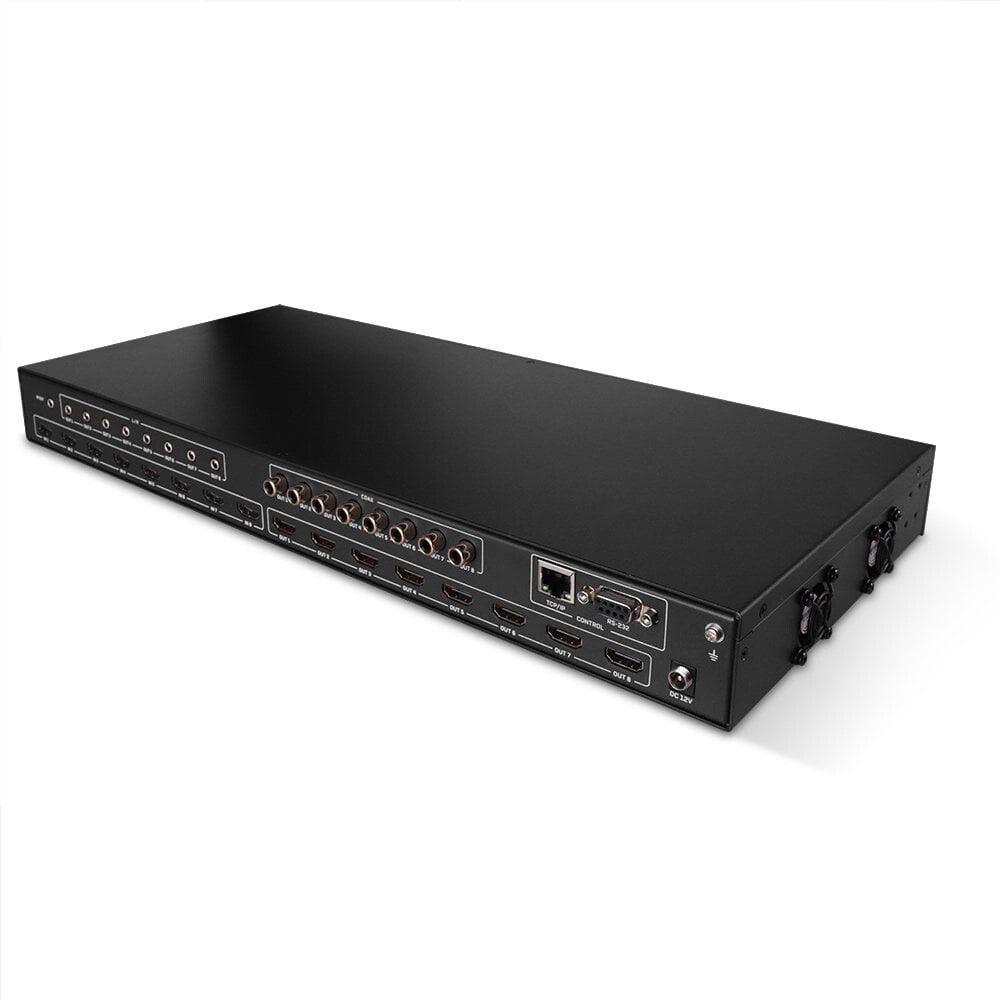

As well as HDMI audio pass-through, individual Coax and 3.5mm ports allow for a separate connection of digital speaker systems and amplifiers, creating immersive audio experiences to compliment the video content.The Audio Return Channel (ARC) feature allows audio to be sent from a TV to an audio system or soundbar over the same HDMI cable that is used to send video to the TV. This eliminates the need for a separate audio cable and simplifies the setup process.
The Matrix also features a downscale function for each output port from 4K to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.

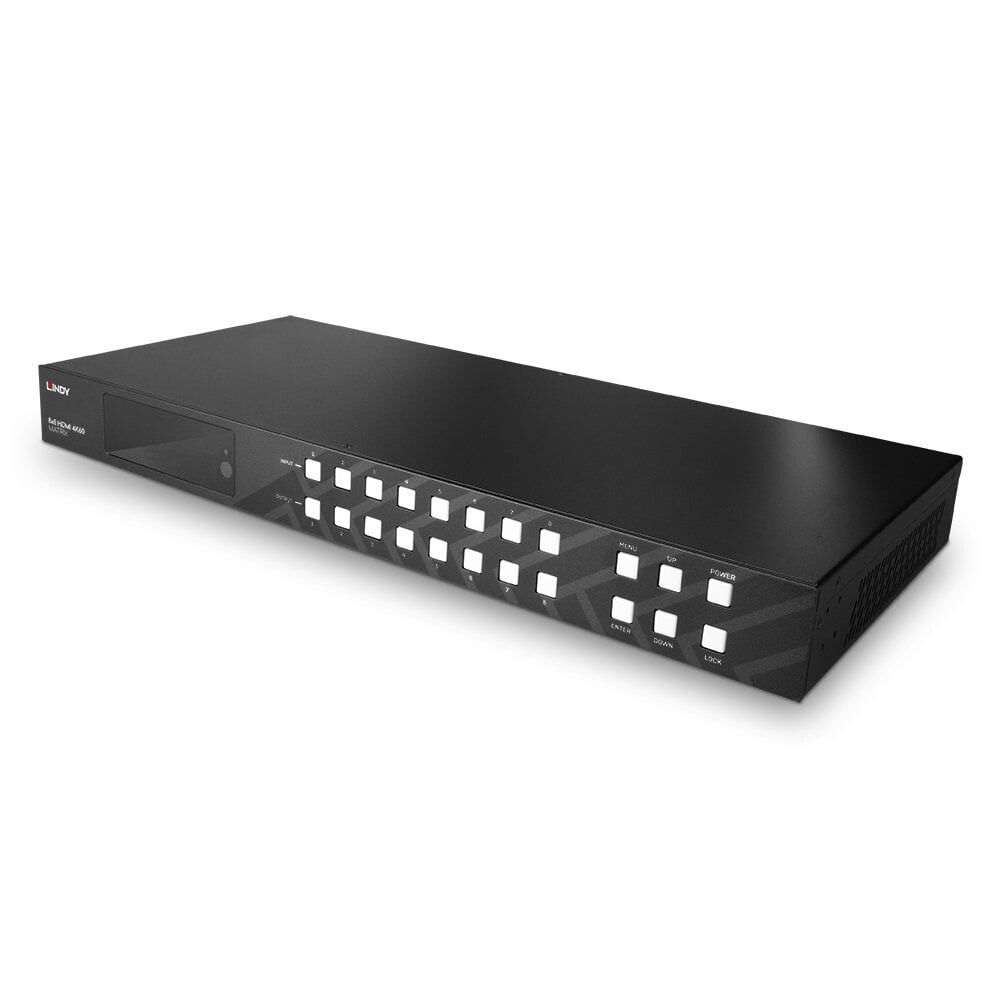

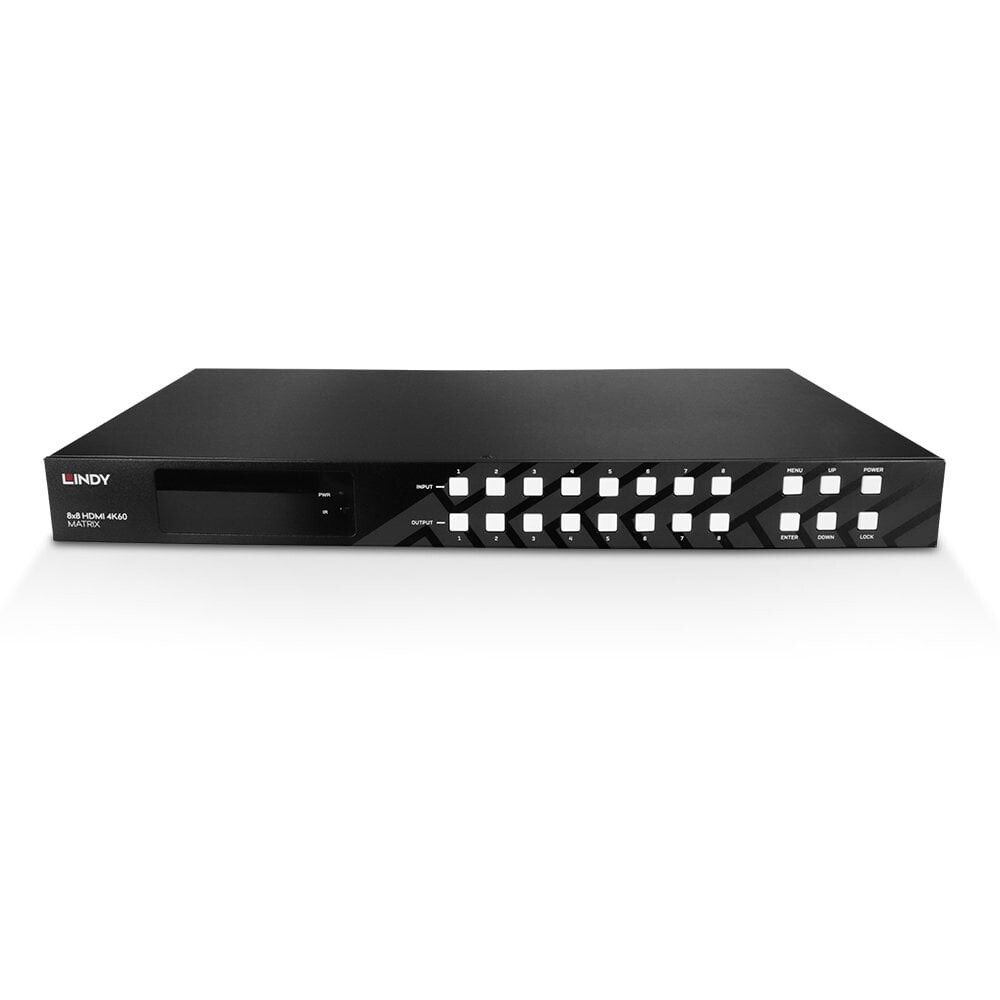

This Matrix can be easily controlled via push button switching on the unit, while the included remote control and IR extension also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 38334 |
| Ean | 4002888383349 |
| Modified on | 16-08-2023 |
| Product title | Lindy 8x8 HDMI 4K60 Matrix |
| Long Product Name | 8x8 HDMI 4K60 Matrix |
| Product specifications | FeaturesProduct type* AV matrix switcher Maximum resolution 3840 x 2160 pixels Bandwidth 18 Gbit/s HDCP Yes HDCP version 2.2 EDID management Yes Audio formats supported DTS, LPCM DesignHousing colour Black Housing material Metal Control type Buttons Certification CP65 DisplayBuilt-in display* Yes Display type OLED Ports & interfacesHDMI input ports quantity 8 HDMI output ports quantity 8 HDMI version 2.0b RJ-45 input ports 1 RS-232 ports 1 Audio (L/R) out 8 DC-in jack Yes PowerPower consumption (max)* 43 W PowerInput current 5 A Output voltage 12 V Operational conditionsOperating temperature (T-T) -10 - 45 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 20 - 90% Technical detailsSustainability compliance Yes Sustainability certificates CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA Warranty period 2 year(s) Compliance certificates CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA Weight & dimensionsWidth 440 mm Depth 200 mm Height 45 mm Weight 2.83 kg Package width 510 mm Package type Box Package depth 328 mm Package height 95 mm Package weight 4.06 kg Packaging contentManual Yes |
| Essential qualities |
|
| Product type | AV matrix switcher |
| Power consumption (max) | 43 W |
| Built-in display | Yes |
