Lindy HDMI 4K30 Audio Extractor
GTIN: 4002888381673
HDMI 4K30 Audio Extractor
The Lindy HDMI 4K Audio Extractor is an effective solution for extracting audio from a HDMI source to both digital and analogue audio devices, while sending the video signal to a 4K display or projector. This is a perfect solution for connecting Non-HDMI AV receivers, or analogue 2-channel speaker setups to an HDMI source device, while also ideal for extracting audio and video to a display that requires separate speakers such as a PC monitor.
The extractor supports high quality 4096x2160@30Hz resolutions with additional pass-through support for CEC, to allow source devices to be controlled from a TV control, and HDCP 1.4, this is ideal for use with source devices such as set top boxes, games consoles and Blu-Ray Players.

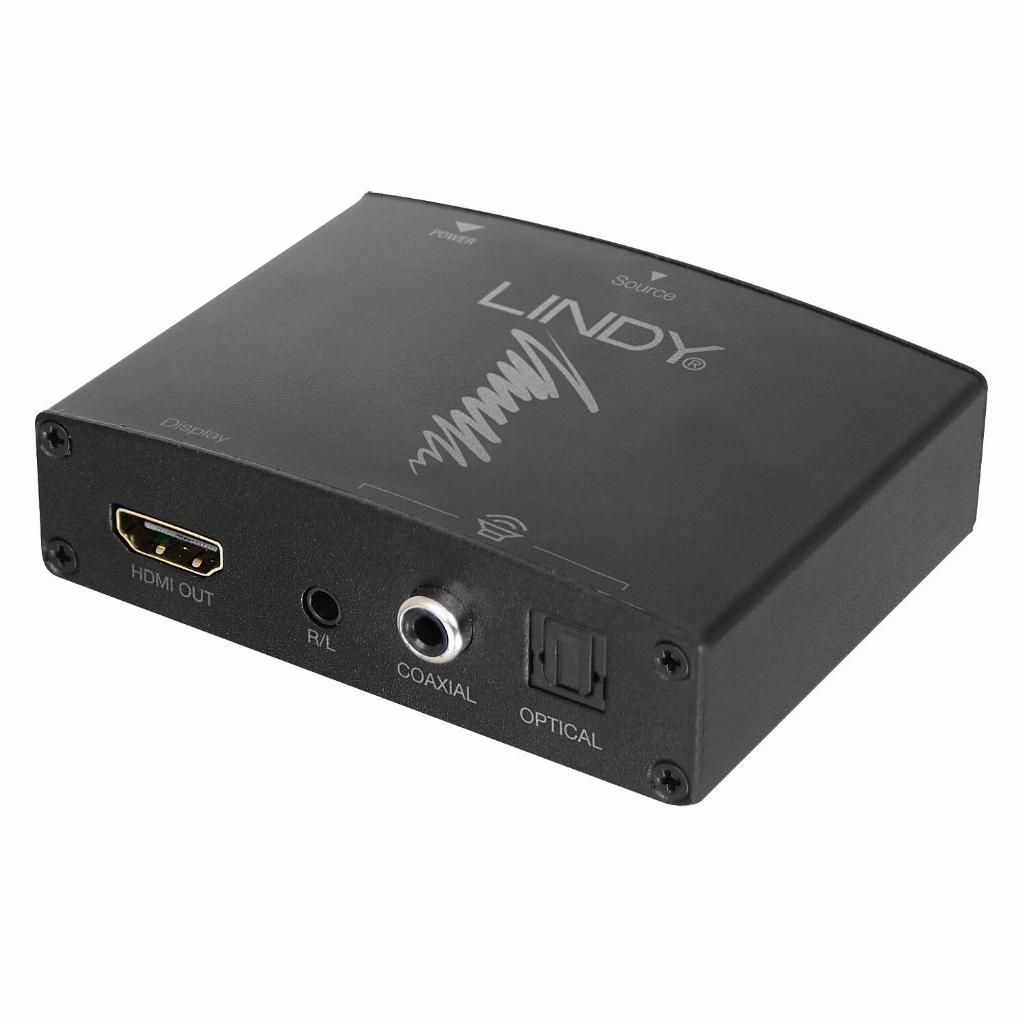

This audio extractor allows output to both digital formats via Optical and HDMI and analogue via L/R connections, ensuring seamless compatibility with an amplifier, sound bar or 2-channel speaker setup. With support for multi-channel audio including DTS: HD and Dolby Digital 5.1, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to an audio device. The 3.5mm analogue connection ensures 2-channel speaker set ups can also be connected to the extractor.

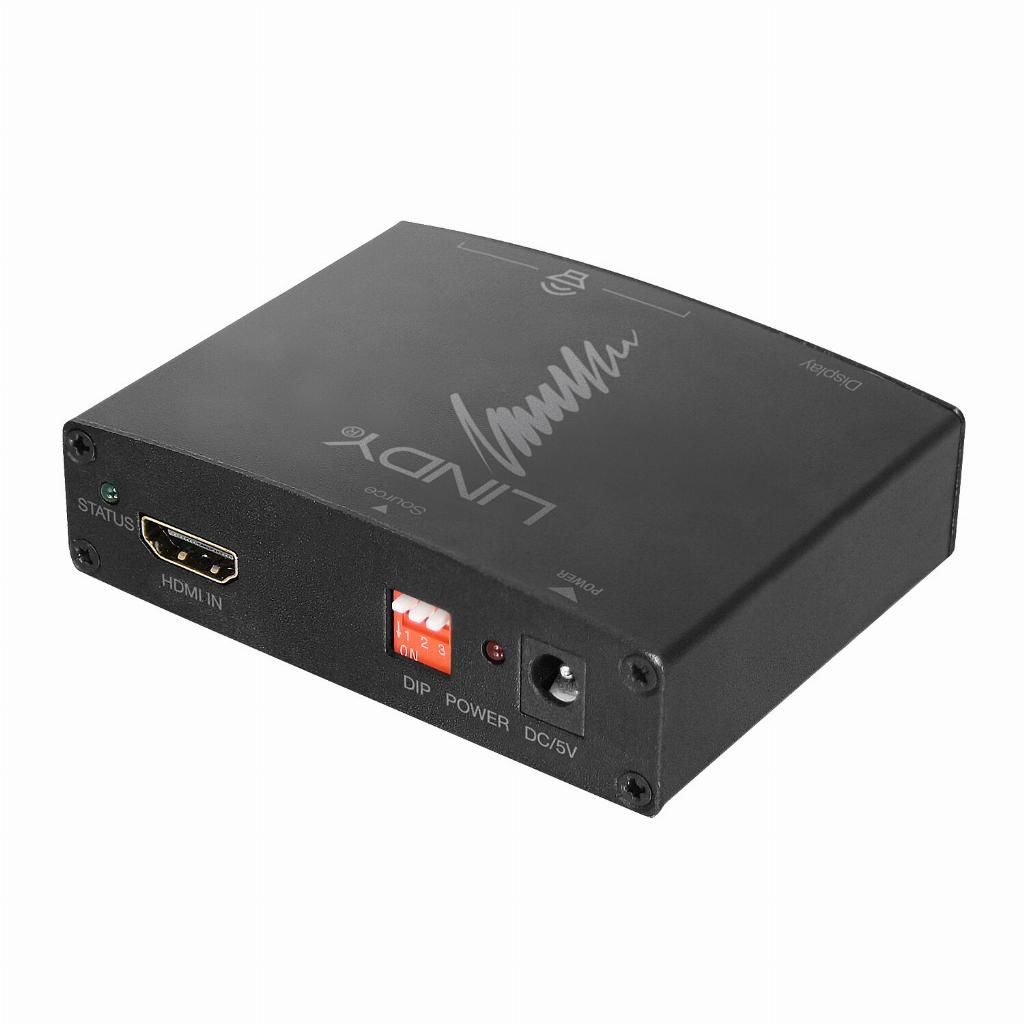

Featuring a neat switch to fully control which source audio EDID is used and the ability to be powered via USB from the source or display device, the extractor provides simple use and installation, great for both AV installations in the home or in commercial settings. With a minimalist and stylish design, it can also be hidden out of sight to compliment the popular trend of discreet AV installations.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 38167 |
| Ean | 4002888381673 |
| Modified on | 26-01-2017 |
| Product title | Lindy HDMI 4K30 Audio Extractor |
| Long Product Name | HDMI 4K30 Audio Extractor |
| Product specifications | InputsHDMI in 1 DC-in jack Yes OutputsAudio (L/R) out* 1 Digital audio coaxial out 1 Digital audio optical out 1 S/PDIF out port Yes Number of HDMI outputs 1 Technical detailsMaximum data transfer rate 10200 Mbit/s HDCP Yes HDCP version 1.4 Chipset EP91A2E HDMI version 1.4 HDMI pass-through Yes CEC pass-through Yes Input impedance 100 Ω Output impedance 100 Ω Supported sample rates 192 kHz Supported chroma subsampling 4:4:4 Audio codecs Dolby Digital 2/5.1, DTS-HD Accuracy 0.1 dB Product colour Black Maximum resolution 4096 x 2160 pixels Audio recording formats LPCM Housing material Metal Sustainability certificates REACH, RoHS Technical detailsCompliance certificates REACH, RoHS Certification CE, UKCA, FCC, RoHS, REACH PowerPower consumption (typical) 5 W Power note 5.5/2.1mm DC Weight & dimensionsWidth 65 mm Depth 88 mm Height 24 mm Weight 118 g Operational conditionsOperating temperature (T-T) -15 - 55 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 10 - 90% Packaging dataQuantity 1 Cables included DC to USB Type-A Manual Yes Package width 202 mm Package depth 144 mm Package height 55 mm Package weight 250 g Package type Box Logistics dataHarmonized System (HS) code 85176990 |
| Essential qualities |
|
| Audio (L/R) out | 1 |
| Digital audio optical in | 0 |
| Digital audio coaxial in | 0 |
| USB 1.1 ports quantity | 0 |
