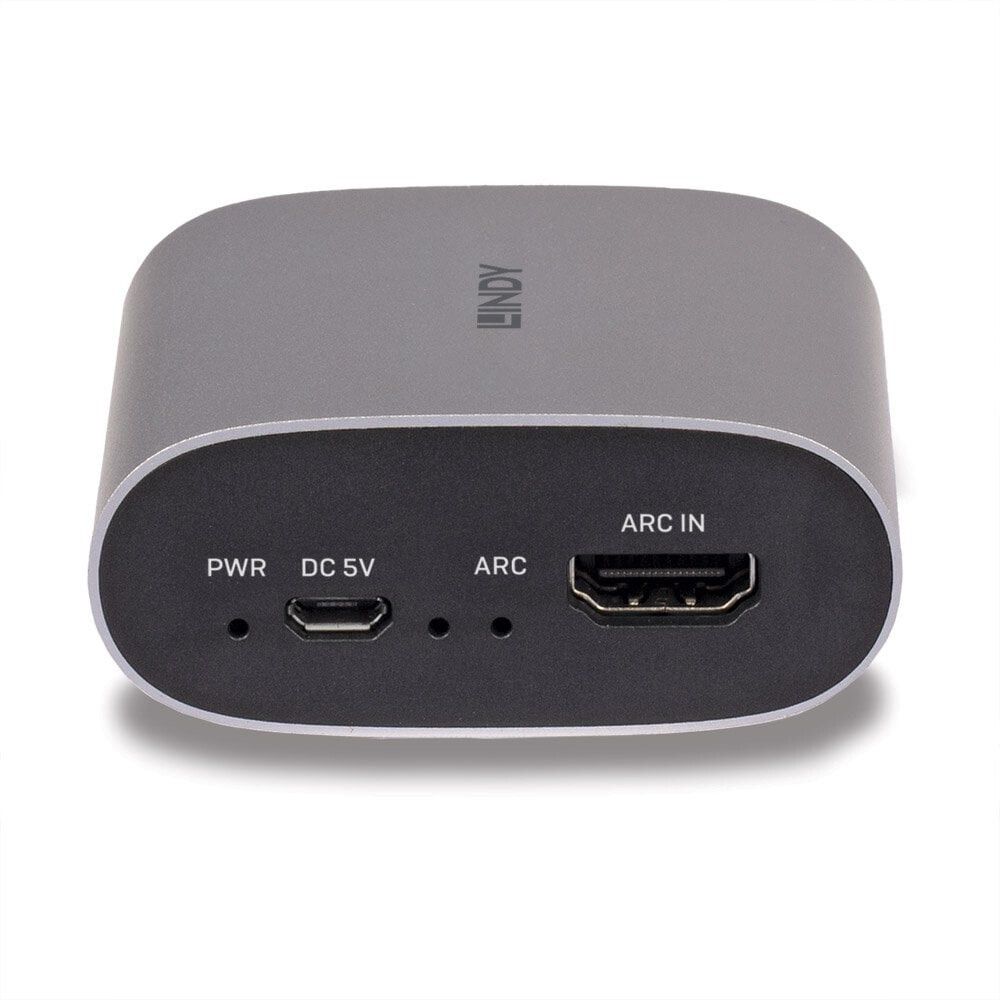

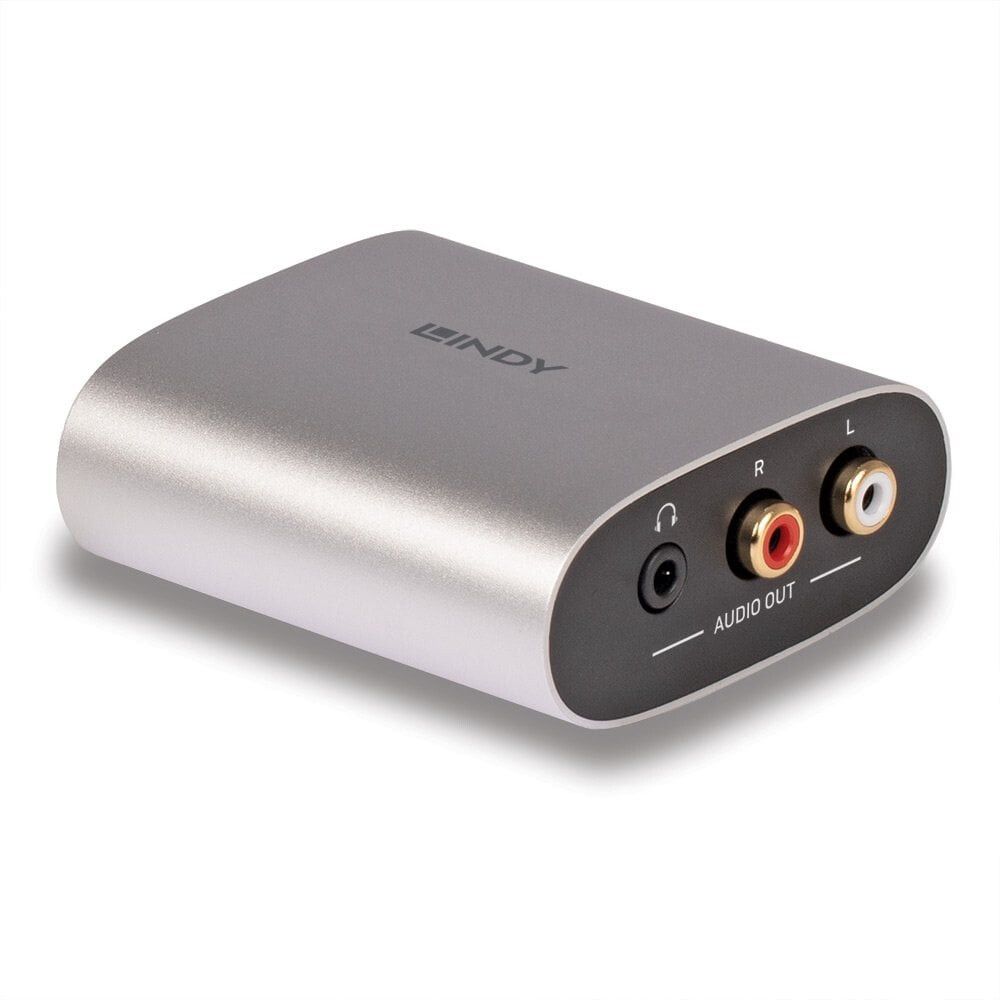

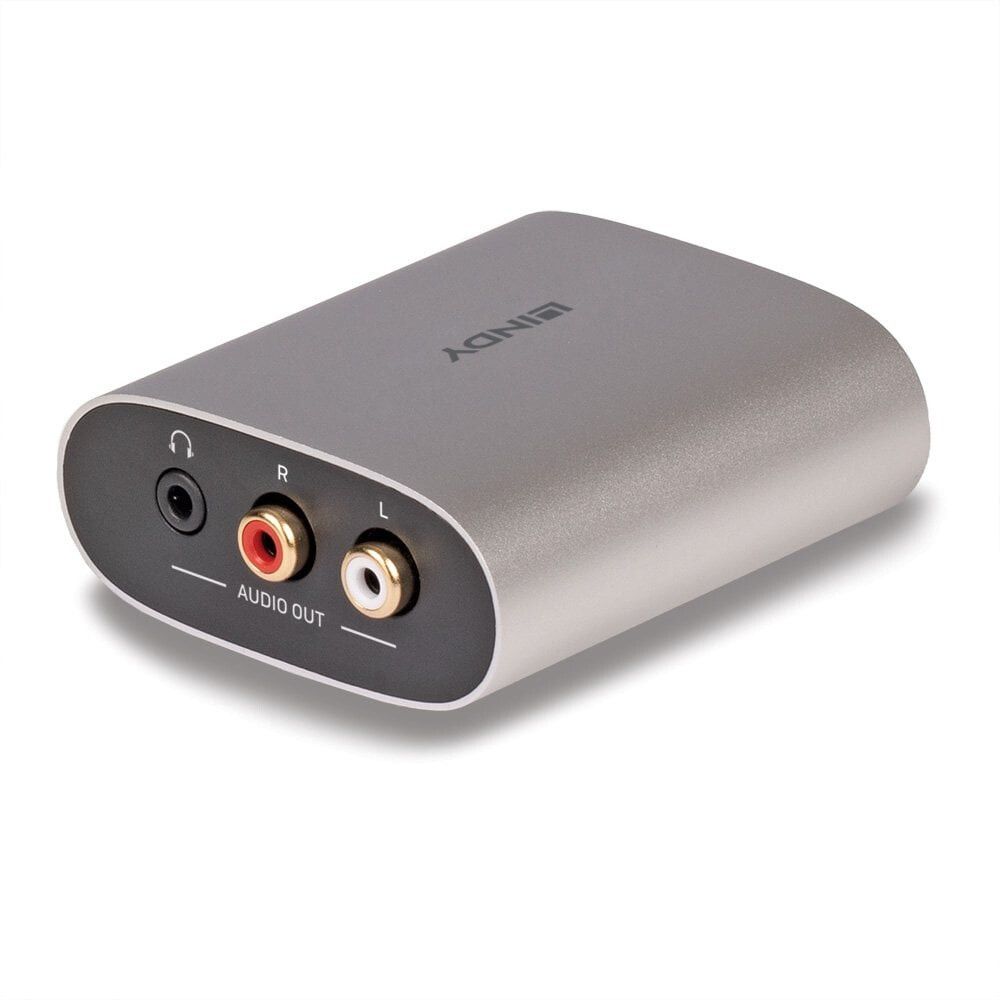

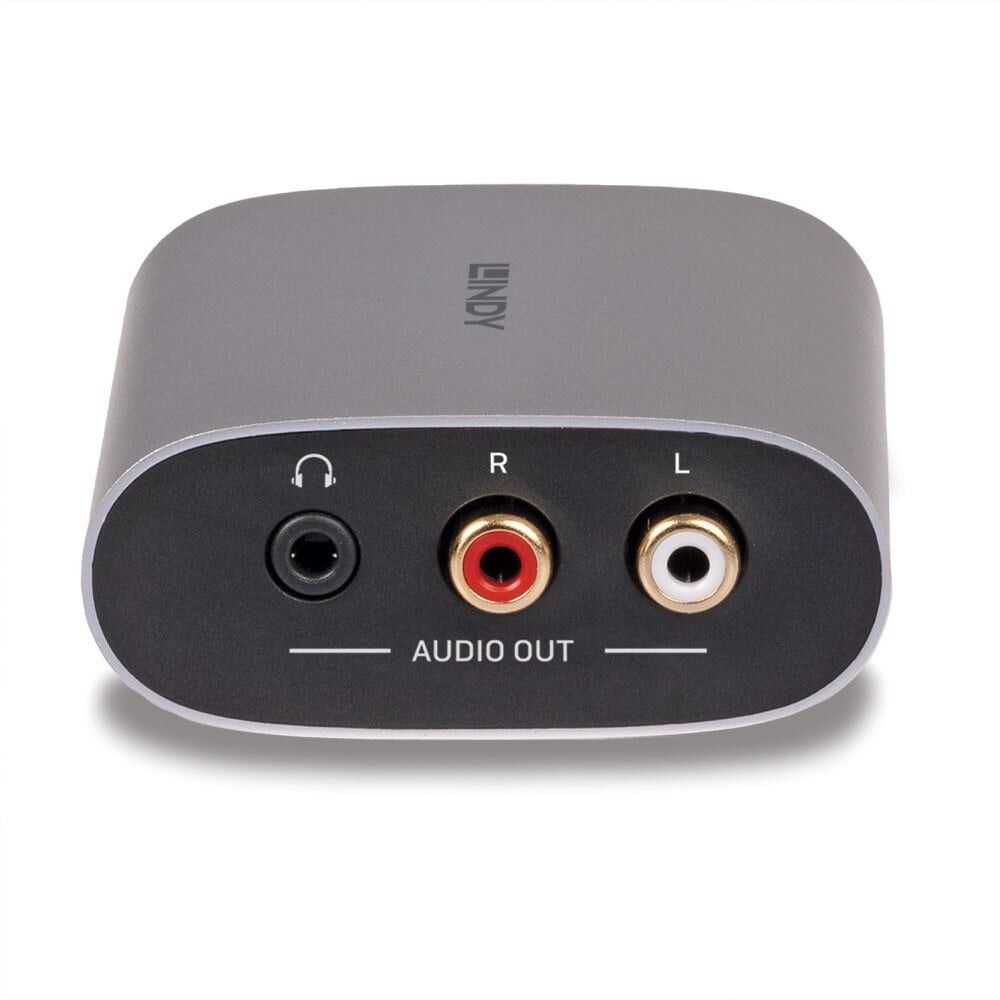

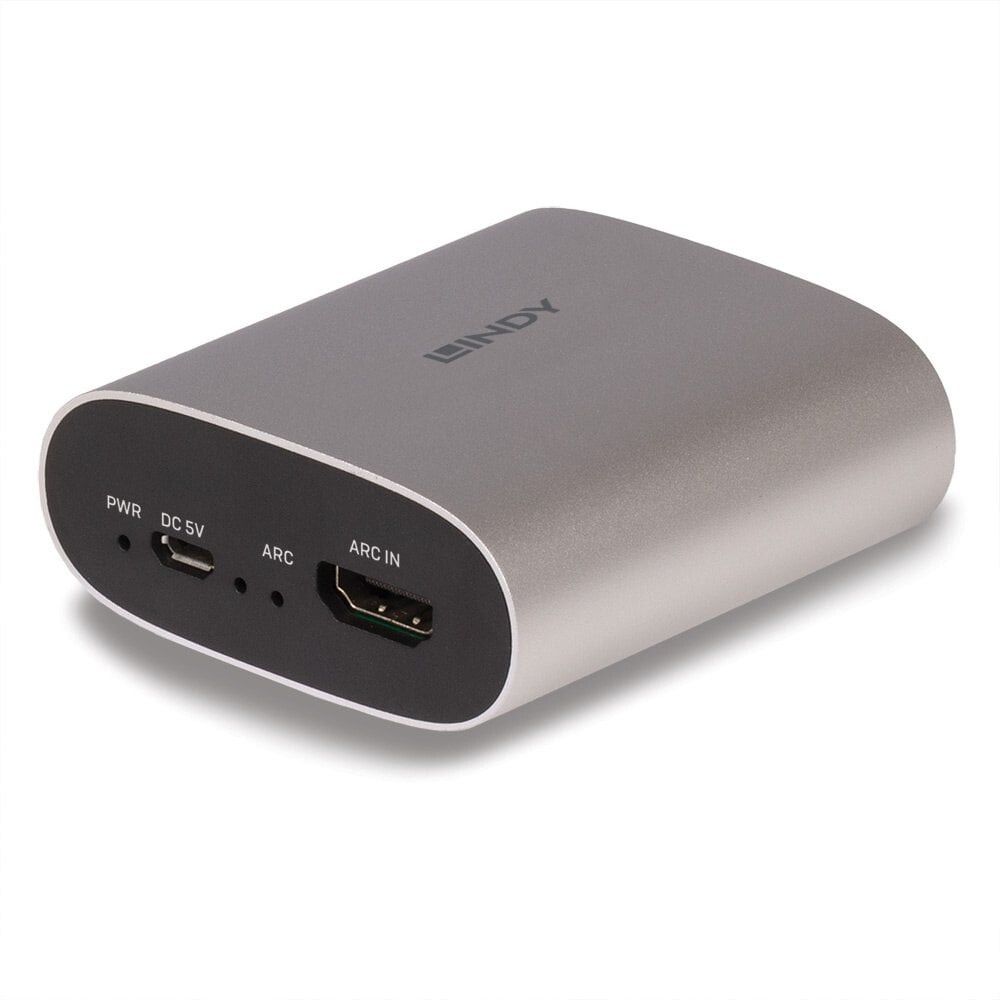

Lindy HDMI ARC Audio Downmix Decoder
GTIN: 4002888383622
Lindy HDMI ARC Audio Downmix Decoder, Micro-USB, 5 V, 70 mm, 65 mm, 27 mm, 0 - 40 °C
The Lindy HDMI ARC Audio Downmix Decoder of high quality audio signal to be simultaneously extracted and split to both digital and analog audio outputs, providing high quality audio and video performance, for a high quality audio experience of movies, music and games. Effortlessly adjust TV sound and speaker sound synchronously with CEC passthrough allowing you to increase or decreases the TV volume with your regular remote. The separate micro-USB port is used for power, via connection to a source devices USB port, avoiding the need for a separate PSU.
The converter's Dolby® Digital Decoder function ensures that Dolby® Digital audio signals are down-mixed to analogue stereo without any compression or loss in audio quality, and with support for PCM sample rates up to 192kHz and Dolby digital sample rates up to 48kHz, music and movies can be heard how the artist and sound engineers intended, with greater detail and clarity. Featuring flexible operation between all audio formats, and status LEDs, to indicate a Dolby Digital encoded audio source or for power, ensures simple, fuss-free installation and use.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 38362 |
| Ean | 4002888383622 |
| Modified on | 16-08-2023 |
| Product title | Lindy HDMI ARC Audio Downmix Decoder |
| Long Product Name | HDMI ARC Audio Downmix Decoder |
| Product specifications | InputsUSB connector type Micro-USB HDMI in 1 OutputsAudio (L/R) out* 1 Headphone out Yes Technical detailsFrequency range 20 - 20000 Hz Chipset SPHE8107S-AD HDMI version 1.3 CEC pass-through Yes Output impedance 100 Ω Supported sample rates 192 kHz Product colour Silver Housing material Plastic Sustainability compliance Yes Sustainability certificates CE, Federal Communications Commission (FCC), REACH, RoHS Warranty period 2 year(s) Signal-to-Noise Ratio (SNR) 101 dB Compliance certificates CE, Federal Communications Commission (FCC), REACH, RoHS Certification California Proposition 65 PowerOperating voltage 5 V Weight & dimensionsWidth 70 mm Depth 65 mm Height 27 mm Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Packaging dataQuantity 1 Cables included USB Type-A to Micro-USB Type-B Manual Yes Package width 146 mm Package depth 105 mm Package height 65 mm Package weight 175 g Package type Box |
| Essential qualities |
|
