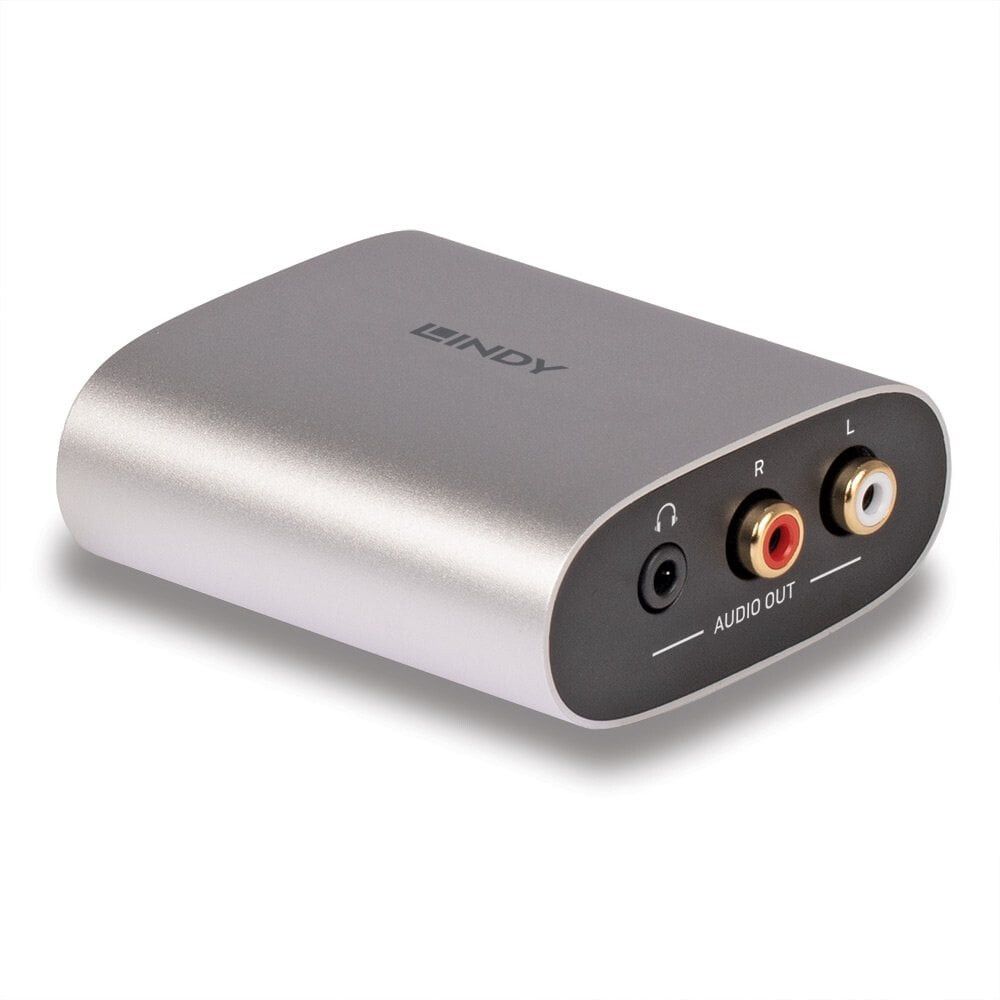

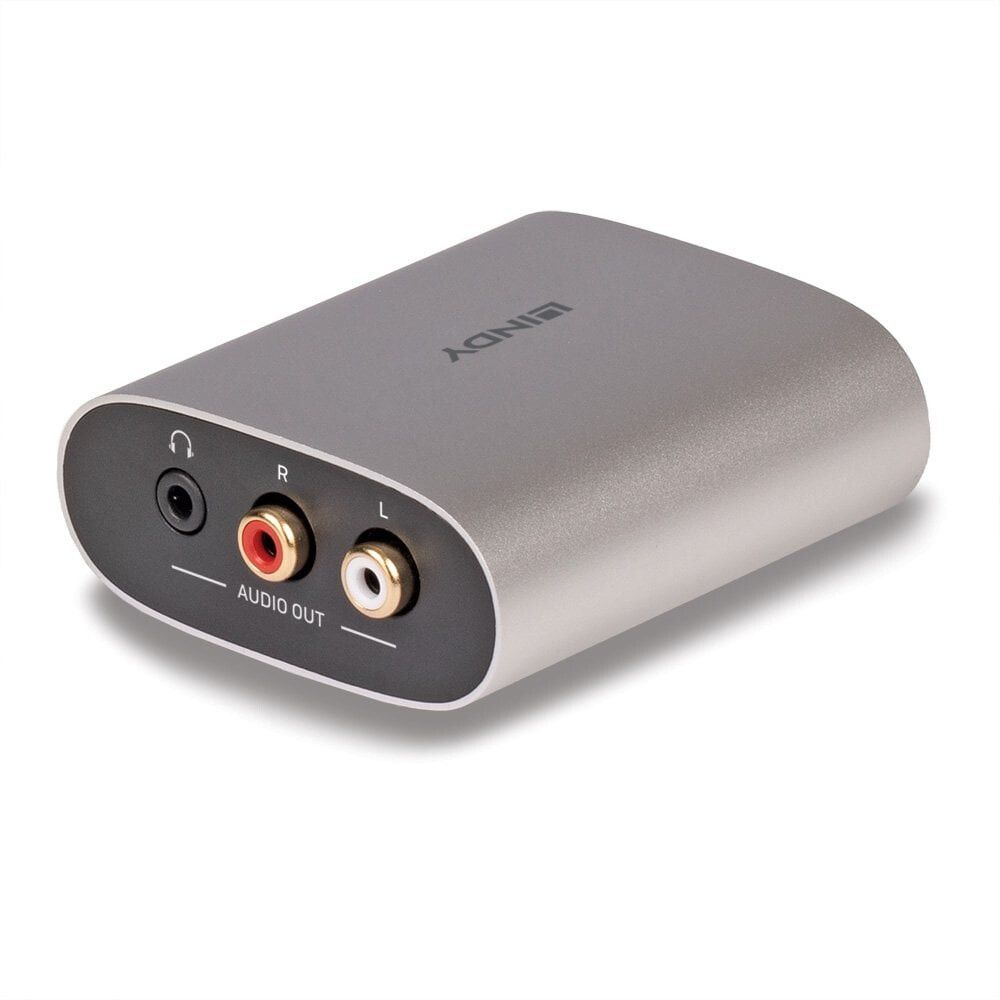

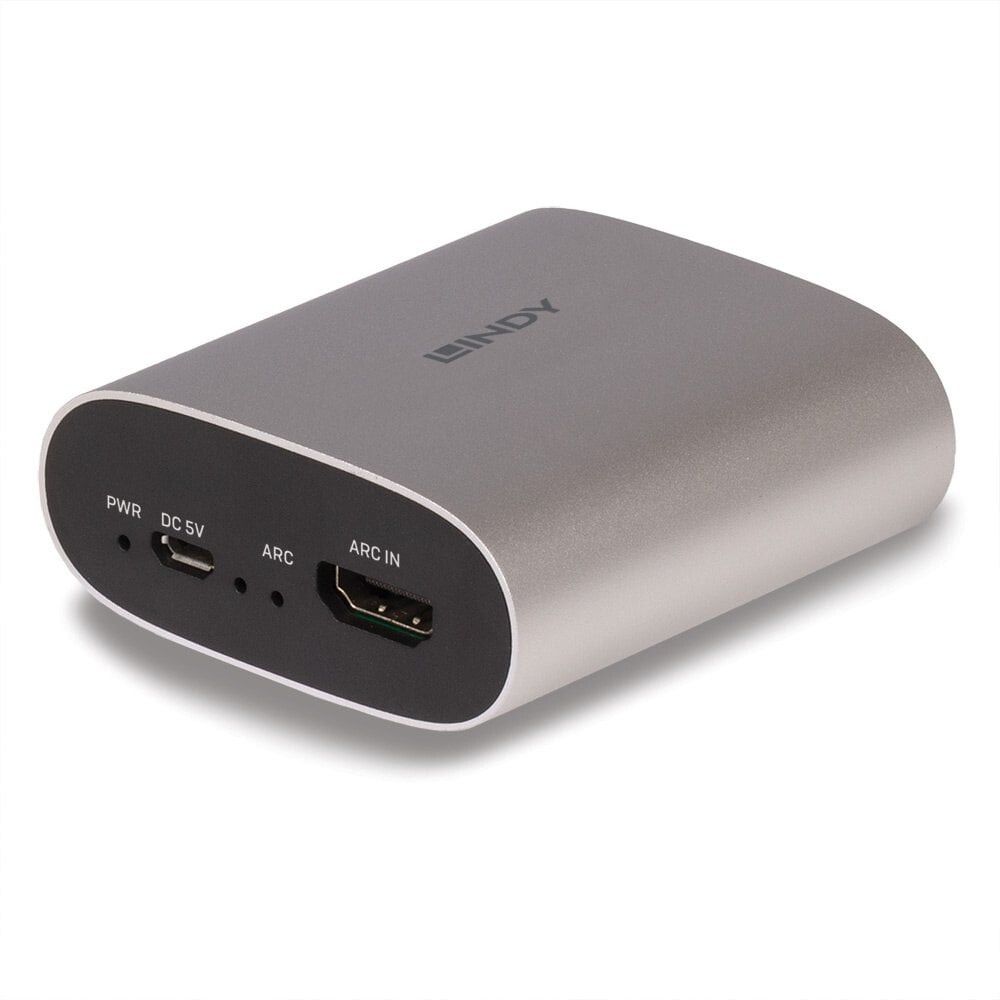

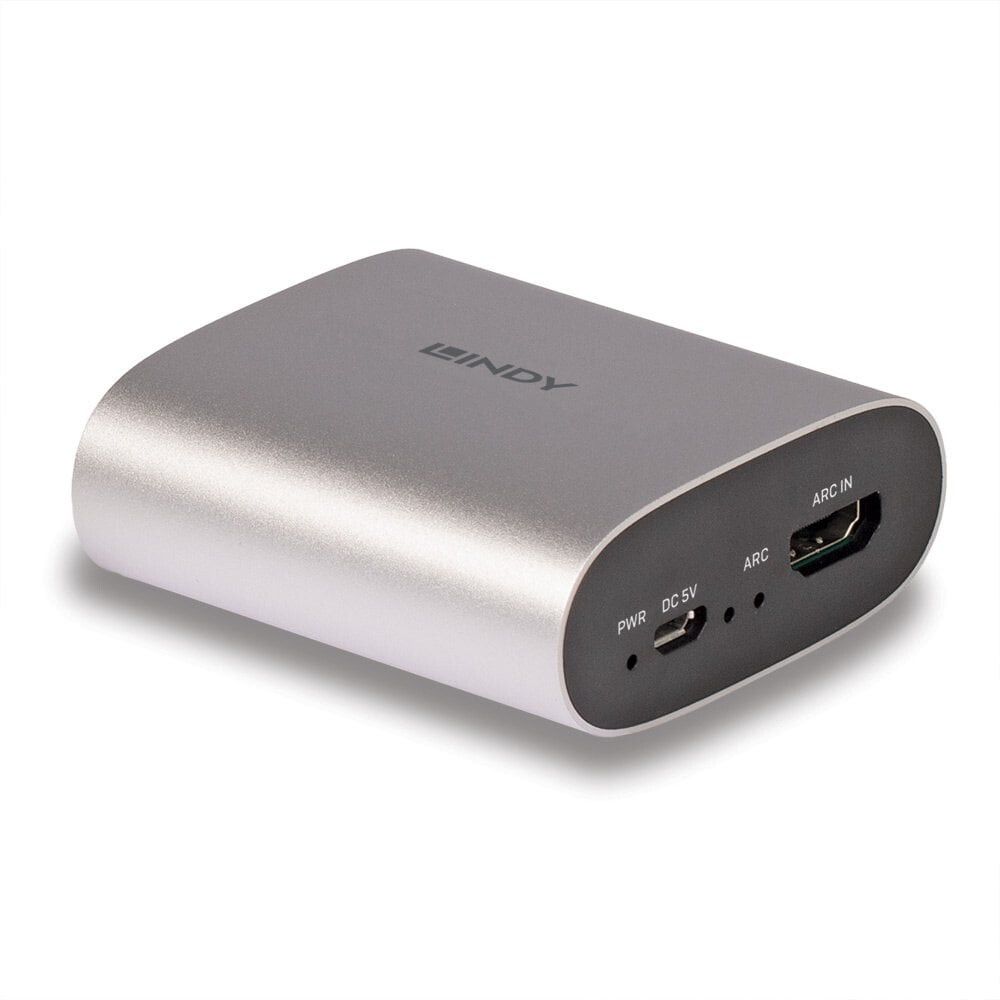

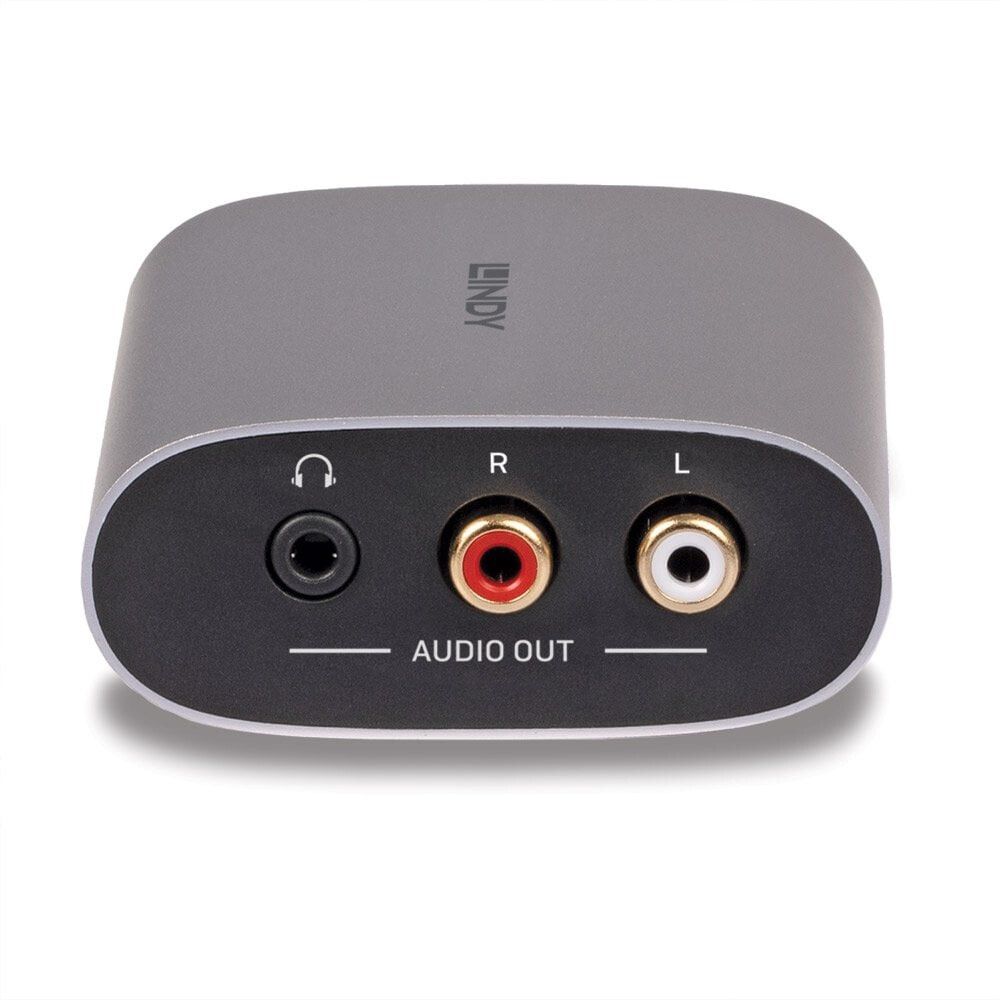

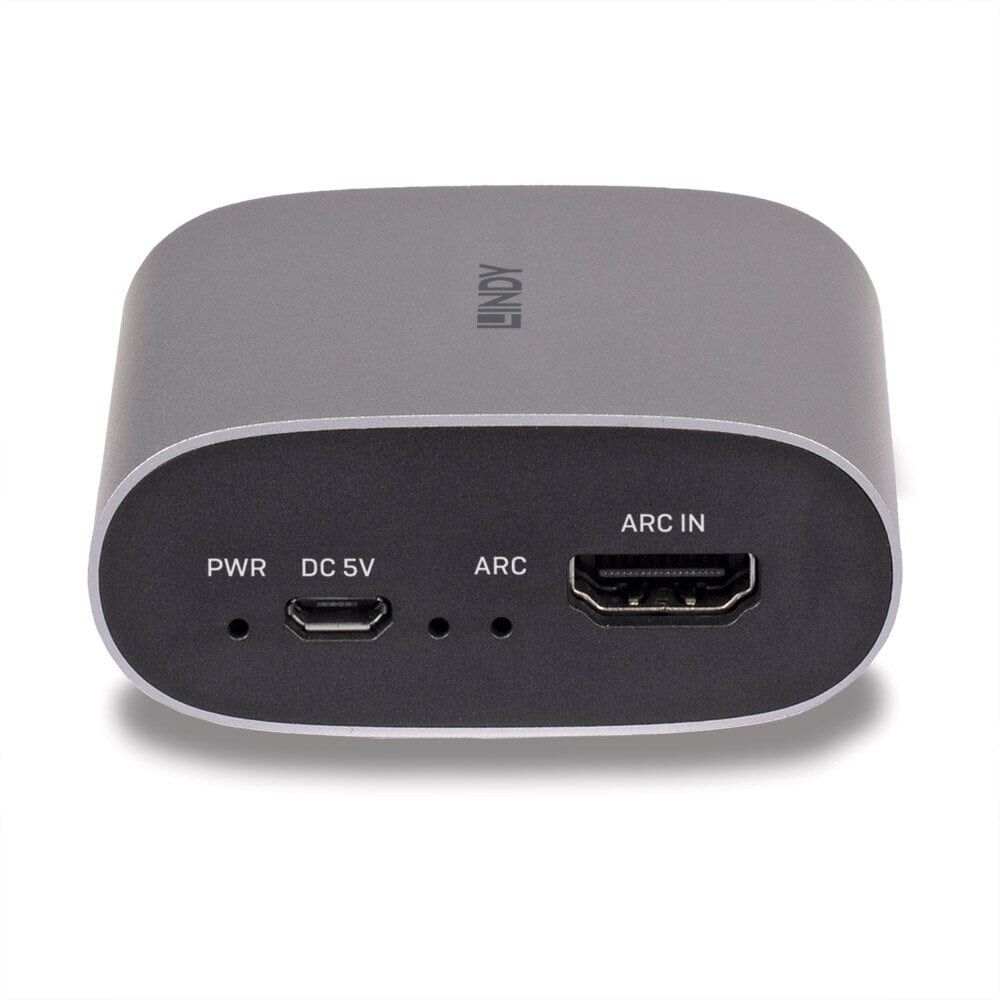

Lindy HDMI ARC Audio Extractor
GTIN: 4002888383639
HDMI ARC Audio Extractor
The Lindy HDMI ARC Audio Extractor is an effective solution for extracting audio from a HDMI display to analogue audio devices.
The extractor supports high quality 4096x2160@30Hz resolutions with additional pass-through support for CEC, to allow source devices to be controlled from a TV control, and HDCP 1.4, this is ideal for use with source devices such as set top boxes, games consoles and Blu-Ray Players.
This audio extractor allows output to HDMI and analogue via L/R connections, ensuring seamless compatibility with an amplifier, sound bar or 2-channel speaker setup. With support for multi-channel audio including DTS: HD and Dolby Digital 5.1, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to an audio device. The 3.5mm analogue connection ensures 2-channel speaker set ups can also be connected to the extractor, perfect for use with PC monitors which may require separate speakers.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 38363 |
| Ean | 4002888383639 |
| Modified on | 13-08-2023 |
| Product title | Lindy HDMI ARC Audio Extractor |
| Long Product Name | HDMI ARC Audio Extractor |
| Product specifications | InputsUSB connector type Micro-USB HDMI in 1 OutputsAudio (L/R) out* 1 Headphone out Yes Technical detailsFrequency range 20 - 20000 Hz Chipset SPHE8107S HDMI version 1.4 CEC pass-through Yes Output impedance 100 Ω Supported sample rates 192 kHz Product colour Silver Housing material Plastic Sustainability compliance Yes Sustainability certificates CE, Federal Communications Commission (FCC), REACH, RoHS Warranty period 2 year(s) Signal-to-Noise Ratio (SNR) 101 dB Compliance certificates CE, Federal Communications Commission (FCC), REACH, RoHS Certification California Proposition 65 PowerPower consumption 500 mA Input voltage 5 V Weight & dimensionsWidth 70 mm Depth 65 mm Height 27 mm Weight 81 g Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 20 - 90% Packaging dataQuantity 1 Cables included USB Type-A to Micro-USB Type-B Manual Yes Package width 146 mm Package depth 105 mm Package height 65 mm Package weight 174 g Package type Box |
| Essential qualities |
|
| Audio (L/R) out | 1 |
