Lindy KVM Over IP Extender - Transmitter
GTIN: 4002888382649

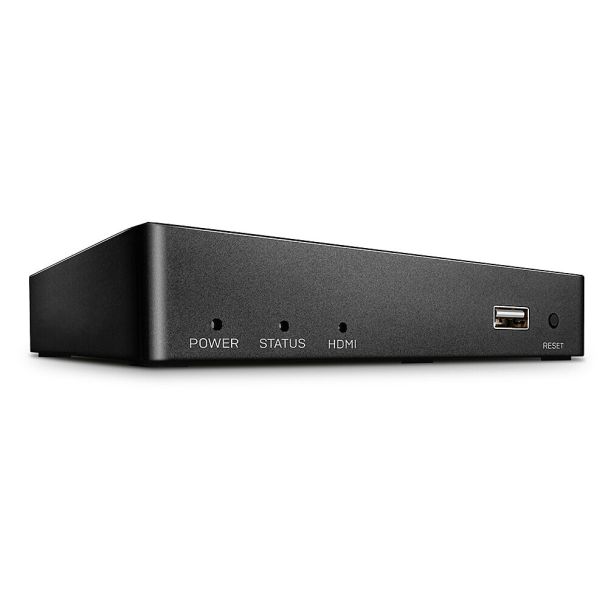

KVM Over IP Extender - Transmitter
The Lindy KVM Over IP Extender system allows users to control a source device such as a PC or PVR through a standard IP network. This transmitter unit must be connected to one or more receiver units (No. 38265 not included) to create a standard point to point control system, with a maximum distance of 150m (492,12ft). It's also possible to set up a distributed control system (One to Many configuration) which allows a single device connected to a Transmitter to be controlled by several consoles each connected to a receiver unit (No. 38265 - not included) via a dedicated Ethernet switch or VPN.
This extender system includes a convenient IR (25 to 56kHz) repeating system to allow for the dedicated use of a remote control from the console side. This is a typical solution for security system management (PVR management or control rooms), or remote server administration (KVM switch remote control) as well as AV signals over IP extension for distributed monitoring of industrial facilities.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 38264 |
| Ean | 4002888382649 |
| Modified on | 19-10-2019 |
| Product title | Lindy KVM Over IP Extender - Transmitter |
| Long Product Name | KVM Over IP Extender - Transmitter |
| Product specifications | FeaturesType* Transmitter Connectivity technology* Wired Maximum transfer distance 150 m Cable types supported Cat5e, Cat6 Maximum digital resolution 3840 x 2160 pixels Product colour Black Material Metal TransmitterTransmitter video port type HDMI RJ-45 ports quantity (transmitter) 1 PowerPower plug type Type A AC input voltage 5 V Input current 2 A Operational conditionsStorage temperature (T-T) -10 - 75 °C Technical detailsDimensions (WxDxH) 124 x 85 x 24 mm Weight 200 g Logistics dataHarmonized System (HS) code 84733080 |
| Essential qualities |
|
| Type | Transmitter |
| Connectivity technology | Wired |
