Lindy SDVoE Controller
GTIN: 4002888383646
SDVoE Controller
SDVoE is a globally recognised standard for high quality distribution of AV content with other features, including control, matrix, video wall and multi view over longer distances via 10G Network with no compressions and latency.
The Lindy SDVoE controller is a fast and reliable control system for 4K60 Over IP Extender installations. This unit provides a single interface to manage large installations including multi view functions and video walls with the option to create projects to simplify the control tasks. Device management is controlled by a web based visual interface with signal preview supporting drag and drop operations making setup of the installation fast and intuitive.

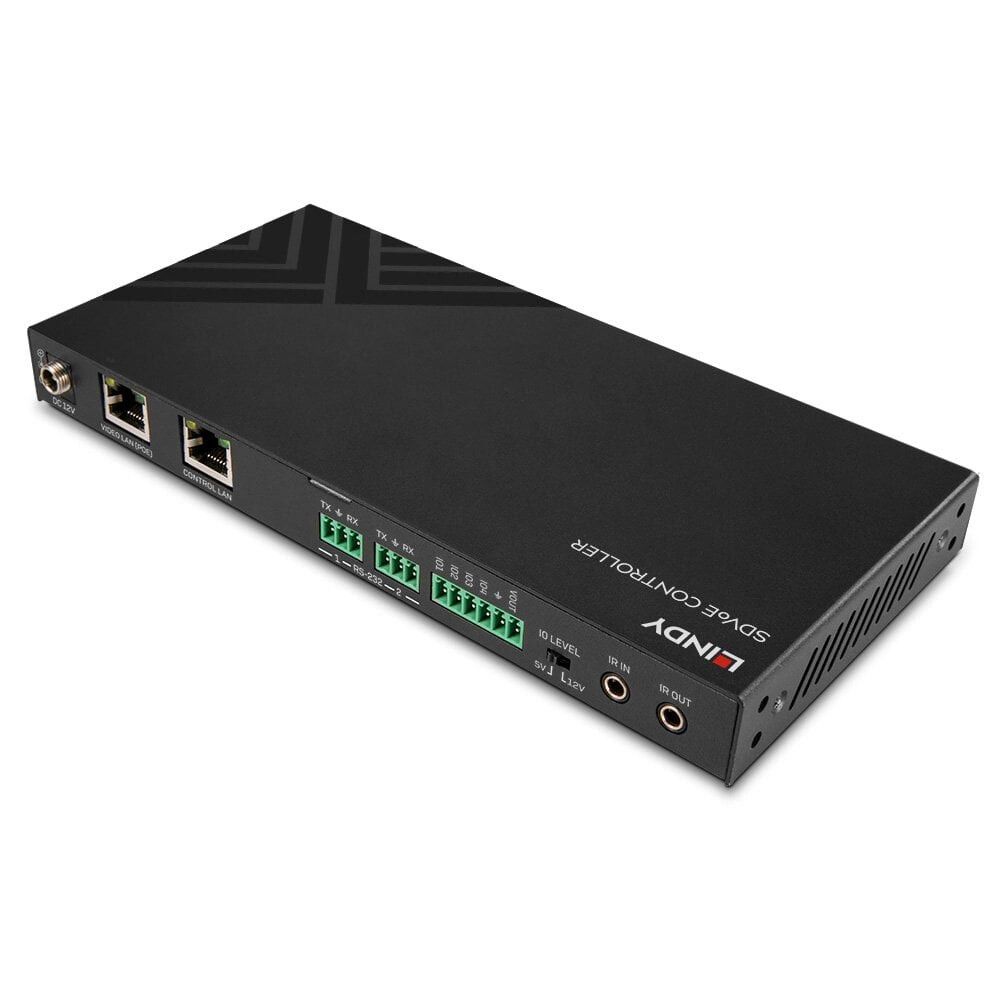

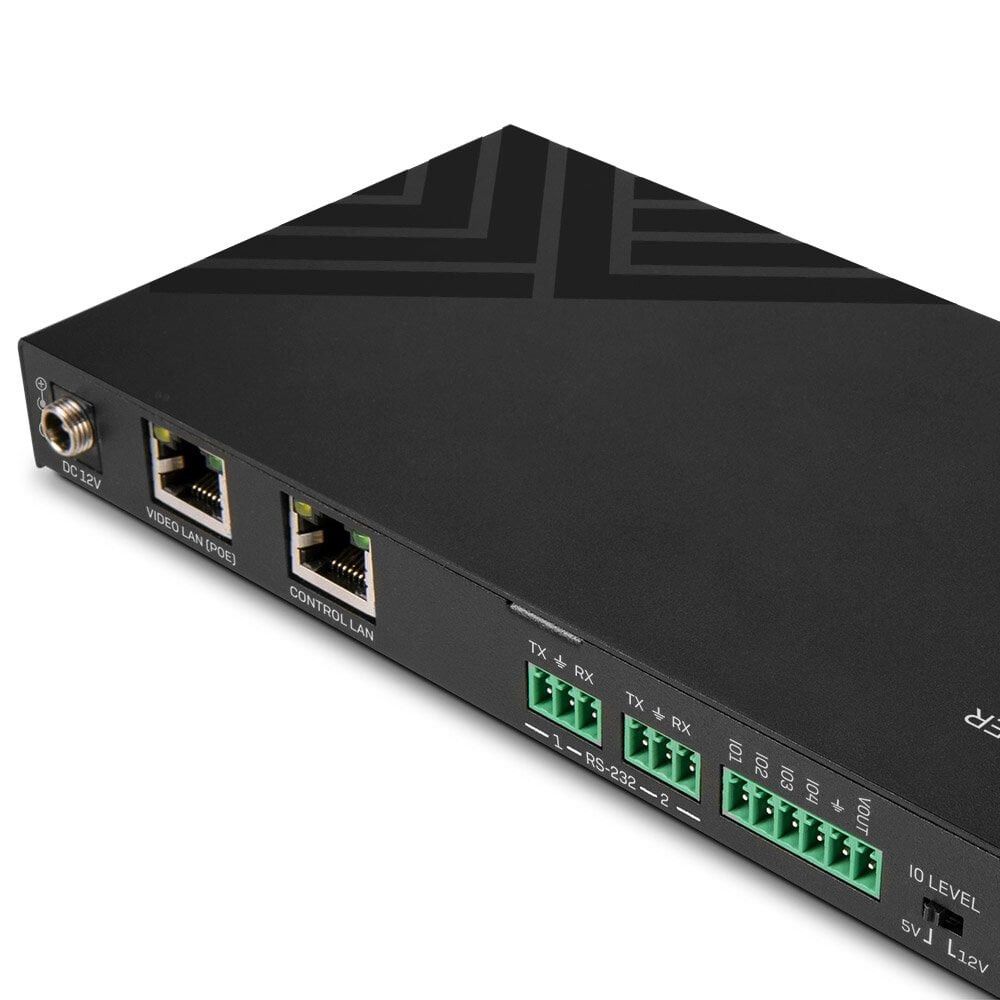

Provides dual network ports to isolate Controls and Multicast networks and it can be managed also via third-party RS-232 central control.
The convenient PoE gigabit interface allows users to install the unit without connecting the included PSU.
Please note: this unit works only when connected to a 10Gigabit network where several extender transceiver units (No.38365) are connected.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 38364 |
| Ean | 4002888383646 |
| Modified on | 10-03-2023 |
| Product title | Lindy SDVoE Controller |
| Long Product Name | SDVoE Controller |
| Product specifications | FeaturesType* AV repeater Maximum resolution* 3840 x 2160 pixels Cable types supported Cat6 Maximum transfer distance 100 m Maximum refresh rate 60 Hz Supported network protocols IP Material Metal Product colour Black Ports & interfacesConnectivity technology* Wired Ethernet LAN Yes RJ-45 input ports 1 RJ-45 output ports 1 USB ports quantity 1 USB connector type Micro-USB RS-232 input ports 2 3.5 mm (1/8-inch) in Yes 3.5 mm (1/8-inch) out Yes Remote (IR) input 1 Remote (IR) output 1 DC-in jack Yes PowerPower source type DC Operating voltage 12 V Output current 1 A Operational conditionsOperating temperature (T-T) 0 - 40 °C Operational conditionsStorage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 20 - 90% Storage relative humidity (H-H) 20 - 90% Weight & dimensionsWidth 204 mm Depth 98.5 mm Height 21.5 mm Weight 760 g Packaging dataQuantity per pack 1 pc(s) Package width 255 mm Package depth 157 mm Package height 77 mm Package weight 960 g Package type Box Packaging contentAC adapter included Yes Cables included IR Quick start guide Yes Mounting kit Yes Technical detailsSpecial features API support, 4 channel GPIO control ports (5V/12V optional level) Sustainability compliance Yes Sustainability certificates CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA Compliance certificates CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Essential qualities |
|
| Type | AV repeater |
| Maximum resolution | 3840 x 2160 pixels |
| Connectivity technology | Wired |
