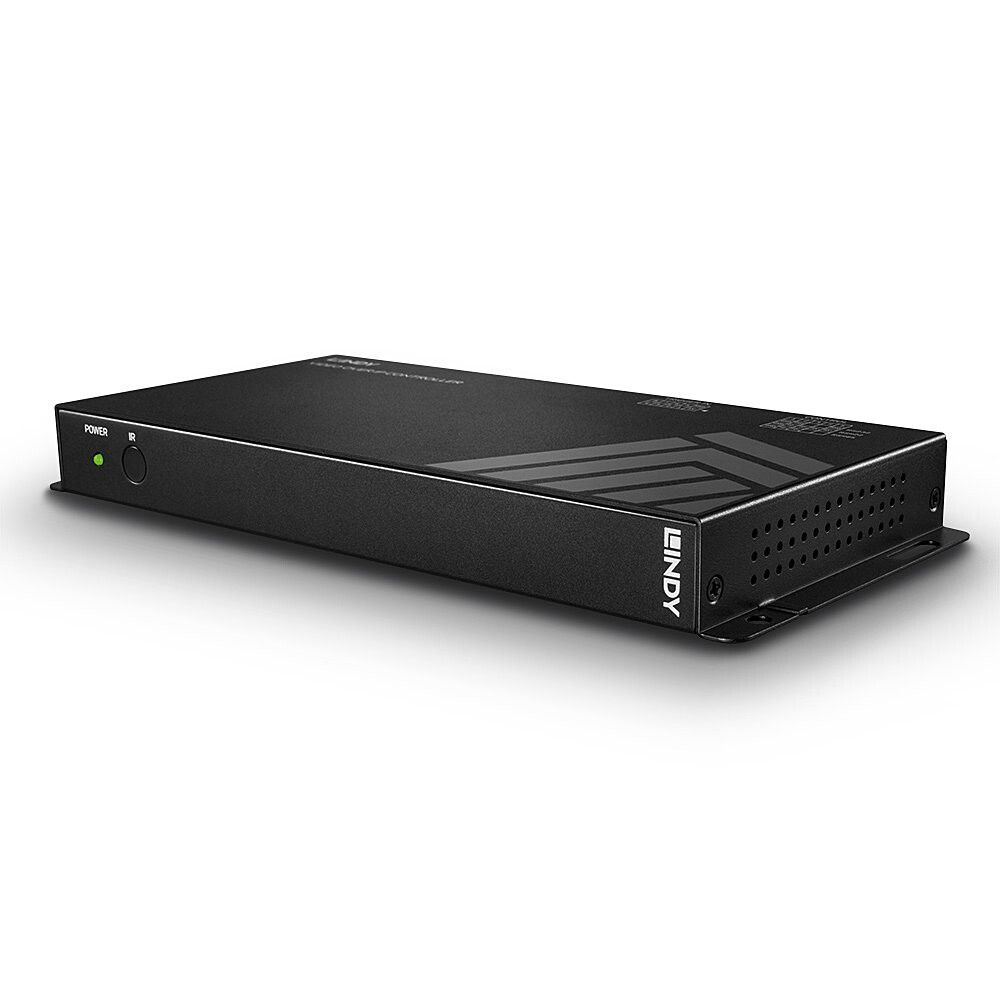

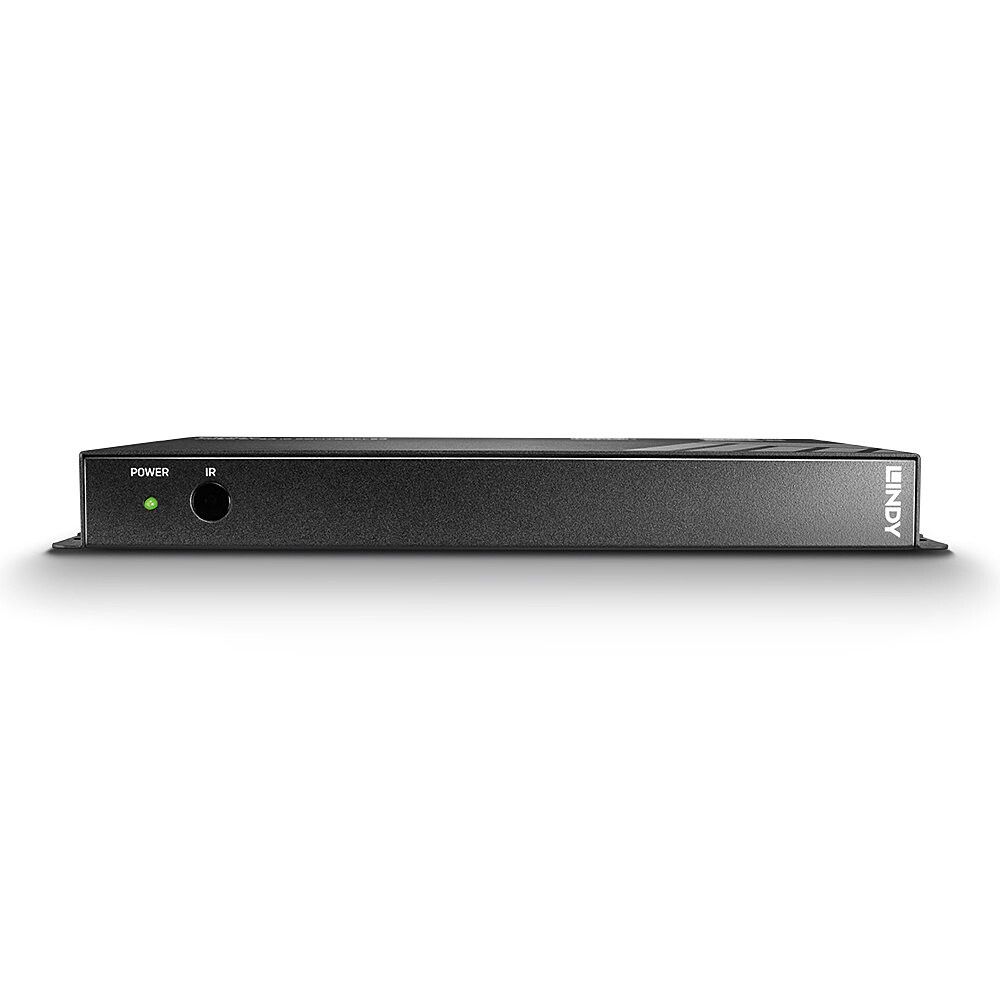

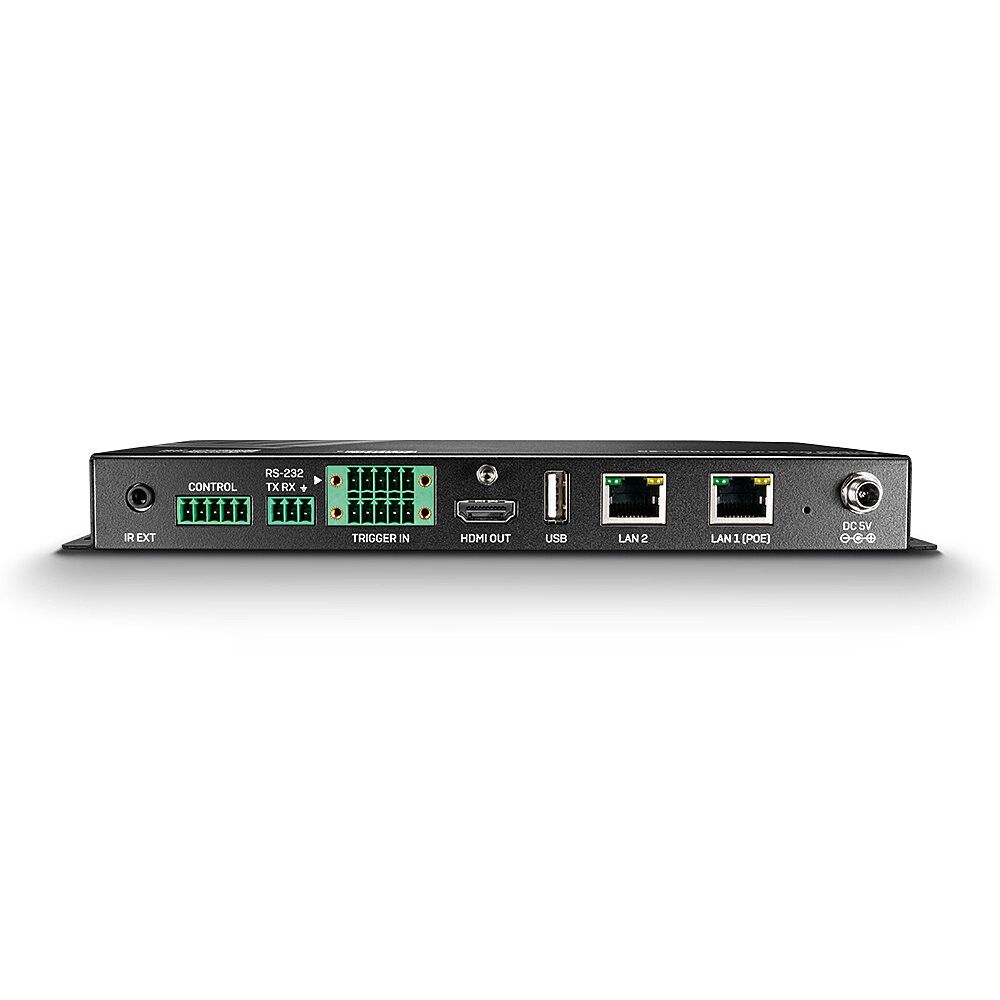

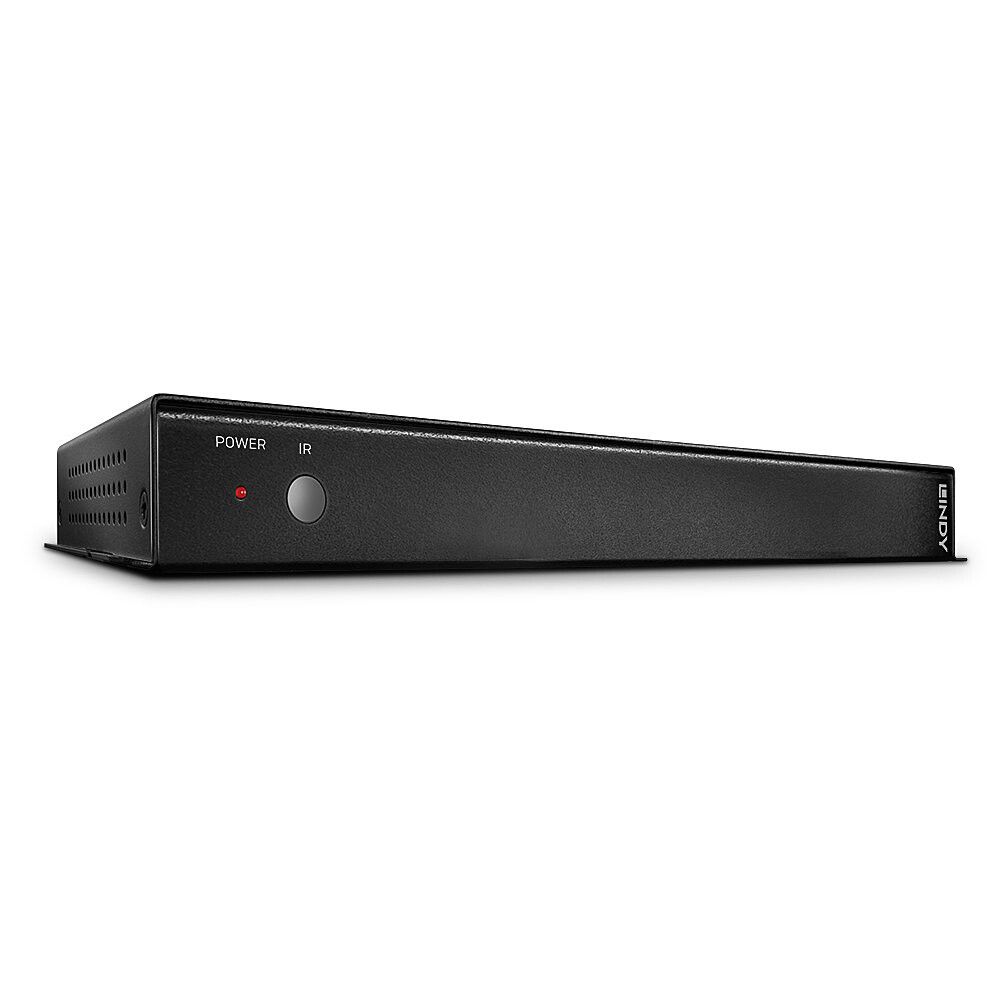

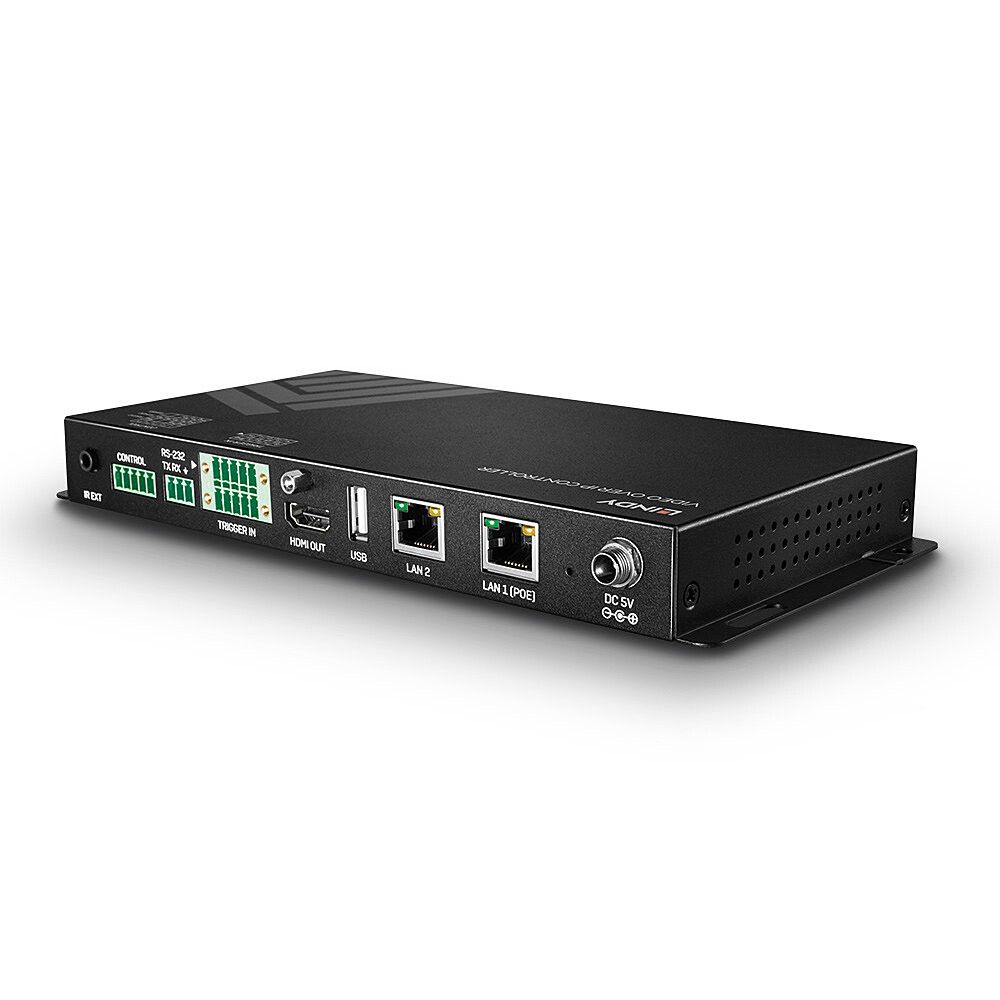

Lindy Video Over IP Controller
GTIN: 4002888382632
Lindy Video Over IP Controller, Black, CE, FCC, RoHS, REACH, 10,100,1000 Mbit/s, 10.2 Gbit/s, 5 V, 2.6 A
Controls both matrix and TV wall configurations using WebGUI presets
Definable display groups to simplify large installations
WebGUI provides the complete status of all connected transmitters (No.38266) and receivers (No.38267), including IP address, channel selection and video preview.
Supports point-to-point (unicast) and multi-to-multi (multicast) routing selections
2 year warranty
This Video Over IP controller enable a fast and reliable control system for 4K Over IP Extender installations. This unit provides a single interface to manage large installations including video walls with the option to create groups to simplify the control tasks. It's also possible to connect an HDMI monitor (max resolution 1080p) directly to this processor. A USB mouse can also be connected to the processor to control the interface without using a PC. Device management is controlled by a web based visual interface with signal preview making setup of the installation fast and intuitive. The convenient POE gigabit interface allows users to install the unit without connecting the included PSU.
Please note: this unit works only when connected to a Gigabit network where several extender transmitter units (No.38266) and receiver units (No.38267) are connected.
| Product Condition | New |
|---|---|
| Manufacturer | Lindy |
| manufacturer code | 38263 |
| Ean | 4002888382632 |
| Modified on | 14-03-2019 |
| Warranty | 2 years |
| Product title | Lindy Video Over IP Controller |
| Long Product Name | Video Over IP Controller |
| Product specifications | DesignProduct colour* Black Certification CE, FCC, RoHS, REACH PerformanceControl display unit* No NetworkEthernet LAN data rates 10,100,1000 Mbit/s Bandwidth 10.2 Gbit/s Ports & interfacesUSB 2.0 ports quantity 1 Number of HDMI outputs 1 Ethernet LAN (RJ-45) ports 2 PowerOutput voltage 5 V Output current 2.6 A Power over Ethernet (PoE) Yes Weight & dimensionsWidth 232 mm Depth 25 mm Weight & dimensionsHeight 108 mm Weight 250 g Packaging dataPackage width 280 mm Package depth 180 mm Package height 70 mm Package weight 1.17 kg Packaging contentAC adapter included Yes Cables included IR Quick installation guide Yes Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 20 - 90% Logistics dataHarmonized System (HS) code 85176990 |
