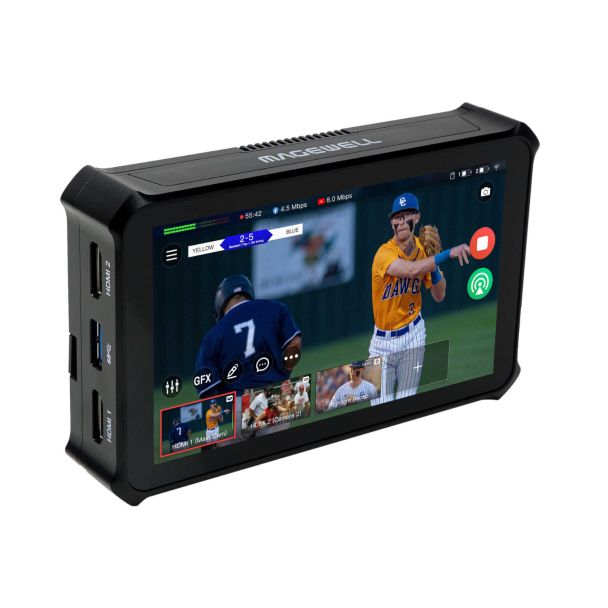

Magewell Director Mini – Compact Solution for Video Switching and Streaming

Name: Magewell Director Mini – Compact Solution for Video Switching and Streaming
Brand: Magewell
SKU: MAG-55110
Price: 1085.263201 EUR
Availability: InStock

GTIN: 6936572401430

In stock

SKU

MAG-55110

Be the first to review this product

Special Price €1,085.26 €889.56 Regular Price €1,291.98

Manufacturers: Magewell
Magewell designs innovative hardware and software for video and audio capture, conversion, and streaming. Their solutions are ideal for video production, live streaming, video conferencing, and AV-over-IP applications.

A portable device that does multi-input switching, graphics, streaming, recording and monitoring

Supports flexible input sources ranging from AV and IP streams to media files
Intuitive user interface and companion app for scene editing and creating shows
Rich output possibilities including RTMP and SRT streams, NDI® HX3 and local displays

Magewell Director Mini – Compact Solution for Video Switching and Streaming

Description

More Information

Reviews

Director Mini Specifications

Video Input

HDMI
- Port: 2x HDMI 2.0 Type-A port
- Typical resolution/frame rate:
  - 4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
  - 1920x1080p 23.98/24/25/29.97/30/50/59.94/60
  - 1920x1080i 25/29.97/30
  - 1280x720p 23.98/24/25/29.97/30/50/59.94/60
  - 720x576p 50/100
  - 720x576i 25/50
  - 720x480p 59.94/60
  - 720x480i 29.97/30
- Color depth: 8/10/12-bit
- Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
USB
- Port: 2x USB 3.0 Type-A port, 1x USB 3.0 Type-C port
- Format: YUYV, MJPG, NV12
- Resolution/frame rate:
  - Single USB-A input: Up to 1920x1080p, 60fps
  - Single USB-C input: Up to 1920x1080p, 60fps
  - Dual USB-A input: Up to 1920x1080p, 50fps + 1920x1080p, 30fps
  - One USB-A input + one USB-C input: Up to 1920x1080p, 60fps + 1920x1080p, 60fps
Phone Camera
- Connection mode: LAN
- Resolution/frame rate: Up to 1080p, 60fps
SRT stream
- Codec: H.264, H.265
- Resolution/frame rate: Up to 1080p, 60fps
RTMP pull
- Codec: H.264
- Resolution/frame rate: Up to 1080p, 60fps
NDI® stream
- NDI|HX2, NDI|HX3, Full NDI
- Codec: H.264, H.265
- Resolution/frame rate: Up to 1080p, 60fps

Audio Input

Mic/line in: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit
Audio input from HDMI port: 2-channel, 48 KHz, 16-bit

Video Output

Streaming and recording
- Codec: H.264, H.265
- Resolution: 1080p, 720p, 540p, 360p
- Frame rate: 60/59.94/50/30/29.97/25/24/23.98/15 fps
- Bitrate:
  - NDI® HX3: up to 62.0Mbps, down to 1.5Mbps
  - Others: up to 30.0Mbps, down to 256kbps
- Key frame interval: customizable
- Profile: High profile, Main profile, Baseline profile
- Bitrate mode: VBR, CBR
USB-C
- Port: 1* USB 3.0 Type-C port
- Output mode: DP-OUT, UVC/UAC
- Resolution: 1920x1080
- Frame rate: 60fps, 50fps
- Sampling format: RGB 4:4:4

Audio Output

Streaming and recording: 2-channel, 16-bit, 48 KHz, aac, 64kbps/96kbps/128kbps
Headphone output: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit
Audio output via Bluetooth device: 2-channel, 48 KHz, 16-bit

Features of USB-A Port

Connect to a USB A/V device, such as webcam, USB microphone, USB speaker, etc.
Connect to a USB modem
Connect to a USB flash drive for transferring media files

Network

Supports network bonding (not available in China Mainland)
Supports Ethernet, WiFi, and Cellular
- Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
- WiFi: 2.4G/5G, Station and Hotspot modes supported
- Cellular: USB modem supported (not supplied)
Supports Bluetooth for audio input or output with Bluetooth devices, and also supports Bluetooth keyboard, etc.
- Bluetooth: BT 5.0

Features

Show
- Supports creating multiple shows in landscape (16:9) or portrait (9:16) mode, and manage them
- Supports creating shows at 60/59.94/50/30/29.97/25/24/23.98 fps
Scenes
- Supports creating multiple scenes in a show, and managing them
- Supports adding various sources, including HDMI, WEBCAM, video, picture, RTMP stream, SRT stream, phone camera, NDI stream, text, and color
- Supports multi-view composition in one scene
- Provides lots of editing tools, including chromakey, crop, transition, etc.
- Supports switching scenes directly or preview first and then switch
- Supports switching scenes with an instant cut or fade effect
Audio
- Supports displaying level and peak through the audio meter
- Supports adjusting the level of each input audio, output, and monitor audio
- Supports global or scene-based settings for audio input sources
- Supports AFV (Audio-follow-video)
- Supports solo monitor
- Supports switching monitor device
GFX
- Supports multiple GFX types, including title, lower third, animated text, digital clock, analog clock, bullet list, social media, logo, scoreboard, timer, stopwatch, custom picture, and text
- Supports HTML graphics
- Supports displaying multiple GFXs, and managing them
- Supports controlling scoreboard, timer, and stopwatch in real time
BGM
- Supports adding BGM for each scene and controlling in real time
Pen
- Annotates on the screen in real time
PTZ control
- Supports controlling PTZ camera via the network, supporting Visca UDP, supported sources include HDMI, WEBCAM (UVC camera), SRT stream, RTMP stream, and NDI stream
Phone Camera control
- Control the phone camera to zoom or focus
Replay
- Capture some of the greatest moments, slow down the action and save highlights
Live stream
- Natively supports streaming to YouTube, Twitch, and Facebook Live
- Supports selecting RTMP or HLS protocol for streaming to YouTube
- Supports streaming via SRT, RTMP, and RTMPS protocols
- Supports two NDI® HX3 outputs, supporting NDI Tally lights
- Supports customizing encoding parameters and selecting the encoding source (Program, HDMI, WEBCAM) for ISO streaming
- Supports streaming to two destinations simultaneously
- Supports sending live comments as an overlay into the video feed when streaming to social media
Record
- Supports customizing encoding parameters
- Supports ISO recording, to record two different sources simultaneously, or record two-channel images with different quality for one source
- Supports saving recording files in MP4 or MOV format to local storage or SD card
- Supports saving screenshot files in PNG format to local storage or SD card
- Supports splitting recording files by time or size, up to 4 hours or 16GB
- Supports exporting or downloading files through computer, SD card, USB flash drive, App, or Web UI

Director Utility App

OS version: iOS 11 and later, Android 7.0 and later
Phone Camera: Use a phone as a camera
- Stream images taken by the phone to Director device
- Stream images taken by the phone to a destination via SRT
Remote Assistant: Control Director device remotely
- Switch and manage scenes, set switch mode and effect, implement FTB, free scene, and control PTZ camera and phone camera
- Switch and manage GFX, edit GFX text and picture in real time, and control scoreboard, timer and stopwatch
- Control audio, including adjusting audio level, switch monitor device, mute audio and monitor audio exclusively
- Start/stop recording, take screenshots, and manage album files
- Set streaming servers, start/stop streaming, view streaming status, and send live comment as overlay
- Control and manage BGM
- Execute shortcut functions
- View input information
- View real-time device status
- Power off the device remotely

Web UI

Set and manage device, view input information, configure networks, update firmware
Preview and monitor the show, switch and manage shows, scenes, GFXs, control audio, set shortcuts, send live comment as overlay, etc.
Set encoding parameters
Set streaming servers, start/stop streaming, view streaming status
Start/stop recording, take screenshots, and manage album files
Control and manage BGM
Manage media files
View real-time device status
Supports registering Magewell Control Hub (V2.1.20 and later) for centralized management
System requirement: Windows 10 19H1 and above, macOS 10.12 and above, Linux
