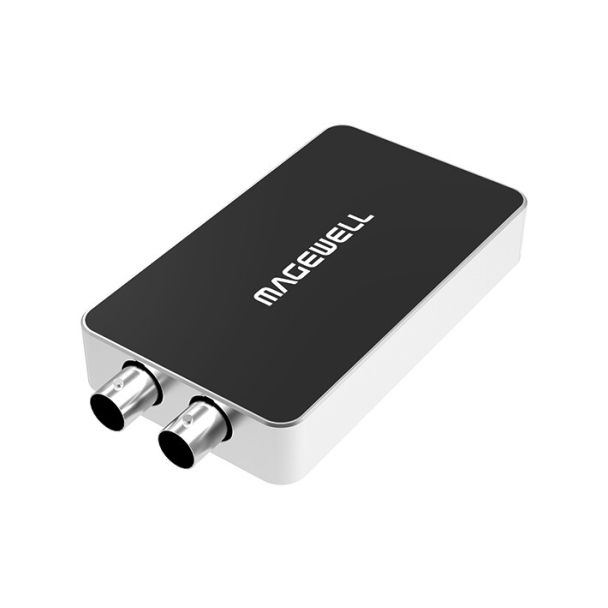

Magewell SDI Plus video capturing device USB 2.0
GTIN: 6936572400877
2048×1080 pixels, 2 x 3.5mm, USB, 2 x SDI, 110.7 x 56.8 x 17mm
USB Capture SDI Plus
One-channel 2K capture device
| Product Condition | New |
|---|---|
| Manufacturer | Magewell |
| manufacturer code | 32050 |
| Ean | 6936572400877 |
| Modified on | 28-11-2022 |
| Product title | Magewell SDI Plus video capturing device USB 2.0 |
| Long Product Name | 2048×1080 pixels, 2 x 3.5mm, USB, 2 x SDI, 110.7 x 56.8 x 17mm |
| Product specifications | PerformanceProduct colour* Black, Brushed steel, Stainless steel Internal* No Host interface* USB 2.0 Video capture resolution (max) 2048 x 1080 pixels Bandwidth 0.16 Gbit/s LED indicators Yes VideoMaximum frame rate 120 fps Supported video modes 480p, 576p, 720p, 1080p AudioChannels quantity 2 channels Ports & interfacesUSB port* Yes USB version 2.0/3.2 Gen 1 (3.1 Gen 1) USB ports quantity 1 Audio (L/R) in 1 Audio (L/R) out 1 S-Video inputs quantity 1 S-Video outputs quantity 1 PowerPower supply type* DC Input voltage 5 V Output current 0.5 A SoftwareWindows operating systems supported Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 Mac compatibility Yes Mac operating systems supported Mac OS X 10.12 Sierra, Mac OS X 10.9 Mavericks Other operating systems supported ChromeOS Operational conditionsOperating temperature (T-T) 0 - 45 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 5 - 90% Weight & dimensionsWidth 56.8 mm Depth 110.7 mm Height 17 mm Packaging contentCables included USB |
| Essential qualities |
|
| Product colour | Black, Brushed steel, Stainless steel |
| Internal | No |
| Host interface | USB 2.0 |
| Power supply type | DC |
| USB port | Yes |
