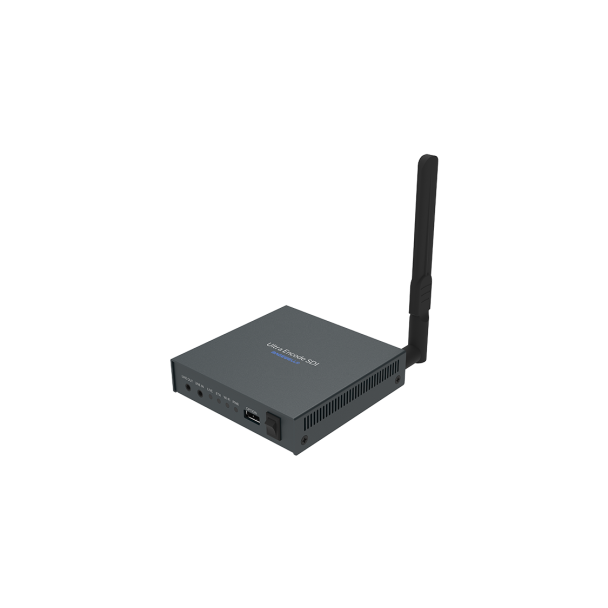

Magewell Ultra Encode SDI
GTIN: 6936572401379
The **Magewell Ultra Encode SDI** is a robust and versatile streaming and encoding device supporting standard protocols like **RTMP, RTMPS, RTSP, SRT, HLS**, and **HTTP**, with H.264 and H.265 video encoding. It accepts 3G/2K/HD/SD SDI inputs and offers a maximum output resolution of **1080p60**. Ideal for broadcasting, training, and live events, this encoder delivers professional video quality with simple management via a web-based interface or on-device buttons.
The **Magewell Ultra Encode SDI** is a high-quality and reliable encoder for live streaming and encoding, designed to meet the needs of broadcasting, live events, and videoconferencing. It supports SDI input resolutions up to **2048x1080 at 60fps** and provides an HDMI output for real-time monitoring. Video encoding is available in **H.264/AVC** and **H.265/HEVC**, with configurable bitrates ranging from 32kbps to 16Mbps. The device supports both constant (CBR) and variable bitrate (VBR) streaming to accommodate different network conditions.
With compatibility for a wide range of protocols, including **RTMP, RTMPS, RTSP, SRT, HLS**, and **HTTP**, the Magewell Ultra Encode SDI enables streaming to platforms such as YouTube Live, Facebook Live, and Twitch, as well as custom servers. It can be controlled via a **web interface** and a dedicated app, providing real-time monitoring of encoding status and network connection. Additionally, it supports DHCP, PTP, and Bonjour protocols, making it easy to integrate into complex network environments.
Compact and durable, the encoder features an intuitive interface and professional-grade video stream management, making it an effective solution for modern IP-based workflows. Its easy-to-use design and advanced configuration options make the Ultra Encode SDI an excellent choice for both mobile and fixed streaming setups.
| Category | Technical Details |
|---|---|
| Audio | Input: SDI embedded, 2-channel LPCM |
| Video | Input: SDI x1 Resolution: Up to 2048 x 1080 Encoding: H.264/AVC (Base/Main/High Profile up to level 5.1); H.265/HEVC (Main/Main10 Profile up to level 5.1) Bitrate: 32-16000kbps Frame rate: 1-60fps |
| Connections | 10/100/1000Mbps Ethernet USB Type-A |
| Protocols | RTMP, RTMPS, RTSP, SRT, HLS, TS over UDP, TS over RTP DHCP, PTPv1, PTPv2, Bonjour |
| Physical Specifications | Dimensions: 116.5mm x 90.3mm x 23.5mm Weight: 300g Operating temperature: 0-40°C Power: DC 5V |
| Product Condition | New |
|---|---|
| Manufacturer | Magewell |
| manufacturer code | 53120 |
| Ean | 6936572401379 |
| Modified on | 07-02-2024 |
| Product title | Magewell Ultra Stream SDI video servers/encoder 2048 x 1080 pixels 60 fps |
| Long Product Name | 2048x1080 pixels, 60 fps, H.264 or HEVC |
| Product specifications | VideoMaximum video resolution* 2048 x 1080 pixels Maximum frame rate* 60 fps Video compression formats H.264, HEVC Channels quantity 16 channels DesignProduct colour Black LED indicators Yes NetworkWi-Fi Yes PowerPower consumption (typical) 7.2 W Input voltage 5 V Weight & dimensionsWidth 94.2 mm Depth 94.2 mm Height 22.3 mm Packaging contentPower adapter included Yes Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 70 °C Operating relative humidity (H-H) 5 - 90% |
