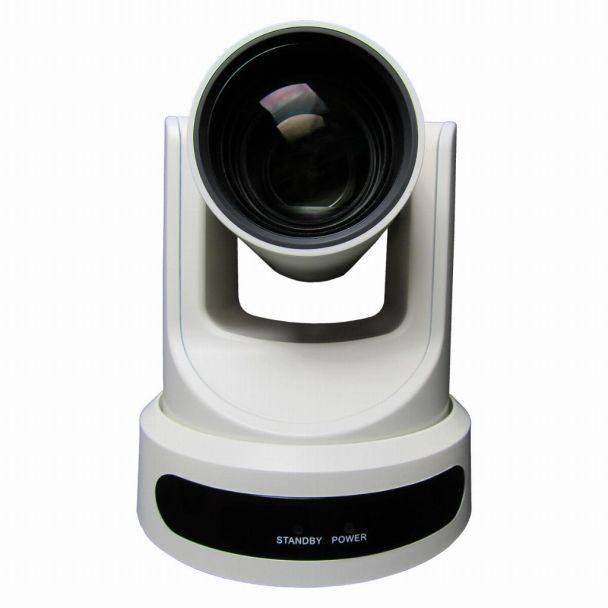

PTZOptics 20X-SDI Spherical IP security camera Indoor 1920 x 1080 pixels Ceiling
GTIN: 0737993158936
20x, 3G SDI, HDMI, RTSP/RTMP, 1080p, 60Hz, VISCA Control + International G Style Power Supply
Welcome to the industries most advanced live streaming pan, tilt and zoom cameras. Built for quality, made for professional video productions.
Meet the Professional PTZ
PTZOptics SDI camera models are most most advanced PTZ cameras we have ever made. With game changing optics and options for video professionals
Get to know your PTZOptics SDI Camera
In just 10 minutes, see how easy it is to setup this advanced live streaming camera to work with your video production workflow.
Unparalleled Versatility
Remote camera control options when and where you want them. Whether the controls are built-in to your favorite video production software or provided by one of our hardware joystick controllers, take control when and where you need it. Try our free IP Camera Controllers for Mac, PC and OBS (Plugin) here.
| Product Condition | New |
|---|---|
| Manufacturer | Ptzoptics |
| manufacturer code | PT20X-SDI-WH-G2-G |
| Ean | 0737993158936 |
| Mounting type | Ceiling |
| Product colour | White |
| Form factor | Spherical |
| Modified on | 03-12-2018 |
| Product title | PTZOptics 20X-SDI Spherical IP security camera Indoor 1920 x 1080 pixels Ceiling |
| Long Product Name | 20x, 3G SDI, HDMI, RTSP/RTMP, 1080p, 60Hz, VISCA Control + International G Style Power Supply |
| Product specifications | PerformanceType* IP security camera Placement supported* Indoor Connectivity technology* Wired PTZ control Yes PTZ protocols Pelco-P/D DesignForm factor* Spherical Mounting type* Ceiling Product colour* White CameraMinimum illumination 0.5 lx Field of view (FOV) angle 60.7° Lens viewing angle, horizontal 72.5° Lens viewing angle, vertical 44.8° Tilt angle range -30 - 90° Tilt speed 69.9 °/sec Pan range -170 - 170° Pan speed 100 °/sec White balance Auto, Indoor, Manual, One push, Outdoor Camera shutter speed 1/30 - 1/10000 s Image sensorOptical sensor size 25.4 / 2.7 mm (1 / 2.7") Progressive scan Yes Sensor type* CMOS Lens systemZoom capability Yes Optical zoom 20x Digital zoom 32x Focal length range 4.42 - 88.5 mm Maximum aperture number 2.8 Minimum aperture number 1.8 VideoMaximum resolution* 1920 x 1080 pixels Total megapixels* 2.12 MP Video formats supported H.264, H.265, M-JPEG Supported graphics resolutions 320 x 240, 720 x 480, 720 x 576, 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) Supported video modes 480i, 576i, 720p, 1080i, 1080p Frame rate 60 fps Video streaming Yes Noise reduction Yes Noise reduction technology Ultra 2D noise reduction, Ultra 3D noise reduction Full HD Yes Flip & mirror Yes Bit rate control Variable Bit Rate (VBR) Bit rate 128Kbps - 8192Kbp AudioAudio formats supported AAC AudioSignal-to-Noise Ratio (SNR) 55 dB NetworkEthernet LAN* Yes Ethernet interface type Gigabit Ethernet Supported network protocols TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast Wi-Fi* No Bluetooth* No Cabling technology 10/100/1000Base-T(X) StorageBuilt-in HDD* No Ports & interfacesEthernet LAN (RJ-45) ports 1 RS-232 ports 1 RS-485 ports 1 Headphone outputs 1 USB port Yes HDMI ports quantity 1 DC-in jack Yes Management featuresRemotely operated Yes PowerPower source type* DC Power consumption (max) 12 W DC output voltage 12 DC output current 1 A Operational conditionsOperating temperature (T-T) -5 - 40 °C Storage temperature (T-T) -20 - 60 °C System requirementsWindows operating systems supported Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 Mac compatibility Yes Mac operating systems supported Yes Linux operating systems supported Yes Weight & dimensionsWidth 142 mm Depth 164 mm Height 189 mm Weight 1.41 kg Package width 229 mm Package depth 229 mm Package height 254 mm Package weight 2.45 kg Packaging contentNumber of cameras* 1 Remote control included Yes |
| Essential qualities |
|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Sensor type | CMOS |
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2.12 MP |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Power source type | DC |
| Number of cameras | 1 |
| Built-in HDD | No |
