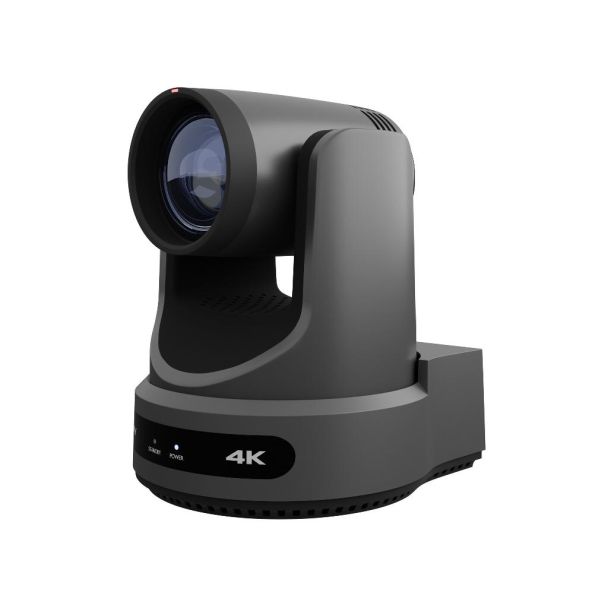

PTZOptics PT20X-LINK-4K-GY security camera Turret IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/Wall/Pole
GTIN: 0840170500739
In stock
SKU
PTZ-PT20X-LINK-4K-GY
Special Price €2,852.77 €2,338.34 Regular Price €3,317.18
PTZOptics PT20X-LINK-4K-GY, IP security camera, Indoor & outdoor, Wired, Auto pan, Preset point, Pelco-P/D, Ceiling/Wall/Pole
Your Dante Workflow is About to Get Easier
Ready to add video to your Dante setup? With Dante AV-H™ and the latest in auto-tracking capabilities, the Link 4K fits easily into even the most complex Dante design or workflow. The Link 4K combines broadcast quality with Dante’s simple discovery, set up and management, simplifying and professionalizing any video production installation.
What is Dante AV-H?
Dante AV-H brings device interoperability and the power of Dante to H.26x endpoints. With Dante AV-H, all video and audio routing, configuration, and management of devices is done with one easy to use platform. The Link 4K will automatically sync up with your Dante system clock leader ensuring seamless audio and video synchronization, and is able to output Dante AV-H video on your network natively, along with audio sources connected to the 3.5mm audio input.
Designed with the Future in Mind
Every Link 4K camera features SDI, HDMI, USB, and IP output for unparalleled performance and versatility. The Link 4K features 4K at 60fps over HDMI, USB, and IP. Using technology by Dante, the Link 4K can also provide 4K at 60fps resolution over Dante AV-H.
The Link 4K offers built-in auto-tracking capabilities — no need to run software on another computer — freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Link 4K can fit seamlessly into any production scenario.
Pan, Tilt, Zoom, Track.
Control your production from behind the scenes – or right in front of them. The Link 4K’s auto-tracking can lock onto a specific person, even while other people are in frame. Users can switch between on-stage presenters with the click of a button. The Link 4K can track subjects up to 300 feet away.
In addition to the Link 4K’s auto-tracking features, users will also have access to our latest Web UI — updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.
Discreet Mounting Options
Mount your PTZOptics Link 4K camera above, below or beside the action to capture the ideal view every time. The Link 4K’s automatic video inversion feature senses the camera’s orientation and saves time on installation and setup.
Click the links below to learn more about our PTZ mounts:
- Wall Mounts
- Ceiling Mounts
- Pole Mounts
- Outdoor Enclosures
Take Control Your Way
Users can control Link 4K cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster — or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.
Link 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and Youtube.
Free Software for PTZOptics Users
PTZOptics cameras are compatible with a wide range of free software solutions, including:
- Camera Management Platform (CMP) for camera management, control, color correction, auto-tracking
- Control apps for desktop and mobile devices
- Plugins and integrations for popular platforms, including OBS and Twitch
- Camera configuration and management tools
- Support and testing utilities
- And more!
To view a list of free software compatible with Link 4K cameras, check out the Software tab at the top of this page. View a full list of our free software here.
Unrivaled Warranties
With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.
The Link 4K comes with a 5-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty. For more information, view our complete warranty documentation here.
Unparalleled Value, Award-Winning Support
When you reach out to PTZOptics for support, you won’t get an automated system — you’ll get a team of in-house, US-based experts ready to help. Connect with us via:
- Phone, email, and chat
- Our detailed knowledge base and forum
- Our online Udemy course
- Our support ticket system
- Our Facebook user group
- Our weekly live shows
Ready to add video to your Dante setup? With Dante AV-H™ and the latest in auto-tracking capabilities, the Link 4K fits easily into even the most complex Dante design or workflow. The Link 4K combines broadcast quality with Dante’s simple discovery, set up and management, simplifying and professionalizing any video production installation.
What is Dante AV-H?
Dante AV-H brings device interoperability and the power of Dante to H.26x endpoints. With Dante AV-H, all video and audio routing, configuration, and management of devices is done with one easy to use platform. The Link 4K will automatically sync up with your Dante system clock leader ensuring seamless audio and video synchronization, and is able to output Dante AV-H video on your network natively, along with audio sources connected to the 3.5mm audio input.
Designed with the Future in Mind
Every Link 4K camera features SDI, HDMI, USB, and IP output for unparalleled performance and versatility. The Link 4K features 4K at 60fps over HDMI, USB, and IP. Using technology by Dante, the Link 4K can also provide 4K at 60fps resolution over Dante AV-H.
The Link 4K offers built-in auto-tracking capabilities — no need to run software on another computer — freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Link 4K can fit seamlessly into any production scenario.
Pan, Tilt, Zoom, Track.
Control your production from behind the scenes – or right in front of them. The Link 4K’s auto-tracking can lock onto a specific person, even while other people are in frame. Users can switch between on-stage presenters with the click of a button. The Link 4K can track subjects up to 300 feet away.
In addition to the Link 4K’s auto-tracking features, users will also have access to our latest Web UI — updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.
Discreet Mounting Options
Mount your PTZOptics Link 4K camera above, below or beside the action to capture the ideal view every time. The Link 4K’s automatic video inversion feature senses the camera’s orientation and saves time on installation and setup.
Click the links below to learn more about our PTZ mounts:
- Wall Mounts
- Ceiling Mounts
- Pole Mounts
- Outdoor Enclosures
Take Control Your Way
Users can control Link 4K cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster — or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.
Link 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and Youtube.
Free Software for PTZOptics Users
PTZOptics cameras are compatible with a wide range of free software solutions, including:
- Camera Management Platform (CMP) for camera management, control, color correction, auto-tracking
- Control apps for desktop and mobile devices
- Plugins and integrations for popular platforms, including OBS and Twitch
- Camera configuration and management tools
- Support and testing utilities
- And more!
To view a list of free software compatible with Link 4K cameras, check out the Software tab at the top of this page. View a full list of our free software here.
Unrivaled Warranties
With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.
The Link 4K comes with a 5-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty. For more information, view our complete warranty documentation here.
Unparalleled Value, Award-Winning Support
When you reach out to PTZOptics for support, you won’t get an automated system — you’ll get a team of in-house, US-based experts ready to help. Connect with us via:
- Phone, email, and chat
- Our detailed knowledge base and forum
- Our online Udemy course
- Our support ticket system
- Our Facebook user group
- Our weekly live shows
| Product Condition | New |
|---|---|
| Manufacturer | Ptzoptics |
| manufacturer code | PT20X-LINK-4K-GY |
| Ean | 0840170500739 |
| Modified on | 13-02-2023 |
| Warranty | 5 years |
| Product title | PTZOptics PT20X-LINK-4K-GY security camera Turret IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/Wall/Pole |
| Long Product Name | 1/1.8 inch, UHD, CMOS, 8.42MP, F1.8/F2.6, 1/30s - 1/10000s, HDMI 2.0, USB 2.0, RS-232/RS-485, 3.5mm, DC 12V/PoE+ (802.3at), 18W, 168.4x141.5x164.5 mm, 1.47 kg, Gray |
| Product specifications | PerformanceType* IP security camera Placement supported* Indoor & outdoor Connectivity technology* Wired PTZ control Yes PTZ modes Auto pan, Preset point PTZ protocols Pelco-P/D Auto-tracking Yes Preset points Yes Built-in light Yes DesignForm factor* Turret Mounting type* Ceiling/Wall/Pole Product colour* Grey Housing material Aluminium, Plastic CameraCamera pan control Yes Camera tilt control Yes Minimum illumination 0.5 lx Lens viewing angle, horizontal 72.5° Lens viewing angle, vertical 44.8° Tilt angle range -30 - 90° Tilt speed 69.9 °/sec Pan range -170 - 170° Pan speed 100 °/sec White balance Auto, Indoor, Manual, One push, Outdoor Camera shutter speed 1/30 - 1/10000 s Image sensorOptical sensor size 25.4 / 1.8 mm (1 / 1.8") Effective sensor resolution 8.42 pixels Progressive scan Yes Sensor type* CMOS Lens systemZoom capability Yes Optical zoom 20x Digital zoom 16x Number of lenses* 1 Focal length range 4.4 - 52.8 mm VideoMaximum resolution* 3840 x 2160 pixels Video formats supported H.264, H.265, M-JPEG Supported graphics resolutions 320 x 240, 720 x 480, 720 x 576, 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 Supported video modes 480i, 576i, 720p, 1080i, 1080p Frame rate 60 fps Video streaming Yes Noise reduction Yes Noise reduction technology Ultra 2D noise reduction, Ultra 3D noise reduction Flip & mirror Yes VideoBit rate control Variable Bit Rate (VBR) Bit rate 128Kbps - 8192Kbp AudioAudio formats supported AAC Signal-to-Noise Ratio (SNR) 55 dB NetworkEthernet LAN* Yes Ethernet interface type Gigabit Ethernet Supported network protocols TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast Wi-Fi* No Bluetooth* No StorageBuilt-in HDD* No Ports & interfacesEthernet LAN (RJ-45) ports 1 RS-232 ports 2 RS-485 ports 1 Headphone outputs 1 USB port Yes HDMI ports quantity 1 DC-in jack Yes Management featuresRemotely operated Yes Smartphone/tablet remote support Yes PowerPower source type* DC Power consumption (max) 12 W DC output voltage 12 DC output current 1 A Operational conditionsOperating temperature (T-T) -5 - 40 °C Storage temperature (T-T) -20 - 60 °C System requirementsWindows operating systems supported Windows 7, Windows 8, Windows Vista, Windows XP Mac operating systems supported Yes Linux operating systems supported Yes Weight & dimensionsWidth 168.4 mm Depth 141.5 mm Height 164.5 mm Weight 1.47 kg Packaging contentNumber of cameras* 1 Cables included AC, USB Battery included Yes Manual Yes |
| Essential qualities |
|
