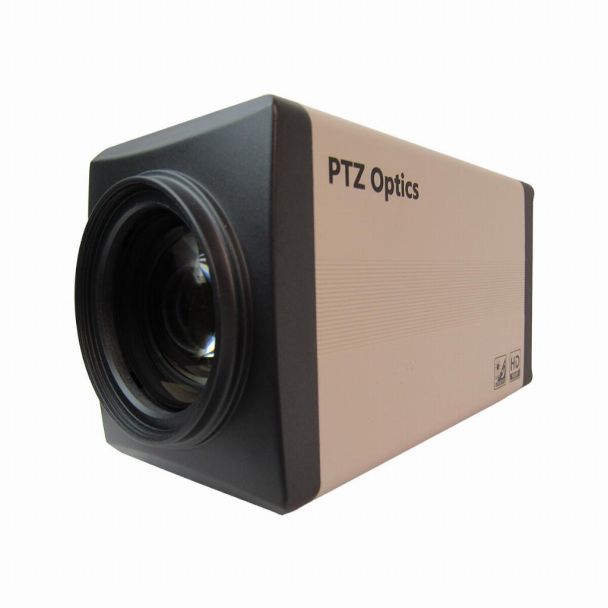

PTZOptics ZCam 20X 2.07 MP Black, White 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.7 mm (1 / 2.7")
GTIN: 0737993158363
1/2.7” CMOS, 2.07 MP, FHD 1920 x 1080 px, 20X, FOV 60.7°, 3G-SDI, IP Network, Plug Type G
PTZOptics ZCAM models are the the ideal way to affordably add more options for your video production team. The 20X-ZCAM uses the same lens as our 20X PTZ models for seamless color matching.
Be seen in 1080p
Crystal clear High Definition 1080p video with lossless 20X optical zoom letting you get up close to see and interact with your team.
Panasonic CMOS Sensor
Full 1080p quality from a built-in 1/2.7 inch HD CMOS Sensor.
3G SDI Connectivity
3G SDI is a preferred cabling for 1080p video over long distances.
RS-485 Camera Control
The RS-485 control interface can be used with VISCA or Pelco commands for zoom controls.
Built-in Motion Detection
A great feature for including the video stream into a security system.
Live RTMP Streaming
Every PTZOptics camera has the ability to live stream directly from the camera to your favorite CDN. Simply plugin your CDN’s RTMP Streaming information into the IP interface of your camera and start streaming! (See this tutorial video).
Power Over Ethernet
PTZOptics HD-SDI camera models also include PoE (Power Over Ethernet) which can learn more about here. The Ethernet port can be used for power, control and video streaming.
IP Video Streaming
Every PTZOptics camera include IP Streaming and network control. Taking things a step further we offer our software open source so developers can customize any experience.
| Product Condition | New |
|---|---|
| Manufacturer | Ptzoptics |
| manufacturer code | PT20X-ZCAM-G |
| Ean | 0737993158363 |
| Product colour | Black, White |
| Modified on | 03-12-2018 |
| Product title | PTZOptics ZCam 20X 2.07 MP Black, White 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.7 mm (1 / 2.7") |
| Long Product Name | 1/2.7” CMOS, 2.07 MP, FHD 1920 x 1080 px, 20X, FOV 60.7°, 3G-SDI, IP Network, Plug Type G |
| Product specifications | CameraMegapixel (approx.)* 2.07 MP Sensor type CMOS Optical sensor size 25.4 / 2.7 mm (1 / 2.7") Optical zoom 20x Focal length range 4.42 - 88.5 mm Horizontal field of view (wide) 60.7° Horizontal field of view (tele) 3.4° Minimum illumination 0.05 lx Signal-to-Noise Ratio (SNR) 55 dB Aperture range (F-F) 1.8 - 2.8 Slowest camera shutter speed 25 s Fastest camera shutter speed 1/10000 s 3D NR (Noise Reduction) Yes VideoHD type* Full HD Maximum video resolution* 1920 x 1080 pixels Maximum frame rate* 60 fps Resolution at capture speed 1920x1080@25fps, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@60fps Supported video modes 720p, 1080i, 1080p Supported graphics resolutions 1920 x 1080 (HD 1080) DesignProduct colour* Black, White Ports & interfacesRS-485 ports 1 Ethernet LAN (RJ-45) ports 1 DC-in jack Yes 3G-SDI output Yes PowerPower source type DC, PoE DC input voltage 12 V Packaging contentPower supply included Yes Quick start guide Yes NetworkNetwork streaming Yes Weight & dimensionsWidth 60.9 mm Depth 144.7 mm Height 76.2 mm Weight 640 g |
| Essential qualities |
|
| Megapixel (approx.) | 2.07 MP |
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| HD type | Full HD |
