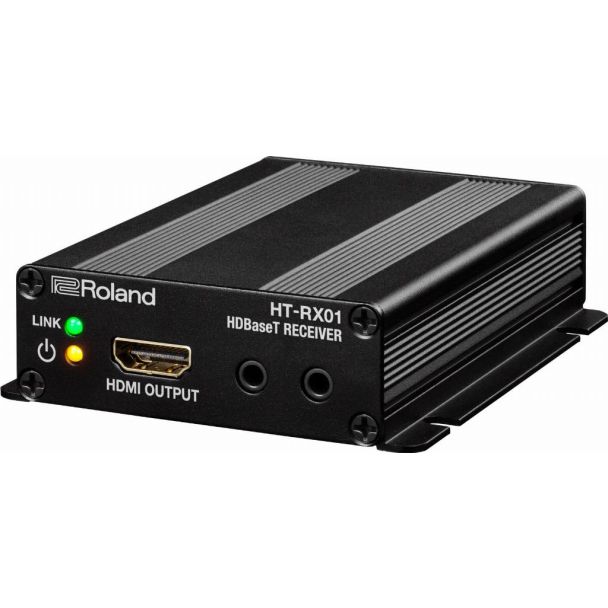

Roland HT-RX01 AV extender AV receiver Black
GTIN: 4957054507152
HT-RX01, HDMI 1.4, RJ-45, RS-232, HDBaseT, HDCP 2.0, 81x93x24 mm
Roland XS series output receiver
The HT-RX01 can be used as a receiver for the HDBaseT output from XS series multi-format matrix switchers. Using the RS-232C signal transmission function of the XS series lets you transmit RS-232C signals input to the XS series device along with video and audio signals. This can achieve audio/video transmission in school auditoriums, company conference halls, and other large spaces.
Long-distance HDMI transmission
Connecting an Ethernet cable to the HT-TX01 or HT-RX01 enables transmission of HDMI signals over a distances of up to 100 meters. This makes it possible to connect video cameras, Blu-ray decks, switchers, and other source equipment to LCD monitors, projectors, and other display devices. In addition to HDMI signals, RS-232C signals can also be transmitted, making it possible to send control signals along with video and audio reducing system wiring.
| Product Condition | New |
|---|---|
| Manufacturer | Roland |
| manufacturer code | HT-RX01 |
| Ean | 4957054507152 |
| Modified on | 02-01-2017 |
| Product title | Roland HT-RX01 AV extender AV receiver Black |
| Long Product Name | HT-RX01, HDMI 1.4, RJ-45, RS-232, HDBaseT, HDCP 2.0, 81x93x24 mm |
| Product specifications | FeaturesType* AV receiver Maximum resolution* 1920 x 1200 pixels Maximum transfer distance 100 m Maximum refresh rate 75 Hz LED indicators Link, Power Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Supported graphics resolutions 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA) Audio formats supported PCM HDCP Yes 3D Yes Product colour Black HDBaseT certified Yes Ports & interfacesConnectivity technology* Wired RJ-45 input ports 1 Number of HDMI outputs 1 RS-232 input ports 1 Ports & interfacesDC-in jack Yes PowerOperating voltage (receiver) 5 V Current 2 A Operational conditionsOperating temperature (T-T) 0 - 40 °C Storage temperature (T-T) -20 - 60 °C Operating relative humidity (H-H) 10 - 85% Storage relative humidity (H-H) 10 - 85% Weight & dimensionsReceiver dimensions (WxDxH) 81 x 93 x 24 mm Receiver weight 300 g Packaging contentAC adapter included Yes Cables included RS-232 Manual Yes |
| Essential qualities |
|
| Type | AV receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Connectivity technology | Wired |
