Roland VC-1-DL video signal converter 1920 x 1080 pixels
GTIN: 4957054503611
VC-1-DL, HDMI, SDI, HDCP, TRS, USB, DC 9V, 150x130x30 mm
Roland's new video converters address the demand for high-quality, lossless video and audio converters for live/post production as well as installed systems. They include the Roland VC-1-HS (HDMI to SDI), VC-1-SH (SDI to HDMI), VC-1-DL (Bi-directional SDI/HDMI with audio/video delay and frame sync) and VC-1-SC (Up/Down/Cross Scan converterto/from SDI/HDMI).
The VC-1 Video Converter series
The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.
The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.

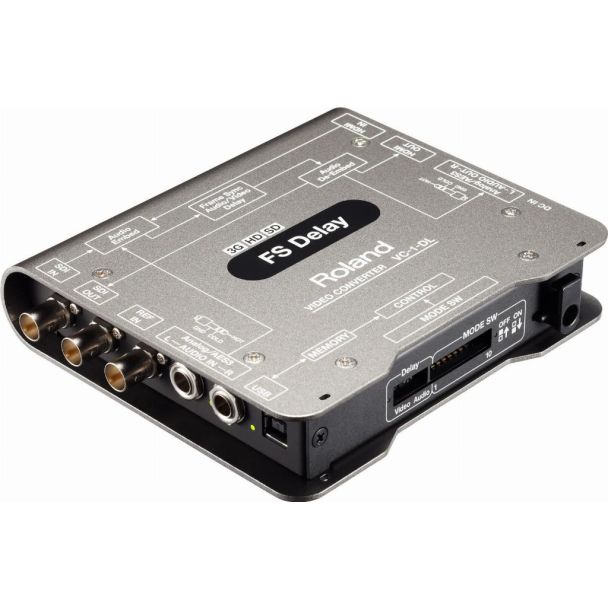

Roland VC-1-DL
In live production as you add more video components to a signal flow, latency is introduced. The VC-1-DL converter not only allows bidirectional conversion of SDI/HDMI but it also provides frame sync and delay adjustment of up to 9 fields (4.5 frames) for audio and video independently. This is helpful when keeping various types of cameras in sync as well as ensuring a projector stays in sync with an LED wall. In this way it is an indispensable tool live production, broadcast and recording applications.
Roland VC-1 Series Selected for STAR Award at NAB 2013.
The Roland VC-1 Series Video Converters were the recipients of TV Technology’s coveted STAR Award presented at the 2013 NAB Show. Now celebrating its 13th anniversary, the STAR Awards (for Superior Technology Award Recipient) are designed to celebrate and showcase the preeminent technological innovations available to the media industry.
| Product Condition | New |
|---|---|
| Manufacturer | Roland |
| manufacturer code | VC-1-DL |
| Ean | 4957054503611 |
| Modified on | 18-04-2015 |
| Product title | Roland VC-1-DL video signal converter 1920 x 1080 pixels |
| Long Product Name | VC-1-DL, HDMI, SDI, HDCP, TRS, USB, DC 9V, 150x130x30 mm |
| Product specifications | FeaturesProduct colour Black, Grey VideoMaximum video resolution* 1920 x 1080 pixels Ports & interfacesHost interface* HDMI Output interface* HDMI/BNC Audio output TRS PowerOperating voltage 9 V Power consumption (typical) 8 W Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 150 mm Depth 130 mm Height 30 mm Weight 500 g Packaging dataCables included AC AC adapter included Yes Manual Yes Quantity 1 Other featuresSupported resolutions 1920x1080, 1280x720, 720x480, 720x576 |
| Essential qualities |
|
| Maximum video resolution | 1920 x 1080 pixels |
| Host interface | HDMI |
| Output interface | HDMI/BNC |
