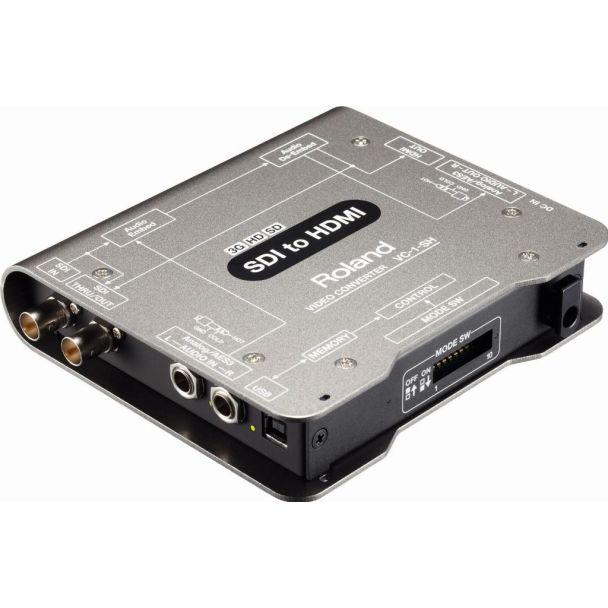

Roland VC-1-SH video signal converter 1920 x 1080 pixels
GTIN: 4957054503598
VC-1-SH, SDI, HDMI, HDCP, TRS, DC 9V, 150x130x30 mm
CONVERSION OF VIDEO AND AUDIO SIGNALS FROM SDI INPUT TO HDMI OUTPUT
Roland's new video converters address the demand for high-quality, lossless video and audio converters for live/post production as well as installed systems. They include the Roland VC-1-HS (HDMI to SDI), VC-1-SH (SDI to HDMI), VC-1-DL (Bi-directional SDI/HDMI with audio/video delay and frame sync) and VC-1-SC (Up/Down/Cross Scan converterto/from SDI/HDMI).
The VC-1 Video Converter series
The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.
The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.
Roland VC-1-SH
The cost of SDI monitoring sometimes can be prohibitive for certain applications. The VC-1-SH converter allows you to convert an SDI signal to HDMI, providing a more cost effective monitoring solution. This converter is also complimentary to the Roland V-40HD multi-format video mixer when you want to use an SDI camera as an input to the mixer.
Roland VC-1 Series Selected for STAR Award at NAB 2013.
The Roland VC-1 Series Video Converters were the recipients of TV Technology’s coveted STAR Award presented at the 2013 NAB Show. Now celebrating its 13th anniversary, the STAR Awards (for Superior Technology Award Recipient) are designed to celebrate and showcase the preeminent technological innovations available to the media industry.
| Product Condition | New |
|---|---|
| Manufacturer | Roland |
| manufacturer code | VC-1-SH |
| Ean | 4957054503598 |
| Modified on | 18-04-2015 |
| Product title | Roland VC-1-SH video signal converter 1920 x 1080 pixels |
| Long Product Name | VC-1-SH, SDI, HDMI, HDCP, TRS, DC 9V, 150x130x30 mm |
| Product specifications | FeaturesProduct colour Black, Grey VideoMaximum video resolution* 1920 x 1080 pixels Ports & interfacesHost interface* SDI (BNC) Output interface* SDI/HDMI Audio output TRS PowerExternal power adapter Yes Operating voltage 9 V Operational conditionsOperating temperature (T-T) 0 - 40 °C Weight & dimensionsWidth 150 mm Depth 130 mm Height 30 mm Weight 500 g Packaging dataCables included AC AC adapter included Yes Manual Yes Quantity 1 Other featuresSupported resolutions 1920x1080, 1280x720, 720x487, 720x576, 720x480 |
| Essential qualities |
|
| Maximum video resolution | 1920 x 1080 pixels |
| Host interface | SDI (BNC) |
| Output interface | SDI/HDMI |
