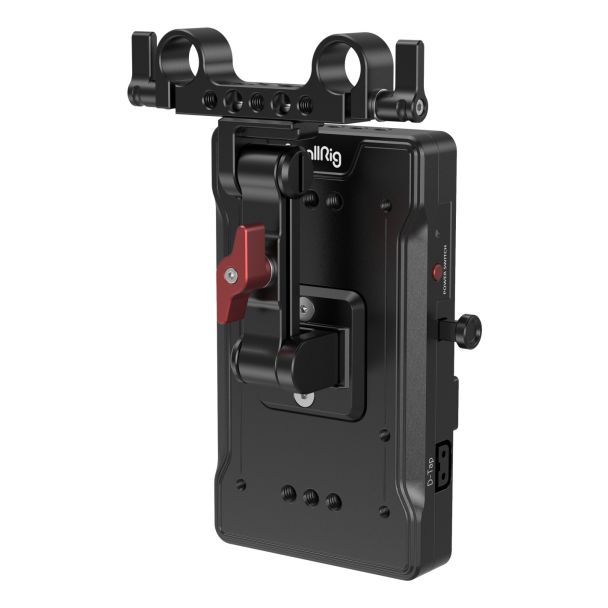

SmallRig 3204B camera mounting accessory Battery plate

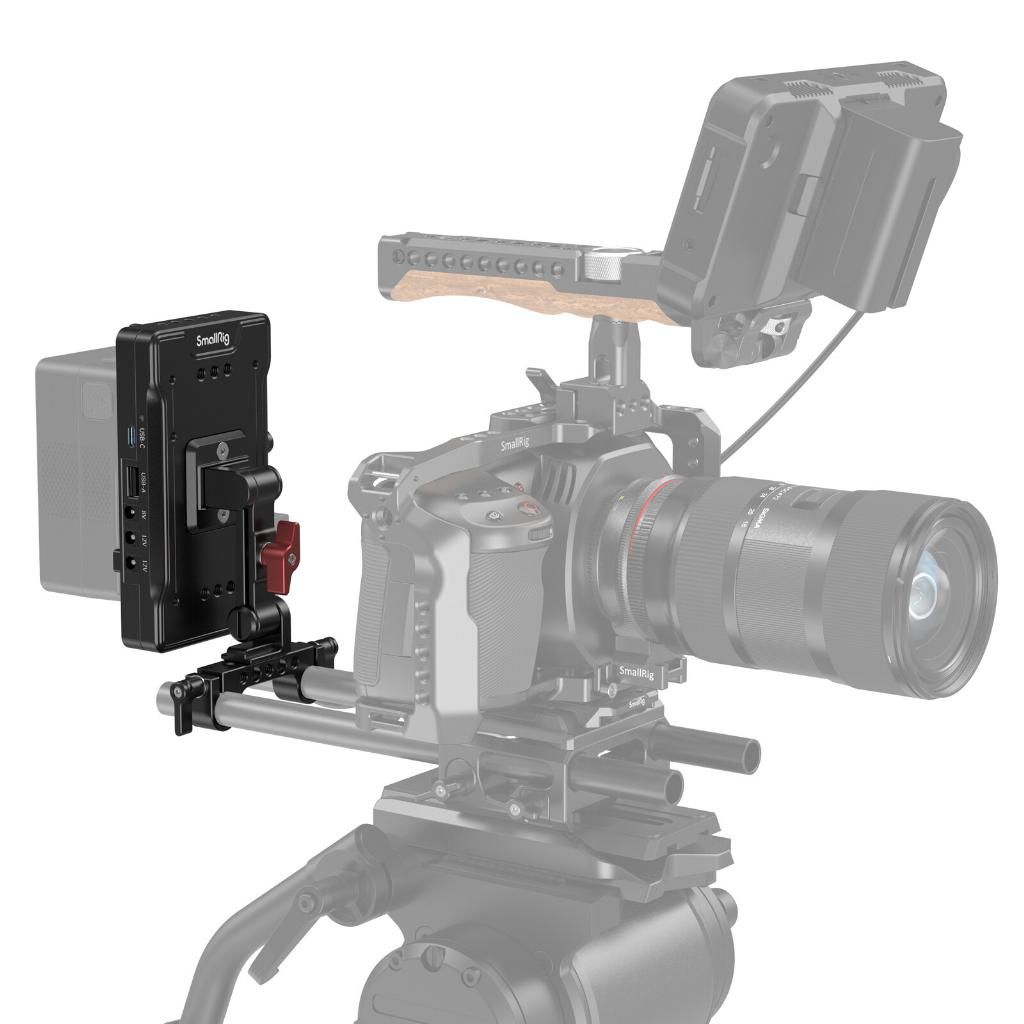

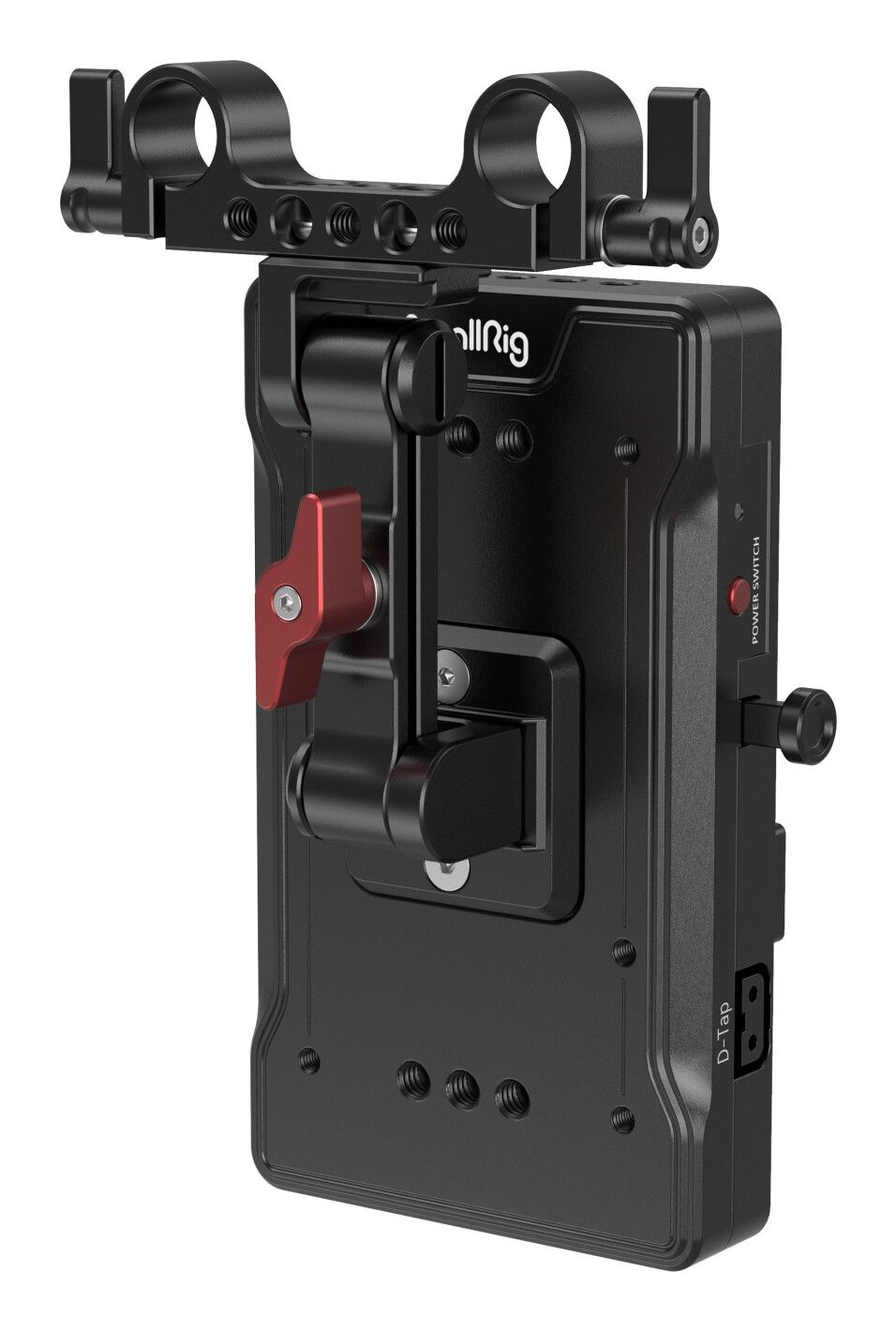

SmallRig Advanced V-Mount Battery Mount Plate with Adjustable Arm 3204B can quickly mount onto 15mm LWS rod system. This item features a standard V-mount, compatible with most V-mount batteries on the market, six 1/4"-20 threaded holes and ten M4 threaded holes on the back, five 1/4"-20 threaded holes on the top and bottom, which support dual rod clamp and many other accessories. It comes with a PD protocol compatible USB-C input / output (65W Max.) port and a QC protocol compatible USB-A output (36W Max.) port for fast charging/discharging; a D-Tap input / output (14.8V) port; and three DC output ports (DC5521 8V x 1 / DC5525 12V x 2). The power indicator light and charging/discharging indicator light indicate working status and fast / slow charging mode; the power on / off button can simultaneously control multiple ports. Besides, the aluminum alloy plate has comfortable texture, with wonderful heat dissipation performance and durability.

• manual pdf
