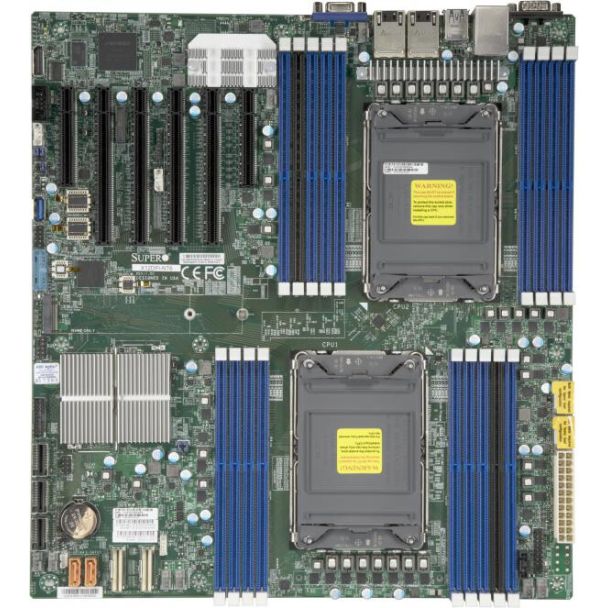

Supermicro MBD-X12DPI-N6-B motherboard Intel C621A LGA 4189 Extended ATX
GTIN: 0672042441594
Supermicro MBD-X12DPI-N6-B, Intel, LGA 4189, Intel® Xeon®, DDR4-SDRAM, 4 TB, DIMM
Supermicro motherboards support the latest generation Intel and AMD processors, memories and offer the most advanced technologies in the IT field – NVMe, M.2, 10GbE network ports. Thanks to their high scalability and a wide choice of form factors, the boards can fulfill the needs of even the most demanding customers. Supermicro offers the broadest selection of servers designed for industrial use, which is reflected in the overall quality of the boards. Materials that guarantee a long lifespan are used for manufacturing Supermicro motherboards, thanks to which a minimal failure rate is achieved. Supermicro motherboards go through a generational exchange approximately once every seven years, which guarantees long support by the manufacturer. Each Supermicro motherboard also allows free installation of specialized software for basic system monitoring.
The purchase of NBD warranty of your own choice is a matter of course, which minimizes service outages even in cases that cannot be predicted. Contact our sales department for more information.
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | MBD-X12DPI-N6-B |
| Ean | 0672042441594 |
| Product title | Supermicro MBD-X12DPI-N6-B motherboard Intel C621A LGA 4189 Extended ATX |
| Long Product Name | 3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s Intel® C621A Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz |
| Product specifications | ProcessorProcessor manufacturer* Intel Processor socket* LGA 4189 Compatible processor series* Intel® Xeon® Processor cores 40 MemorySupported memory types* DDR4-SDRAM Memory slots type DIMM Memory voltage 1.2 V ECC Yes Supported memory clock speeds 2666,2933,3200 MHz Maximum internal memory* 4 TB Storage controllersSupported storage drive interfaces* M.2, SATA RAID support Yes RAID levels 0, 1, 5, 10 GraphicsOn-board graphics card model Aspeed AST2600 Internal I/OUSB 3.2 Gen 1 (3.1 Gen 1) connectors* 3 Number of SATA III connectors* 14 TPM connector Yes Rear panel I/O portsUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity* 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity* 4 Ethernet LAN (RJ-45) ports* 2 VGA (D-Sub) ports quantity* 2 Rear panel I/O portsSerial ports quantity 2 NetworkEthernet LAN Yes Ethernet interface type Gigabit Ethernet LAN controller Intel® I350 FeaturesMotherboard chipset* Intel C621A PC health monitoring LED, Temperature, Voltage Component for* Server Motherboard form factor* Extended ATX Motherboard chipset family* Intel Expansion slotsPCI Express x8 (Gen 4.x) slots 2 PCI Express x16 (Gen 4.x) slots 4 Number of M.2 (M) slots 1 BIOSBIOS type* UEFI AMI Operational conditionsStorage temperature (T-T) -40 - 70 °C Operating temperature (T-T) 10 - 35 °C Operating relative humidity (H-H) 8 - 90% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 304.8 mm Depth 330.2 mm |
