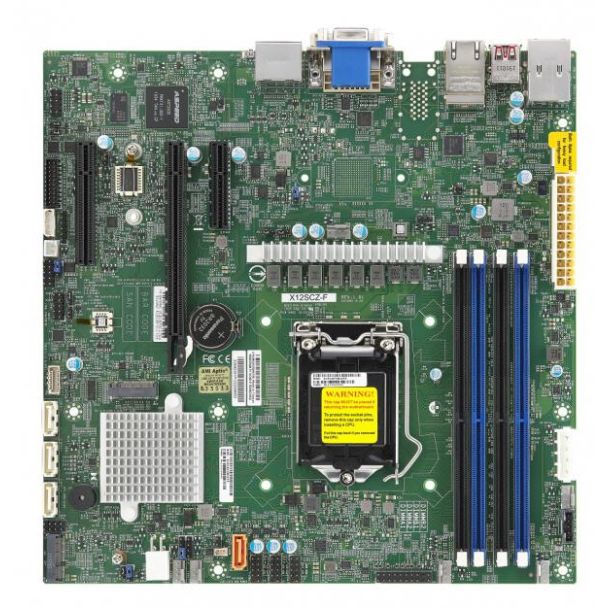

Supermicro MBD-X12SCZ-F-B motherboard Intel W480 LGA 1200 (Socket H5) micro ATX
GTIN: 0672042399086
In stock
SKU
SUP-MBD-X12SCZ-F-B
Special Price €468.25 €383.81 Regular Price €508.97
microATX, Socket LGA-1200, Up to 10 cores, AMI UEFI, Intel W480, 4 SATA3 (6Gbps), 2 RJ45
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | MBD-X12SCZ-F-B |
| Ean | 0672042399086 |
| Product title | Supermicro MBD-X12SCZ-F-B motherboard Intel W480 LGA 1200 (Socket H5) micro ATX |
| Long Product Name | microATX, Socket LGA-1200, Up to 10 cores, AMI UEFI, Intel W480, 4 SATA3 (6Gbps), 2 RJ45 |
| Product specifications | ProcessorProcessor manufacturer* Intel Processor socket* LGA 1200 (Socket H5) Compatible processor series* Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Xeon® Processor number of cores supported 10 MemorySupported memory types* DDR4-SDRAM Number of memory slots* 4 Memory slots type DIMM Memory voltage 1.2 V ECC сompatibility ECC & Non-ECC Supported memory clock speeds 2133,2400,2666,2933 MHz Maximum internal memory* 128 GB Supported memory module capacities 4GB, 8GB, 16GB, 32GB Storage controllersRAID support Yes RAID levels 0, 1, 5, 10 Internal I/OUSB 2.0 connectors* 6 USB 3.2 Gen 2 (3.1 Gen 2) connectors* 2 Number of SATA III connectors* 4 ATX Power connector (24-pin) Yes Number of COM connectors 2 TPM connector Yes Rear panel I/O portsUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity* 4 Ethernet LAN (RJ-45) ports* 2 VGA (D-Sub) ports quantity* 1 DVI-D ports quantity* 1 DisplayPorts quantity 2 NetworkEthernet LAN Yes LAN controller Intel® I210-AT, Intel® I219-LM FeaturesMotherboard chipset* Intel W480 Audio chip Realtek ALC888S Component for* PC Motherboard form factor* micro ATX Motherboard chipset family* Intel Expansion slotsPCI Express x16 (Gen 3.x) slots 1 BIOSBIOS type* UEFI AMI ACPI version 6.1 System Management BIOS (SMBIOS) version 3.1 Operational conditionsStorage temperature (T-T) -40 - 85 °C Operating temperature (T-T) 0 - 60 °C Operating relative humidity (H-H) 10 - 85% Storage relative humidity (H-H) 5 - 95% Logistics dataHarmonized System (HS) code 84733020 Weight & dimensionsWidth 243.8 mm Depth 243.8 mm Other featuresPCI Express x4 (Gen 3.x) slots 2 Number of DIMM slots 4 Number of processors supported 1 |
| Essential qualities |
|
| Processor manufacturer | Intel |
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Xeon® |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 128 GB |
| Number of memory slots | 4 |
| USB 2.0 connectors | 6 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| DVI-D ports quantity | 1 |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel W480 |
| BIOS type | UEFI AMI |
