Supermicro SSG-520P-ACTR12L server barebone Intel C621A LGA 4189 Rack (2U) Black
GTIN: 0672042443802
In stock
SKU
SUP-SSG-520P-ACTR12L
Special Price €2,805.63 €2,299.70 Regular Price €3,049.60

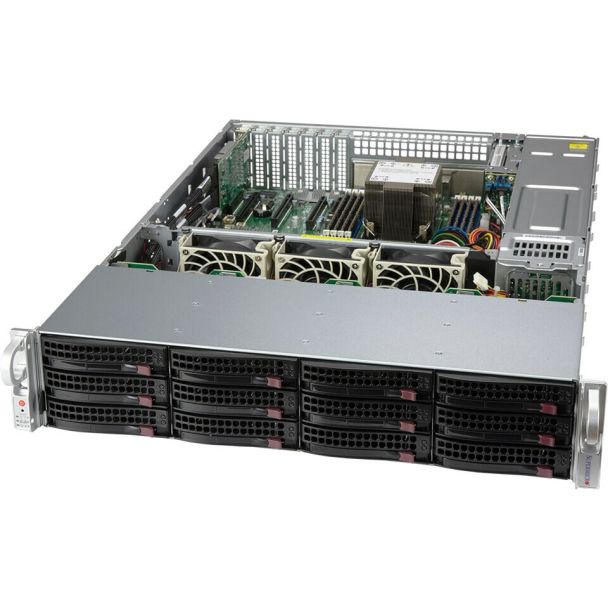

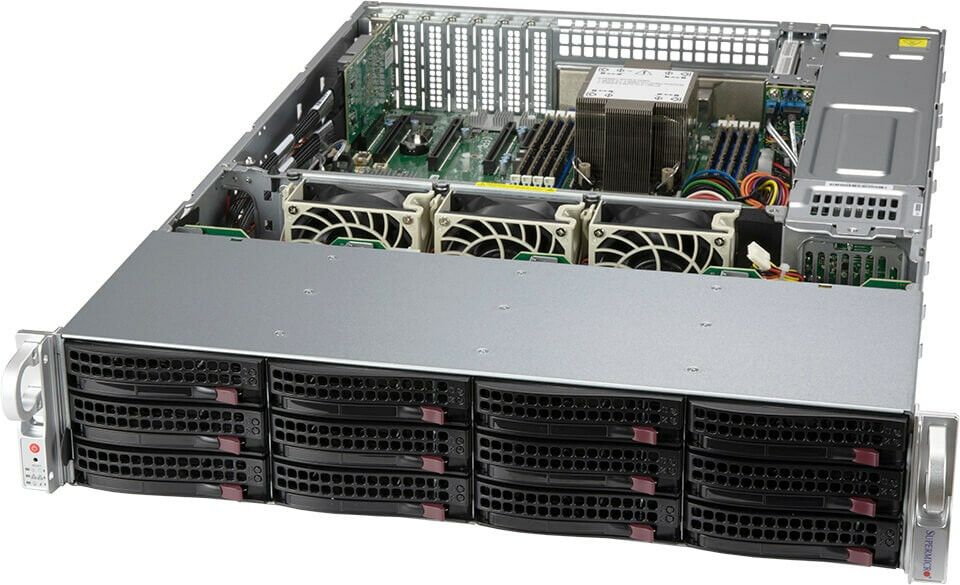

2U UP front-loading storage server with 12 direct-attached hot-swap 3.5" SAS/SATA bays and PCIe 4.0
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | SSG-520P-ACTR12L |
| Ean | 0672042443802 |
| Chassis type | Rack (2U) |
| Product title | Supermicro SSG-520P-ACTR12L server barebone Intel C621A LGA 4189 Rack (2U) Black |
| Long Product Name | 2U UP front-loading storage server with 12 direct-attached hot-swap 3.5" SAS/SATA bays and PCIe 4.0 |
| Product specifications | ProcessorMotherboard chipset* Intel C621A Processor socket* LGA 4189 Processor manufacturer Intel Processor family Intel® Xeon® Scalable Processor generation 3rd Generation Intel® Xeon® Scalable Maximum cache 60 MB MemoryNumber of DIMM slots* 8 Supported memory types* DDR4-SDRAM Maximum internal memory 2 TB Memory voltage 1.2 V ECC Yes StorageNumber of storage drives supported* 12 Hot-swap HDD bays* Yes Number of 3.5" bays 12 Supported storage drive types HDD & SSD Supported storage drive interfaces Serial Attached SCSI (SAS)-3, M.2, Serial ATA III RAID levels 0, 1, 5, 10 NetworkEthernet LAN Yes Ethernet interface type Gigabit Ethernet Ethernet LAN data rates 1000 Mbit/s Ports & interfacesUSB 2.0 ports quantity* 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3 Internal USB 2.0 ports quantity 2 Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity 2 Ethernet LAN (RJ-45) ports* 3 IPMI LAN (RJ-45) port Yes VGA (D-Sub) ports quantity 1 COM ports quantity 1 Expansion slotsPCI Express slots version 4.0 PCI Express x8 (Gen 4.x) slots 2 PCI Express x16 (Gen 4.x) slots 2 FeaturesPC health monitoring CPU, Fan, Temperature Trusted Platform Module (TPM) Yes FeaturesTrusted Platform Module (TPM) version 2.0 BIOSBIOS type AMI BIOS memory size 32 Mbit DesignChassis type* Rack (2U) Product colour Black LED indicators Yes On/off switch Yes Reset button Yes Cooling type Active Number of fans 3 fan(s) Fan diameter 8 cm PowerPower supply* 800 W Redundant power supply (RPS) support Yes Number of redundant power supplies installed 2 AC input voltage 100 - 240 V AC input frequency 50/60 Hz DC output current (+5 V) 4 A DC output current (+12 V) 66 A 80 PLUS certification 80 PLUS Titanium Operational conditionsOperating temperature (T-T) 10 - 35 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 8 - 90% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 437 mm Depth 650 mm Height 89 mm Weight 15.4 kg Power supply dimensions (WxDxH) 76 x 40 x 336 mm Packaging dataPackage width 673 mm Package depth 864 mm Package height 292 mm Package weight 26.3 kg |
| Essential qualities |
|
| Hot-swap HDD bays | Yes |
| Number of storage drives supported | 12 |
| Power supply | 800 W |

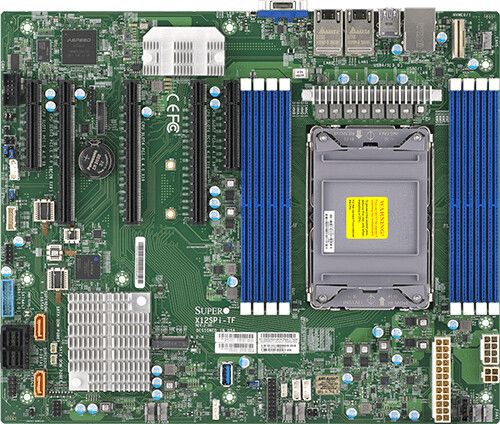

| Motherboard chipset | Intel C621A |
| Processor socket | LGA 4189 |
| Number of DIMM slots | 8 |
| Supported memory types | DDR4-SDRAM |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
