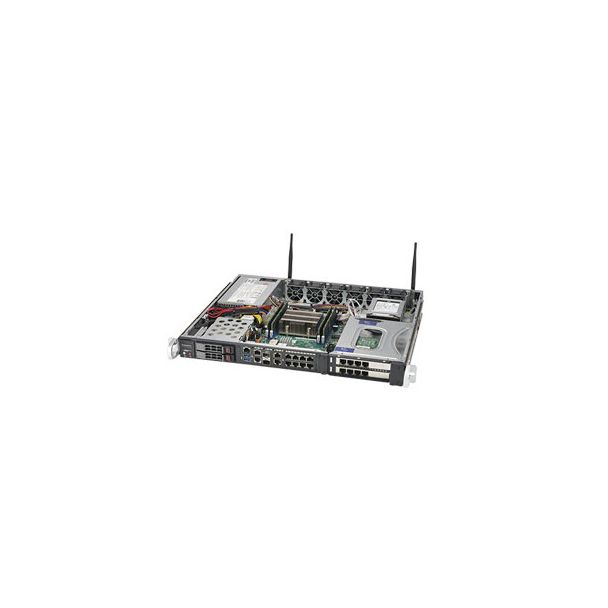

Supermicro SuperServer 1019D-16C-FHN13TP Intel SoC BGA 2518 Rack (1U) Black
GTIN: 0672042360208
In stock
SKU
SUP-SYS-1019D-16C-FHN13TP
Special Price €4,366.44 €3,579.05 Regular Price €4,746.13
SuperServer 1019D-16C-FHN13TP, Intel Xeon D-2183IT, 4x DIMM, 4x SATA III, RJ-45, SFP+, USB 3.0, 1U, 43x437x381 mm
These benefits combined with an excellent track record have earned Supermicro a reputation as a true leader in the high-end server/storage industry. Supermicro provides the most outstanding product line in the industry, ranging from single Atom™ and dual Xeon® to quad Xeon® MP systems. Their proven high level of quality and performance has made SuperServers the platform of choice for HPC, enterprise, cloud, data center, hyperscale, embedded, and business-critical, front-end server applications.
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | SYS-1019D-16C-FHN13TP |
| Ean | 0672042360208 |
| Chassis type | Rack (1U) |
| Product title | Supermicro SuperServer 1019D-16C-FHN13TP Intel SoC BGA 2518 Rack (1U) Black |
| Long Product Name | SuperServer 1019D-16C-FHN13TP, Intel Xeon D-2183IT, 4x DIMM, 4x SATA III, RJ-45, SFP+, USB 3.0, 1U, 43x437x381 mm |
| Product specifications | ProcessorBuilt-in processor* Yes Motherboard chipset* Intel SoC Processor socket* BGA 2518 Processor family Intel® Xeon® Processor model D-2183IT Number of processors supported* 1 Compatible processor series Intel® Xeon® MemoryNumber of DIMM slots* 4 Supported memory types* DDR4-SDRAM Supported DIMM module capacities 128GB, 16GB, 32GB, 64GB Maximum internal memory 512 GB Maximum RDIMM memory 256 GB Supported RDIMM clock speeds 2133,2400,2666 MHz ECC Yes StorageNumber of storage drives supported* 2 Hot-swap HDD bays* Yes Number of 2.5" bays 2 Storage drive sizes supported 2.5" Supported storage drive interfaces Serial ATA III GraphicsOn-board graphics card model Aspeed AST2500 NetworkEthernet LAN Yes Ethernet interface type 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Ethernet LAN data rates 10,100,1000,10000 Mbit/s LAN controller Intel I210, Intel® I350-AM4, Intel® X557 Ports & interfacesUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 Ethernet LAN (RJ-45) ports* 11 IPMI LAN (RJ-45) port Yes Number of SATA III connectors 4 Expansion slotsPCI Express x16 (Gen 3.x) slots 2 Number of M.2 (M) slots 1 Technical detailsCompliance certificates RoHS Logistics dataHarmonized System (HS) code 84714100 BIOSBIOS type AMI BIOS memory size 128 Mbit DesignChassis type* Rack (1U) Product colour Black LED indicators HDD, Network, Power, System On/off switch Yes Reset button Yes Number of fans 4 fan(s) Fan diameter 4 cm PowerPower supply* 500 W AC input voltage 100 - 240 V AC input frequency 50 - 60 Hz DC output current (+5 V) 15 A DC output current (+12 V) 41 A 80 PLUS certification 80 PLUS Platinum Operational conditionsOperating temperature (T-T) 10 - 40 °C Storage temperature (T-T) -40 - 70 °C Operating relative humidity (H-H) 8 - 90% Storage relative humidity (H-H) 5 - 95% Weight & dimensionsWidth 437 mm Depth 381 mm Height 43 mm Weight 6.35 kg Packaging dataPackage weight 11.3 kg |
| Essential qualities |
|
| Hot-swap HDD bays | Yes |
| Number of storage drives supported | 2 |
| Power supply | 500 W |
| Built-in processor | Yes |
| Motherboard chipset | Intel SoC |
| Processor socket | BGA 2518 |
| Number of processors supported | 1 |
| Number of DIMM slots | 4 |
| Supported memory types | DDR4-SDRAM |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 11 |
