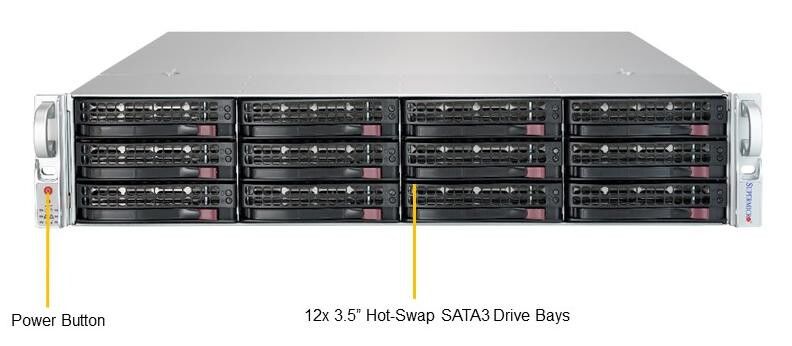

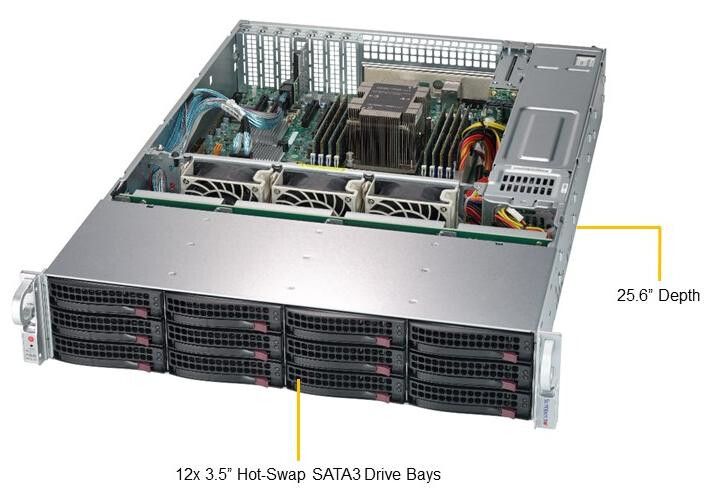

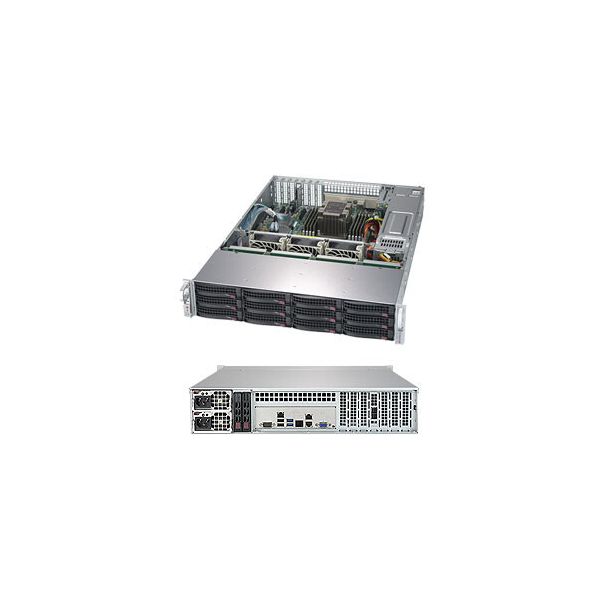

Supermicro SuperStorage Server 5029P-E1CTR12L Intel C622 LGA 3647 (Socket P) Rack (2U) Black
GTIN: 0672042290727
Socket P (LGA 3647), 8x DIMM DDR4, Intel C622, 10x SATAIII, 2x RJ-45, IPMI LAN, VGA, 2x USB 2.0, 2x USB 3.0, 2U, 437x648x89 mm
New generation X11 Supermicro SuperStorage systems support node based deployment strategies where CPU and HDD capacity scale together, or deployments can be expanded using JBODs for improved economy. Low-latency SSD applications, large media files requiring massive capacity and enterprise workloads looking for the highest performance will benefit from Supermicro's SAS 3.0 (12Gbps) support which provides low-latency and maximum data bandwidth. The Supermicro SuperStorage systems offer a no compromise storage platform with flexible market entry points from 2U, 3U, and 4U form factors using 2.5" or 3.5" SSDs/HDDs. SuperStorage servers support up to: 1TB 3DS ECC LRDIMM or 256GB ECC RDIMM memory, PCI-E 3.0 slots, NVMe, flexible networking options such as 10G SFP+, 10GBase-T LAN ports and IPMI 2.0 and KVM with dedicated LAN, and have support for the latest Intel Xeon Scalable processors.
Supermicro SuperStorage solutions present a number of key benefits to customers working with CPU Intensive Storage, Virtual Storage, Single Instance Storage and Data Deduplication, Data Replication and Business Continuity, and Virtual Tape Library customer environments.
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | SSG-5029P-E1CTR12L |
| Ean | 0672042290727 |
| Chassis type | Rack (2U) |
| Warranty | 3 year |
| Product title | Supermicro SuperStorage Server 5029P-E1CTR12L Intel C622 LGA 3647 (Socket P) Rack (2U) Black |
| Long Product Name | Socket P (LGA 3647), 8x DIMM DDR4, Intel C622, 10x SATAIII, 2x RJ-45, IPMI LAN, VGA, 2x USB 2.0, 2x USB 3.0, 2U, 437x648x89 mm |
| Product specifications | ProcessorBuilt-in processor* No Motherboard chipset* Intel C622 Processor socket* LGA 3647 (Socket P) Number of processors supported* 1 Compatible processor series Intel® Xeon® MemoryNumber of DIMM slots* 8 Supported memory types* DDR4-SDRAM Maximum internal memory 1 TB Maximum RDIMM memory 192 GB Supported RDIMM clock speeds 2133,2400,2666 MHz ECC Yes StorageHot-swap HDD bays* Yes Number of 3.5" bays 12 Storage drive sizes supported 3.5" Supported storage drive interfaces M.2, Serial ATA III RAID levels 0, 1, 5, 10 GraphicsOn-board graphics card model Aspeed AST2500 NetworkEthernet LAN Yes Ethernet interface type 10 Gigabit Ethernet Ethernet LAN data rates 10000 Mbit/s Copper ethernet cabling technology 10GBASE-T LAN controller Intel® X557, Intel® X722 Ports & interfacesUSB 2.0 ports quantity* 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 Ethernet LAN (RJ-45) ports* 2 IPMI LAN (RJ-45) port Yes VGA (D-Sub) ports quantity 1 Ports & interfacesSerial ports quantity 1 Number of SATA III connectors 10 Expansion slotsPCI Express slots version 2.0, 3.0 PCI Express x4 slots 1 PCI Express x8 slots 2 PCI Express x16 slots 1 FeaturesBackplanes support Yes Technical detailsCompliance certificates RoHS Logistics dataHarmonized System (HS) code 84714100 BIOSBIOS type UEFI AMI DesignChassis type* Rack (2U) Product colour Black LED indicators HDD, Heating, Network, Power, Power fail Number of fans 3 fan(s) Fan diameter 8 cm PowerPower supply* 800 W Redundant power supply (RPS) support Yes Number of redundant power supplies installed 2 Operational conditionsOperating temperature (T-T) 10 - 35 °C Storage temperature (T-T) -40 - 60 °C Operating relative humidity (H-H) 8 - 90% Storage relative humidity (H-H) 5 - 95% |
| Essential qualities |
|
| Hot-swap HDD bays | Yes |
| Power supply | 800 W |
| Built-in processor | No |
| Motherboard chipset | Intel C622 |
| Processor socket | LGA 3647 (Socket P) |
| Number of processors supported | 1 |
| Number of DIMM slots | 8 |
| Supported memory types | DDR4-SDRAM |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
