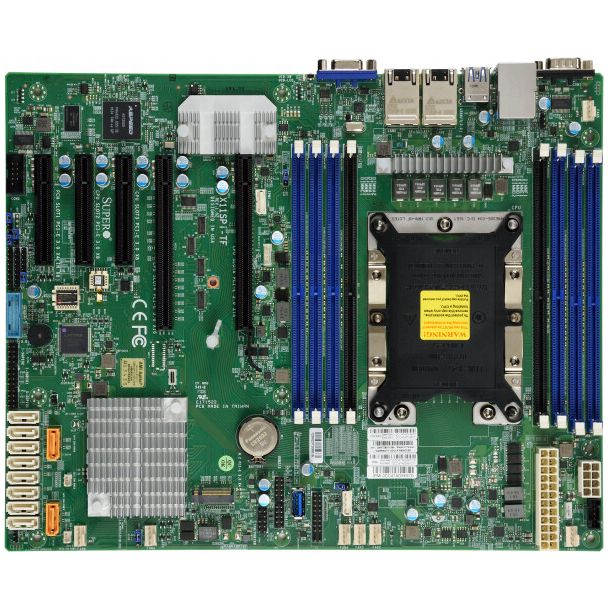

Supermicro X11SPI-TF ATX
GTIN: 4260387381055
X11SPi-TF - Intel Xeon, Intel C622, 10x SATA3 (6Gbps), Up to 1TB ECC 3DS LRDIMM, 2x 10GbE LAN
Supermicro motherboard advantages:
- Technologically-advanced Motherboard Designs Since 1993
- Consistent highest-quality Design, Components, and Production Expertise
- Extensive Range of x86 Serverboards Available
- Competitive Price/Performance
- High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
Standard Form Factors offer Feature - rich Support and application optimization
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.
| Product Condition | New |
|---|---|
| Manufacturer | Supermicro |
| manufacturer code | MBD-X11SPI-TF-B |
| Ean | 4260387381055 |
| Warranty | 3 year |
| Product title | Supermicro X11SPI-TF ATX |
| Long Product Name | X11SPi-TF - Intel Xeon, Intel C622, 10x SATA3 (6Gbps), Up to 1TB ECC 3DS LRDIMM, 2x 10GbE LAN |
| Product specifications | ProcessorProcessor manufacturer* Intel Processor number of cores supported 28 Processor thermal power (max) 205 W MemorySupported memory types* DDR4-SDRAM Memory voltage 1.2 V ECC сompatibility ECC Supported memory clock speeds 1600,1866,2133,2400,2666 MHz Maximum internal memory* 1.02 TB Maximum RDIMM memory 256 GB Storage controllersSupported storage drive interfaces* SATA III RAID support Yes RAID levels 0, 1, 5, 10 GraphicsOn-board graphics card model Aspeed AST2500 Internal I/OUSB 2.0 connectors* 4 USB 3.2 Gen 1 (3.1 Gen 1) connectors* 3 Serial port headers 1 Rear panel I/O portsUSB 2.0 ports quantity* 2 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity* 2 Ethernet LAN (RJ-45) ports* 2 VGA (D-Sub) ports quantity* 1 Serial ports quantity 1 NetworkEthernet LAN Yes Ethernet interface type Gigabit Ethernet Wi-Fi* No FeaturesComponent for* Server Motherboard form factor* ATX Expansion slotsPCI Express x8 (Gen 3.x) slots 2 PCI Express x16 (Gen 3.x) slots 2 BIOSBIOS type* UEFI AMI ACPI version 6.0 Operational conditionsStorage temperature (T-T) -40 - 70 °C Operating temperature (T-T) 0 - 50 °C Operating relative humidity (H-H) 8 - 90% Storage relative humidity (H-H) 5 - 95% Logistics dataHarmonized System (HS) code 84733020 Weight & dimensionsWidth 304.8 mm Depth 243.8 mm Packaging contentBundled software Intel® Node Manager, IPMI2.0, KVM w/ dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog Other featuresPCI Express x4 (Gen 3.x) slots 1 Supported DIMM module capacities 4GB, 8GB, 16GB, 32GB, 64GB, 128MB Supported LRDIMM module capacity 32GB, 64GB Maximum LRDIMM memory 512 GB Supported RDIMM module capacity 4GB, 8GB, 16GB, 32GB Number of DIMM slots 8 Number of processors supported 1 |
| Essential qualities |
|
| Processor manufacturer | Intel |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 1.02 TB |
| Supported storage drive interfaces | SATA III |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | No |
| Motherboard form factor | ATX |
| Component for | Server |
| BIOS type | UEFI AMI |
